Quick couplings for ISO containers

Chemically resistant quick coupling made of PCTFE for connection to ISO container/tanker.

Sizes: DN40 for liquid transfer and DN25 for ventilation
No metallic parts
Qualified for high-purity chemicals
Optimal sealing on both sides
Quick and simple coupling
Safe and clean handling of chemicals in a sealed system (chemicals and N2)
Connection flange in various standards (e.g. ANSI, DIN. JIS) or NPT thread, other types on request
Highly elastic, permanently elastic valve spring made of fluoropolymer
Beading strip for simple, manual handling

Options:

Break-off protection with wire cable - automatically uncouples if tension develops on the hose.
Connection for sampling

Accessories:

Protective caps for male and female part

Applications

Dispensing from tanker

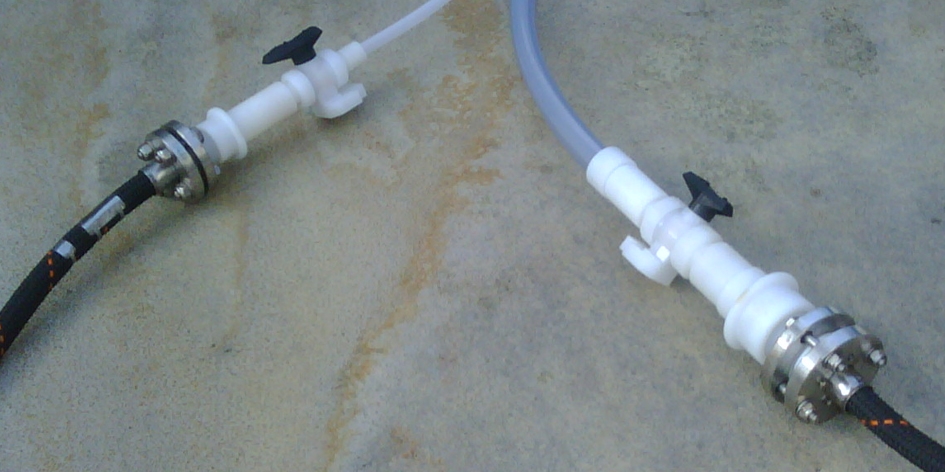

Our quick couplings as a connection between tanker lines (black) and on-site hoses. On the left is the line for N2, in which a quick coupling in DN25 is installed. On the right is a quick coupling DN40 installed by which H2SO4 is removed. Both couplings are connected on the tanker side via a stainless steel flange and on the system side via a ball valve connection.
