Options Dispense and Fill Heads

Fill Head with Mixing Nozzle

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers

Configure it now!

Features:

  • Optimum mixing results in the shortest time possible due to horizontal nozzles*
  • Also suitable for suspensions like slurries or lime water
  • No moving parts – no generation of particles
  • Mixing in a closed loop

* customized nozzles upon request

Available in product lines

QC2
G-Series



Flow rate (max)

25-50 l/min
Product line QC2

100-150 l/min

Product line G-Series

Valves

Check Valve
self-closing made from fluoropolymer

Turncock (QC2)
manual

Ball Valve (G-Series)
manuell


Available Materials



High purity
HDPE
PVDF
PFA

Elec. conductive

PP
PVDF
PFA

Gaskets

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM



Liquid-Connection

Vertical oder horizontal
Flare 3/8", 1/2", 3/4", 1"
Tri-Clamp
FNPT / MNPT
BSP
Hose connector
Camlock

Vent-Connection

Vertical
FNPT3/8"
Flare 1/4", 3/8", 1/2"

Technical Information
Datasheet Mixing Head

Please visit our download center for further downloads and other languages. Resources > Downloads.

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

check resistance

This might also interest you

Mixing nozzles

Mixing nozzles

Using mixing nozzles on recirculation dip tubes, suspensions such as slurries can be optimally prepared below the liquid level.

learn more →
Ready-to-use complete system

Ready-to-use complete systems

The stationary and ready-to-use dispensing station allows maximum safety and flexibility.
Designed for safe and efficient dispensing of chemicals - the perfect addition for the QC-System.

learn more →
Mobile systems

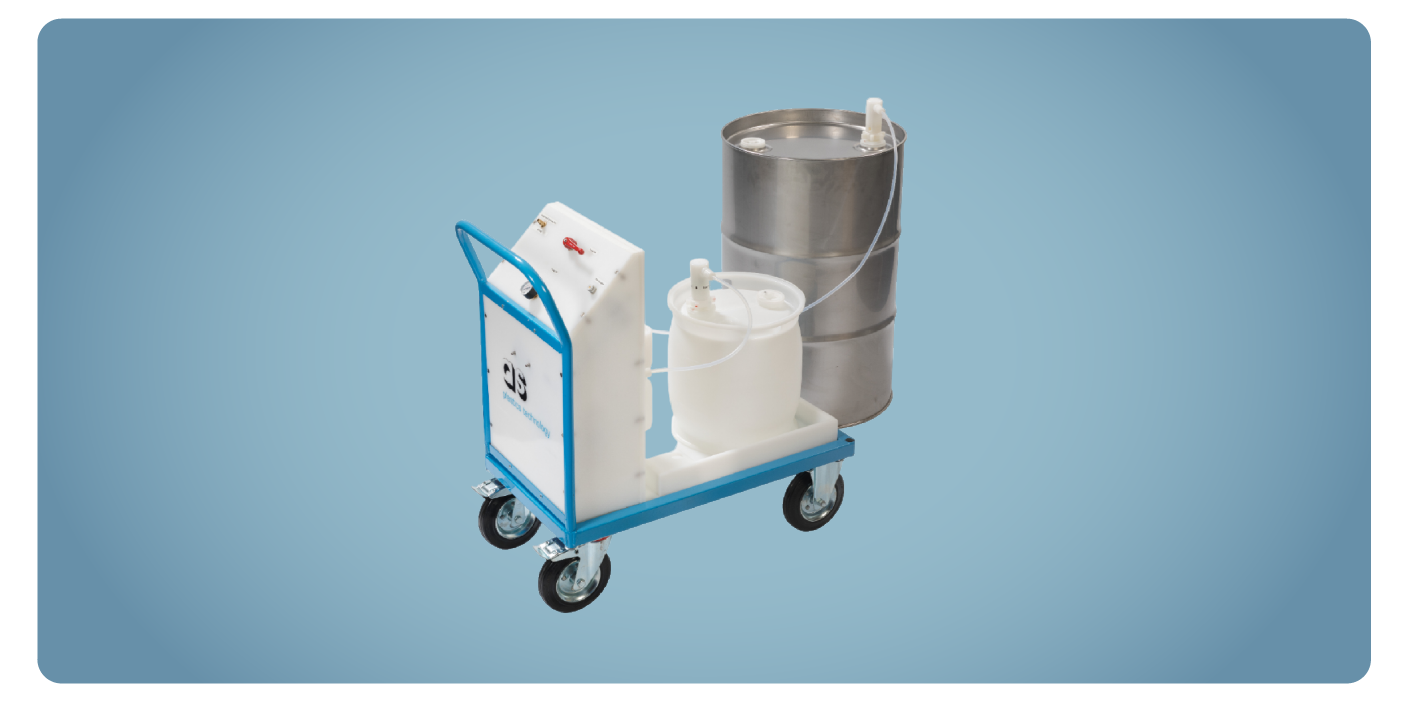

Mobile systems

Mobile supply or transfer filling stations incl. pump, hoses, control system and the QC-System. The following versions of the mobile systems are available: Supply Trolley: Customis
learn more →
Docking station

Docking stations

Safe and reliable storage unit for Dispense and Fill Heads whilst changing containers.

learn more →
Level measurement

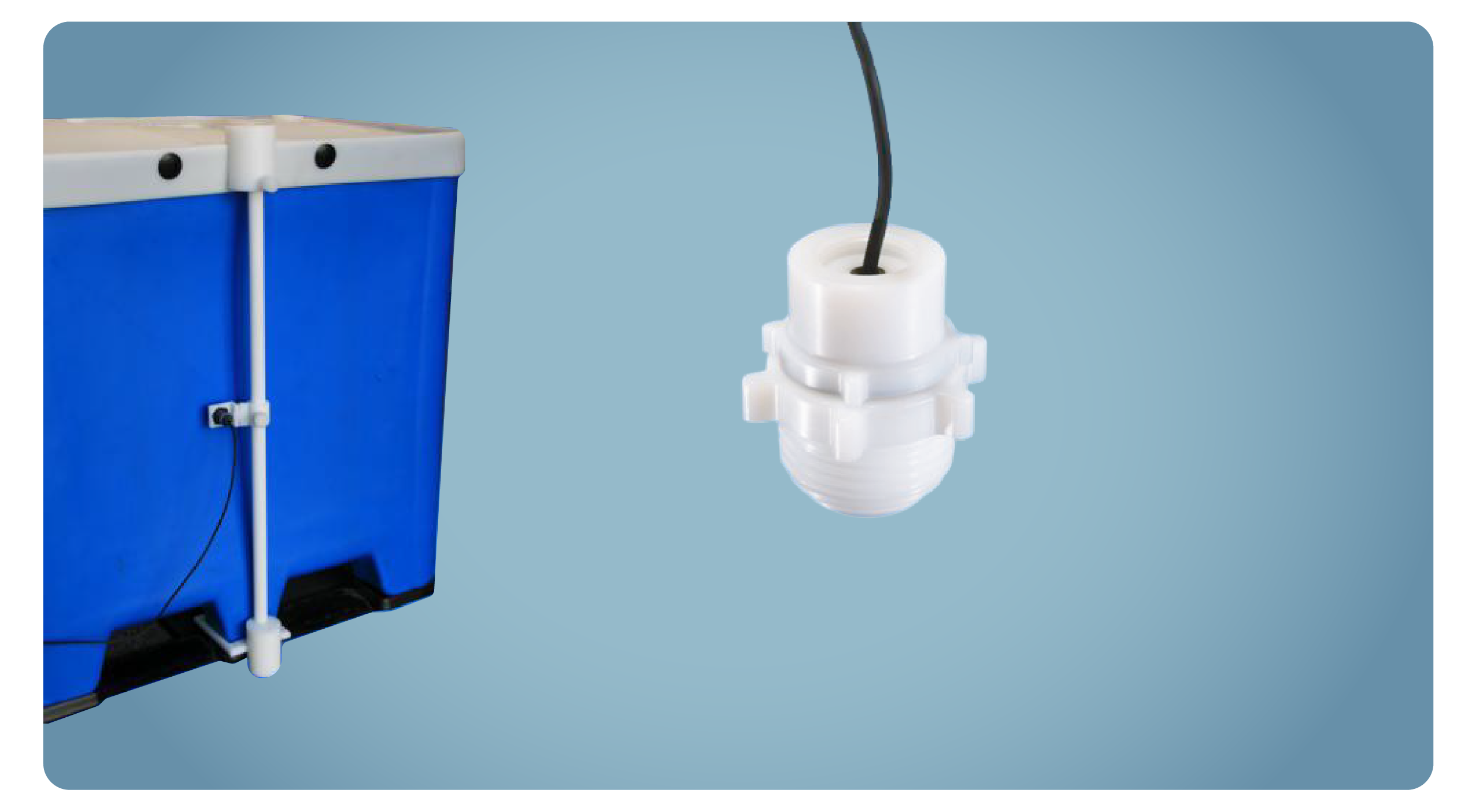

Level measurement and overfill protection
