Options Dispense and Fill Heads

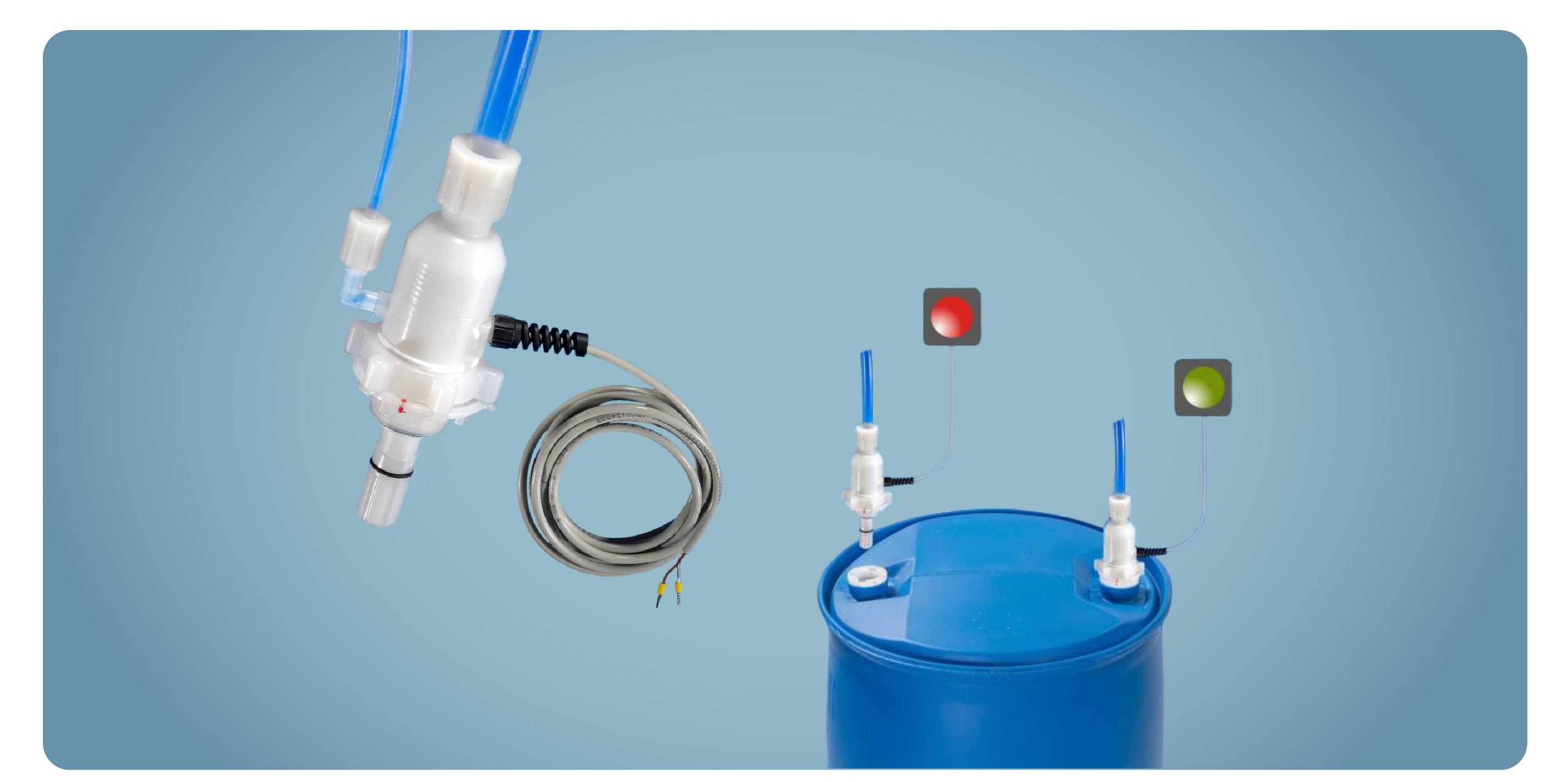

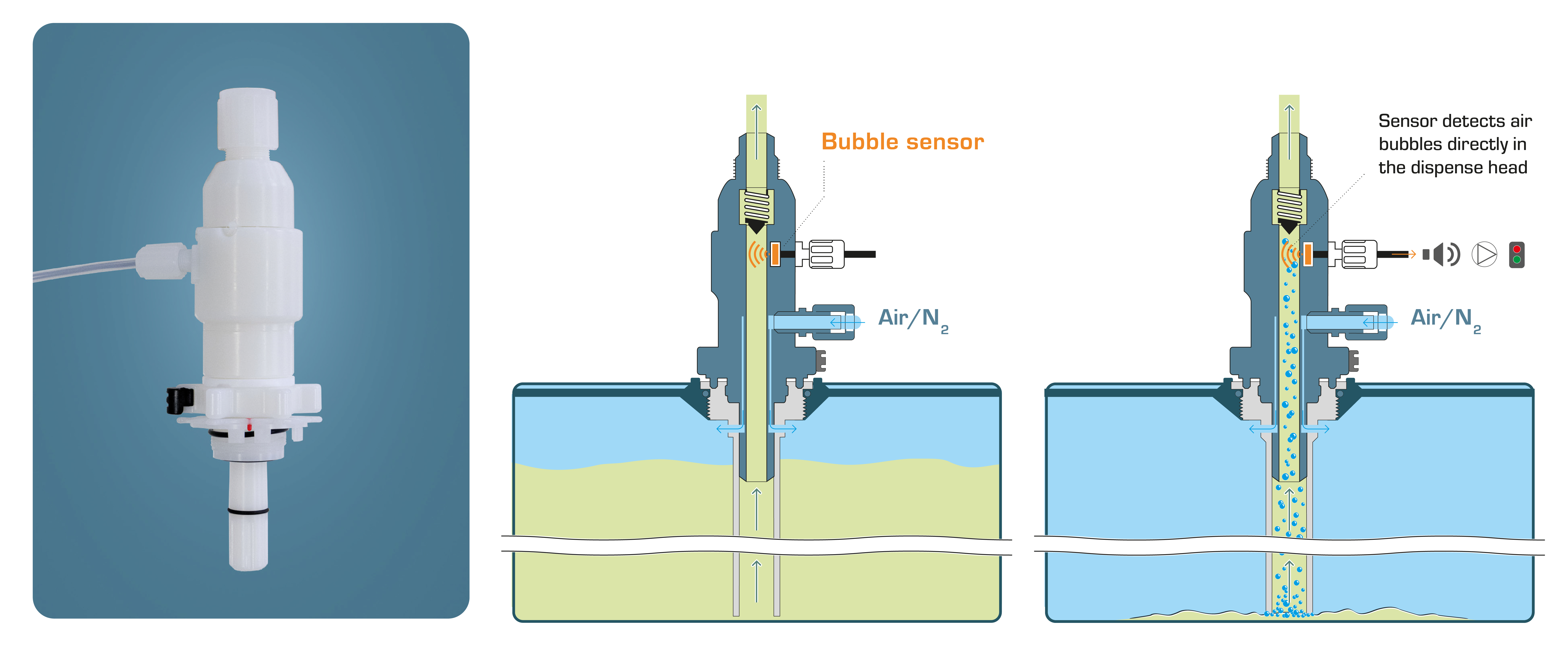

Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation.

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube.

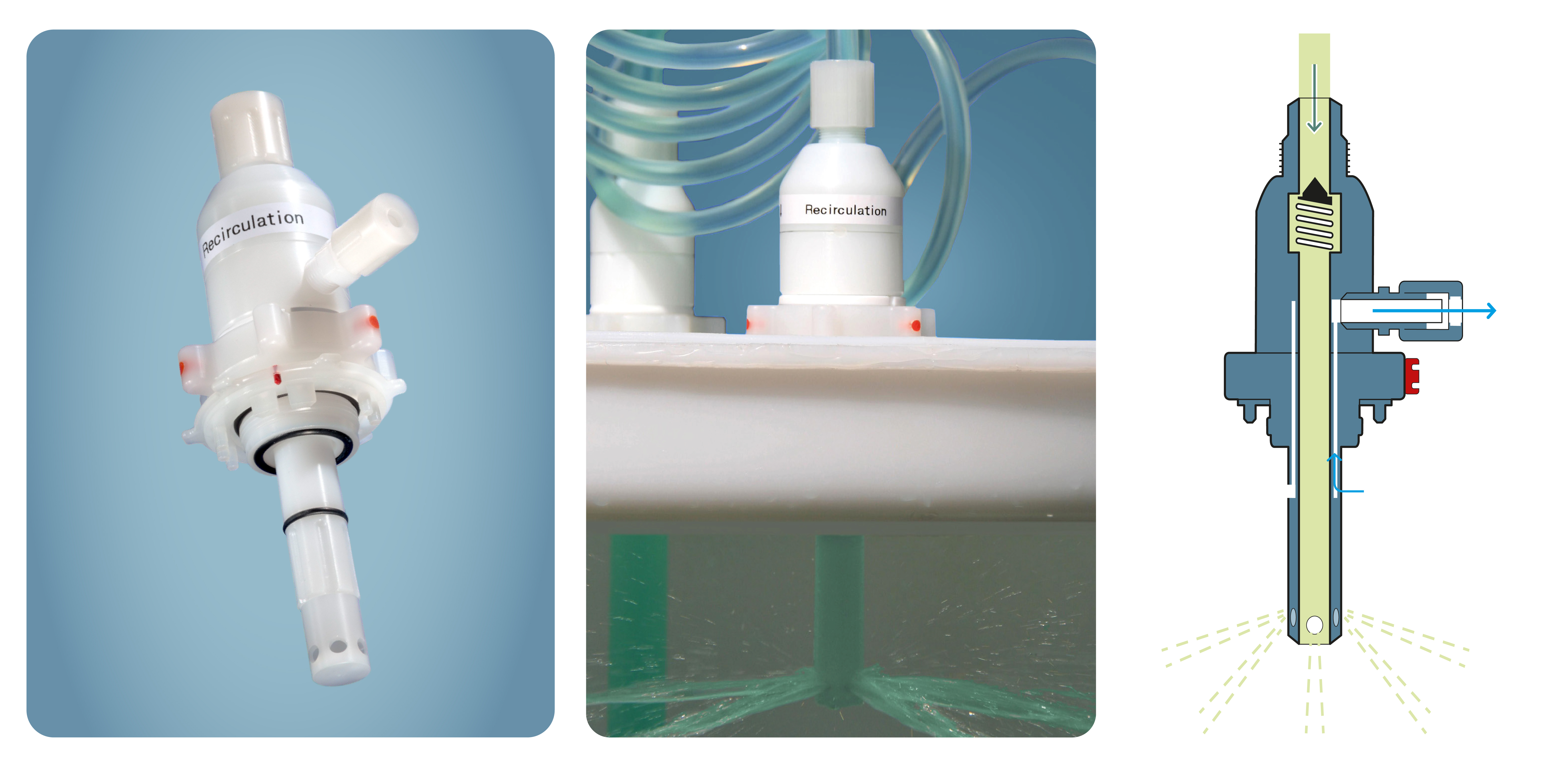

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers.

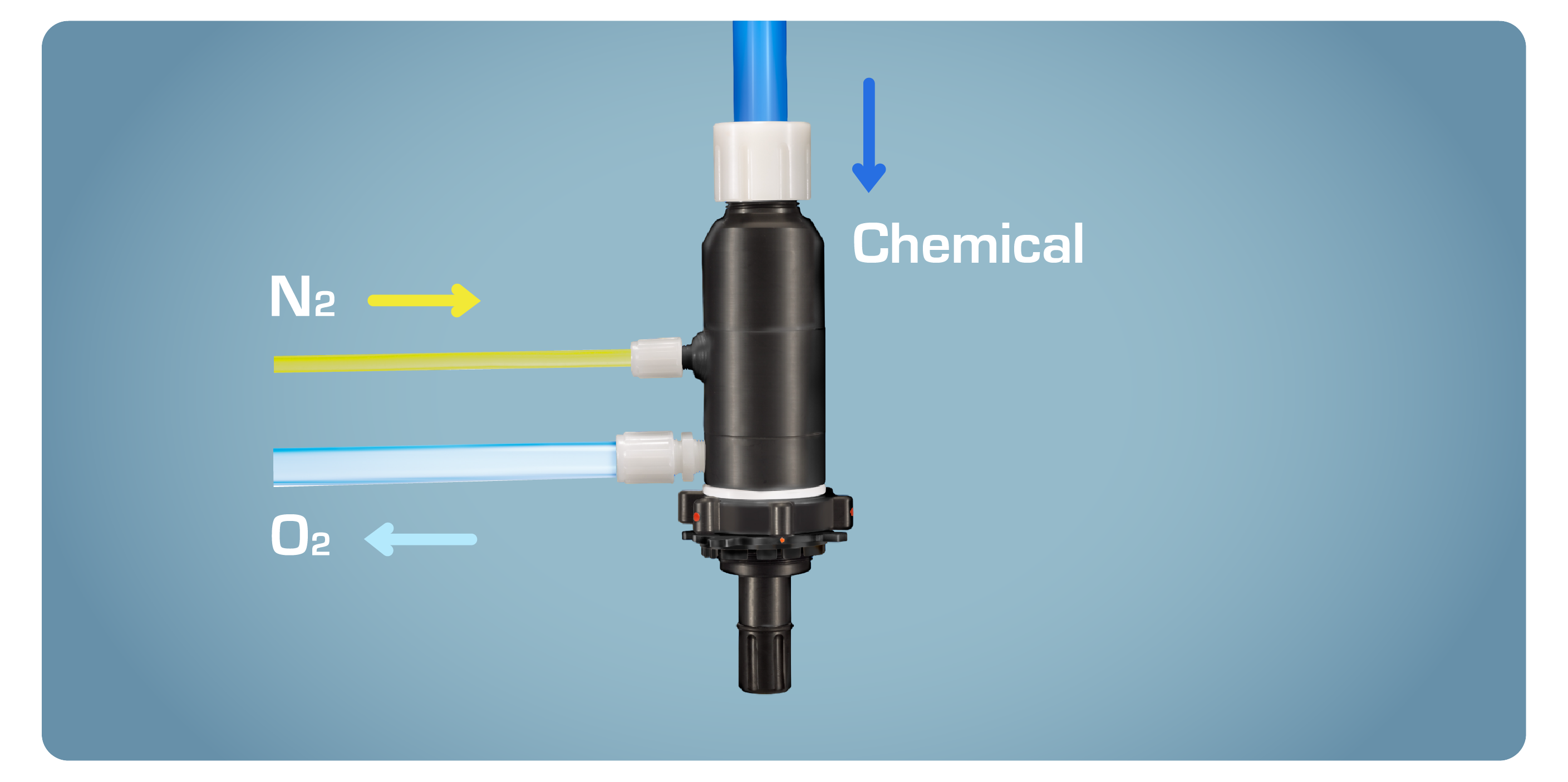

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop.

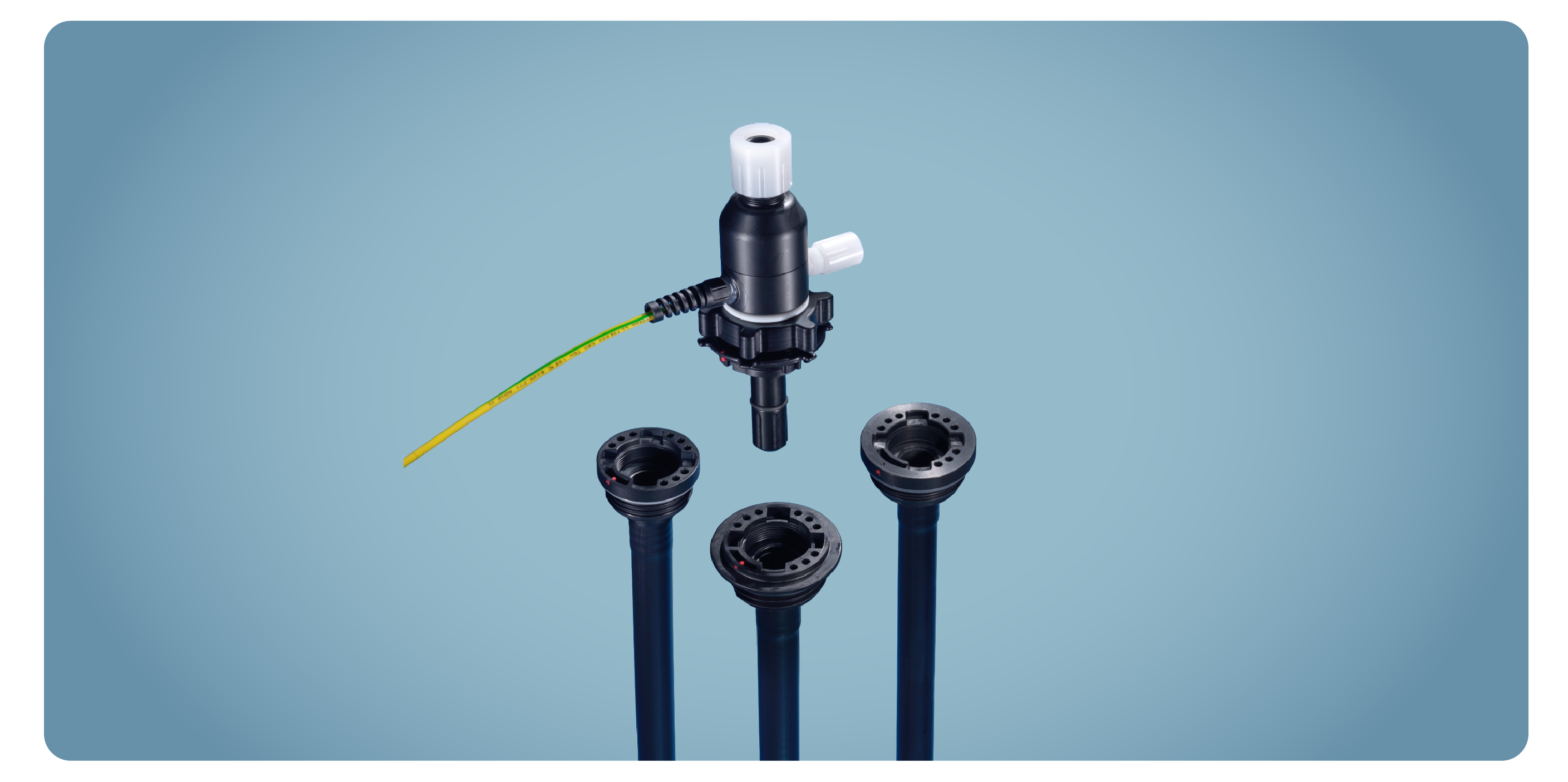

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments.

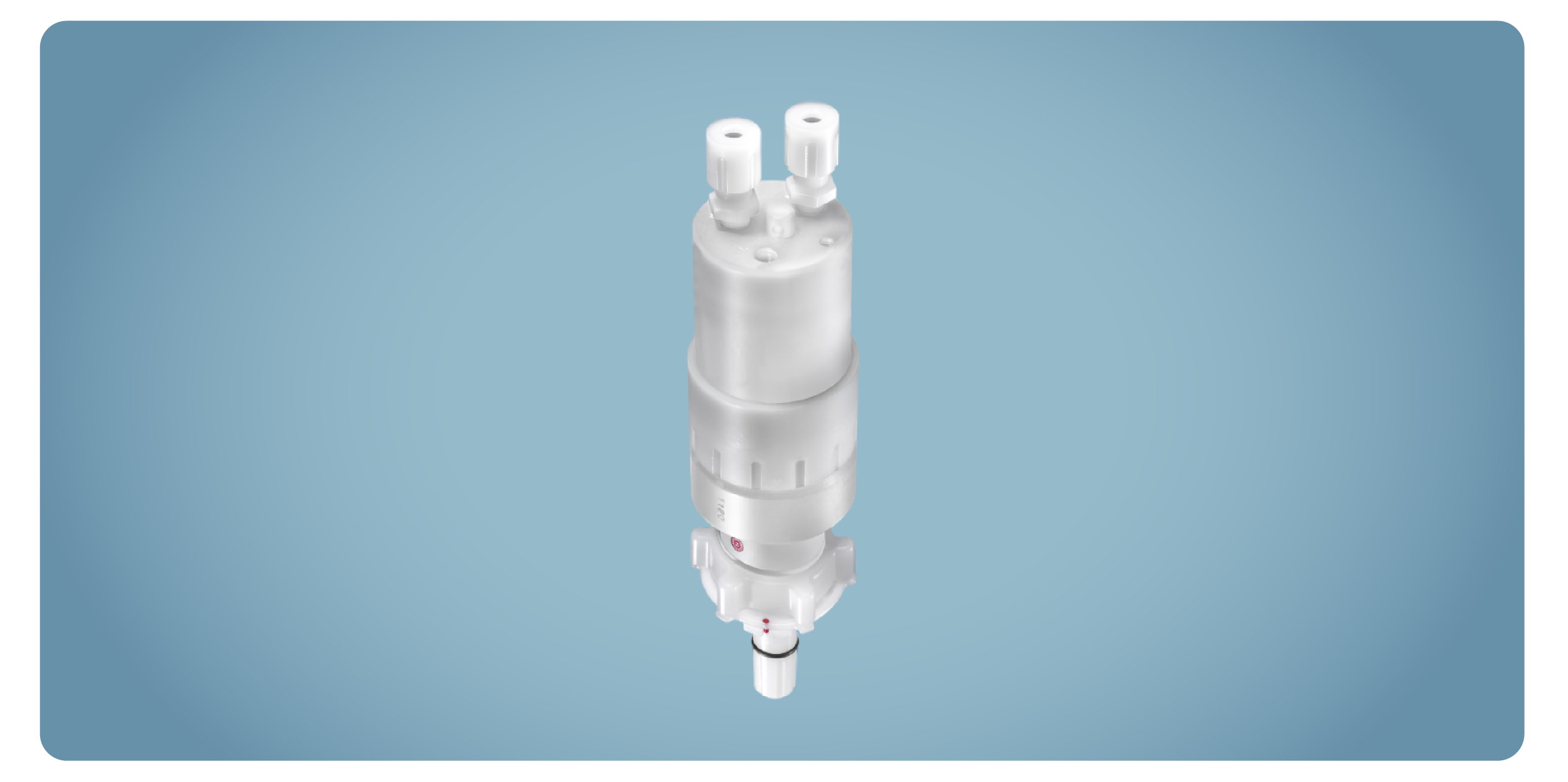

The QC-M Dispense Heads with integrated air driven membrane pump are the perfect solution if it is not possible to install a stationary pump or if you have to dispense at different stations.

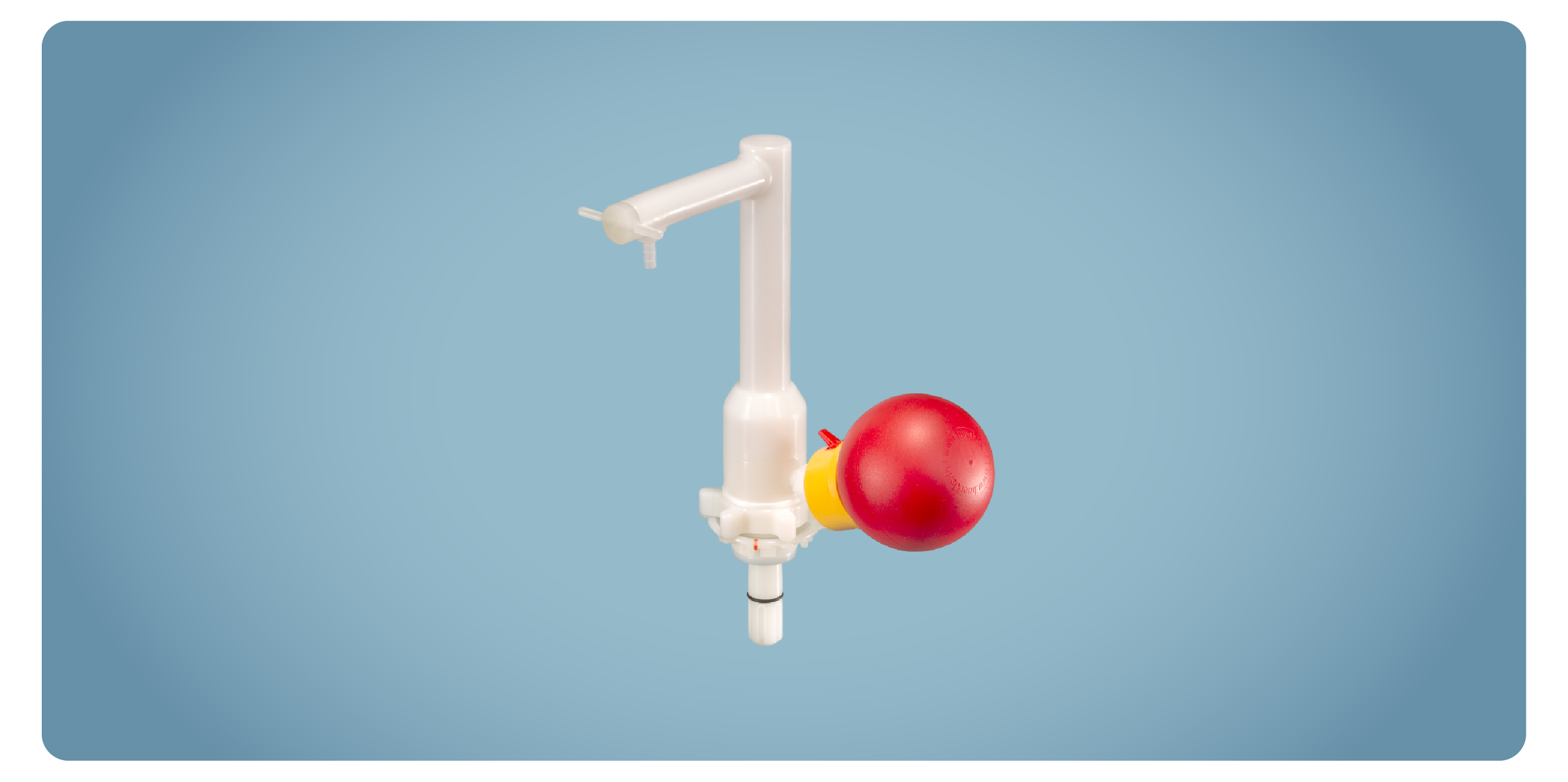

Dispense Heads with hand or foot pump are particularly suitable for easily and safely dispensing small quantities.

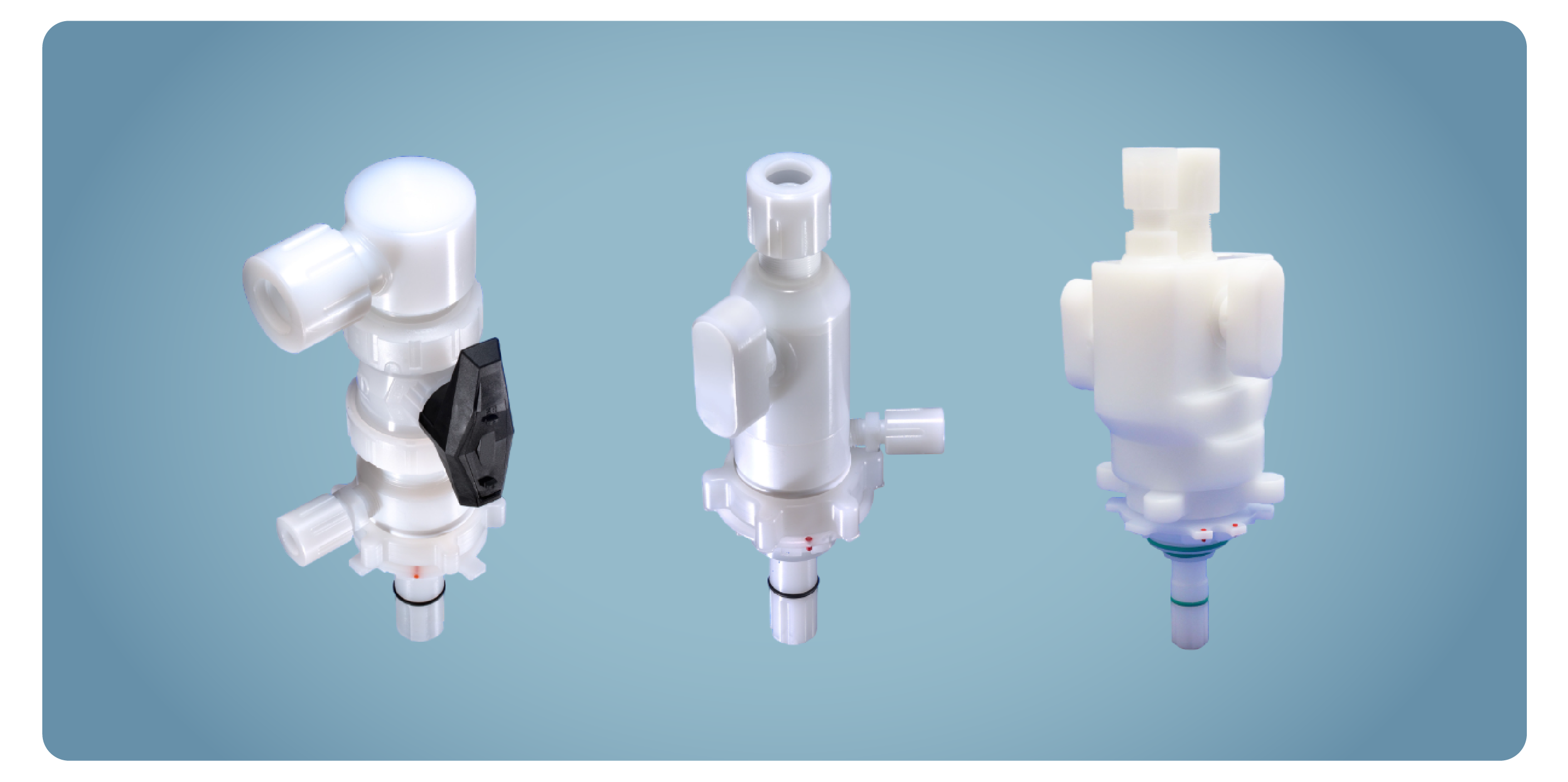

Manual turncocks in the Dispense and Fill Heads enable a variety of applications:

• Higher flow rates
• No flow losses due to check valve
• Can be used in both flow directions
• Particularly suitable for:

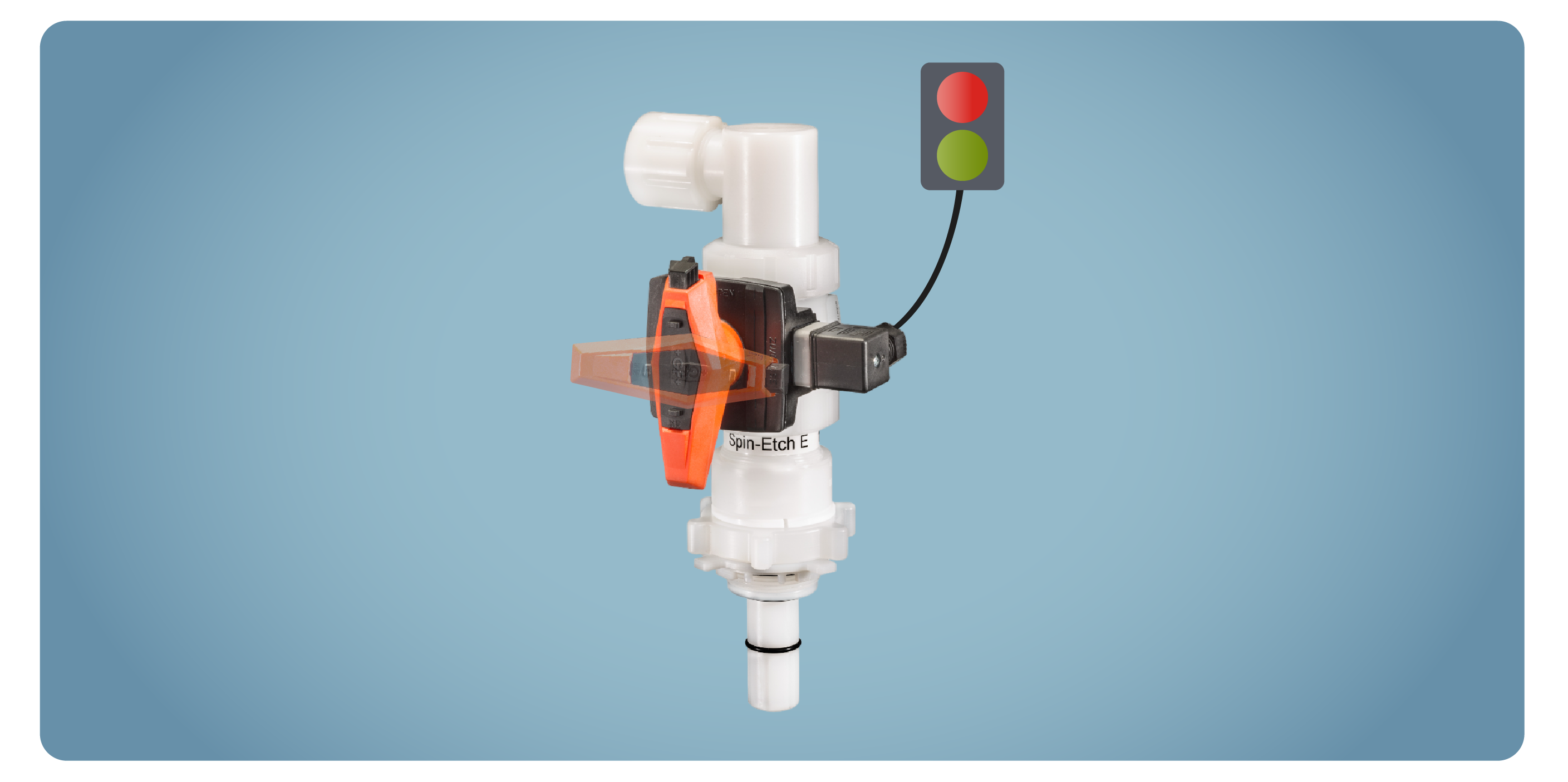

G-Series Dispense and Fill Heads with a ball valve can be optionally equipped with a multifunctional module, which allows signalling when the ball valve is in the correct position.

Pneumatic membrane valves in the Dispense and Fill Heads enable an automated activation.

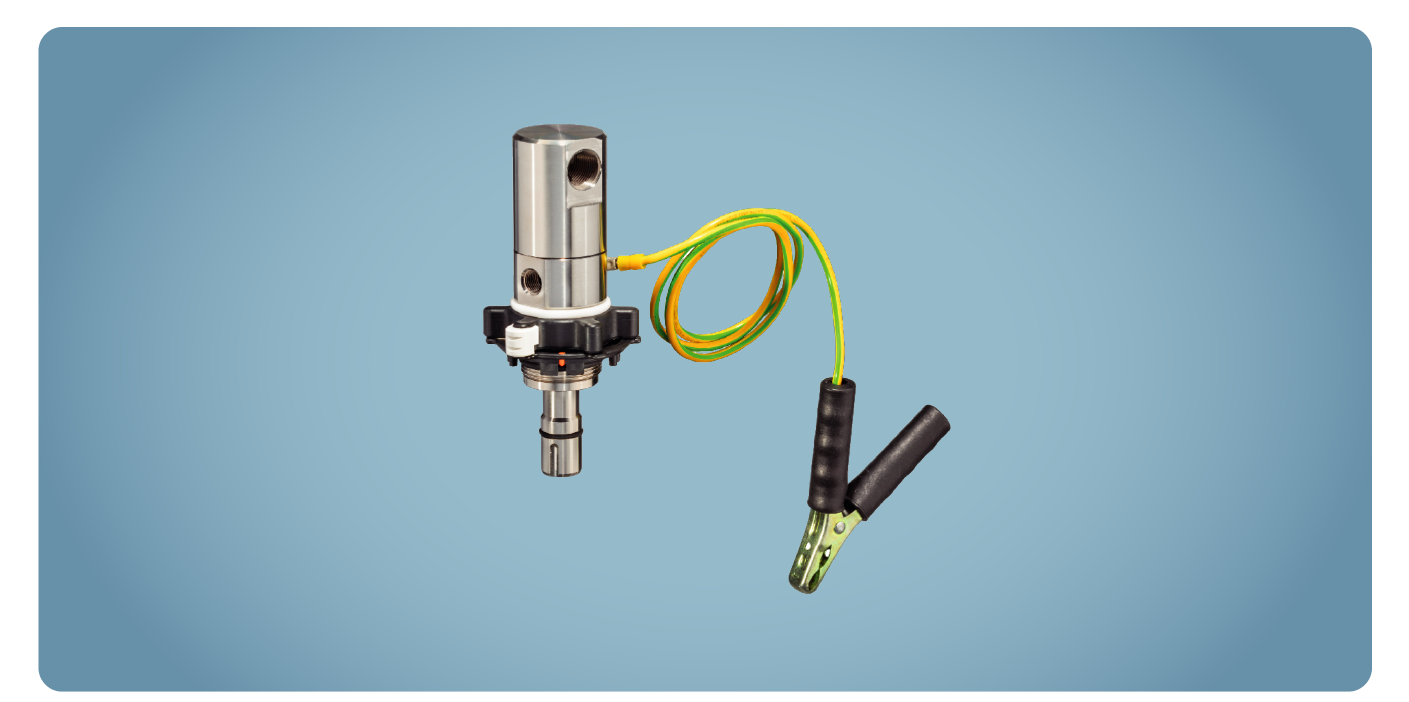

Specially developed for the pharmaceutical industry, our stainless steel Dispense Heads now also meet the regulations concerning FDA approved materials in explosion Areas.

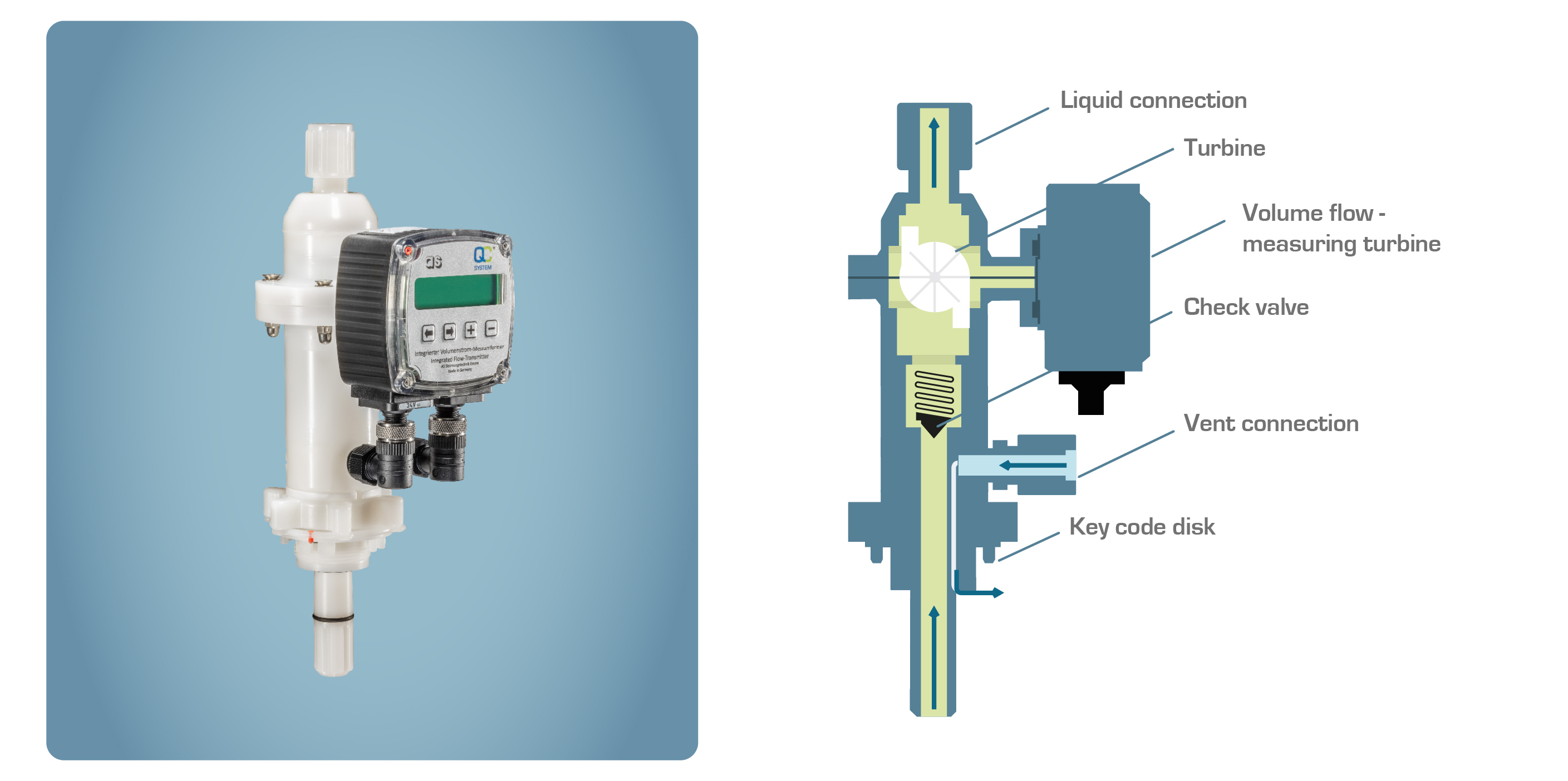

Offers identical features as our QC2 dispense heads with the addition of dosing and flow metering capabilities.
