Options Dispense and Fill Heads

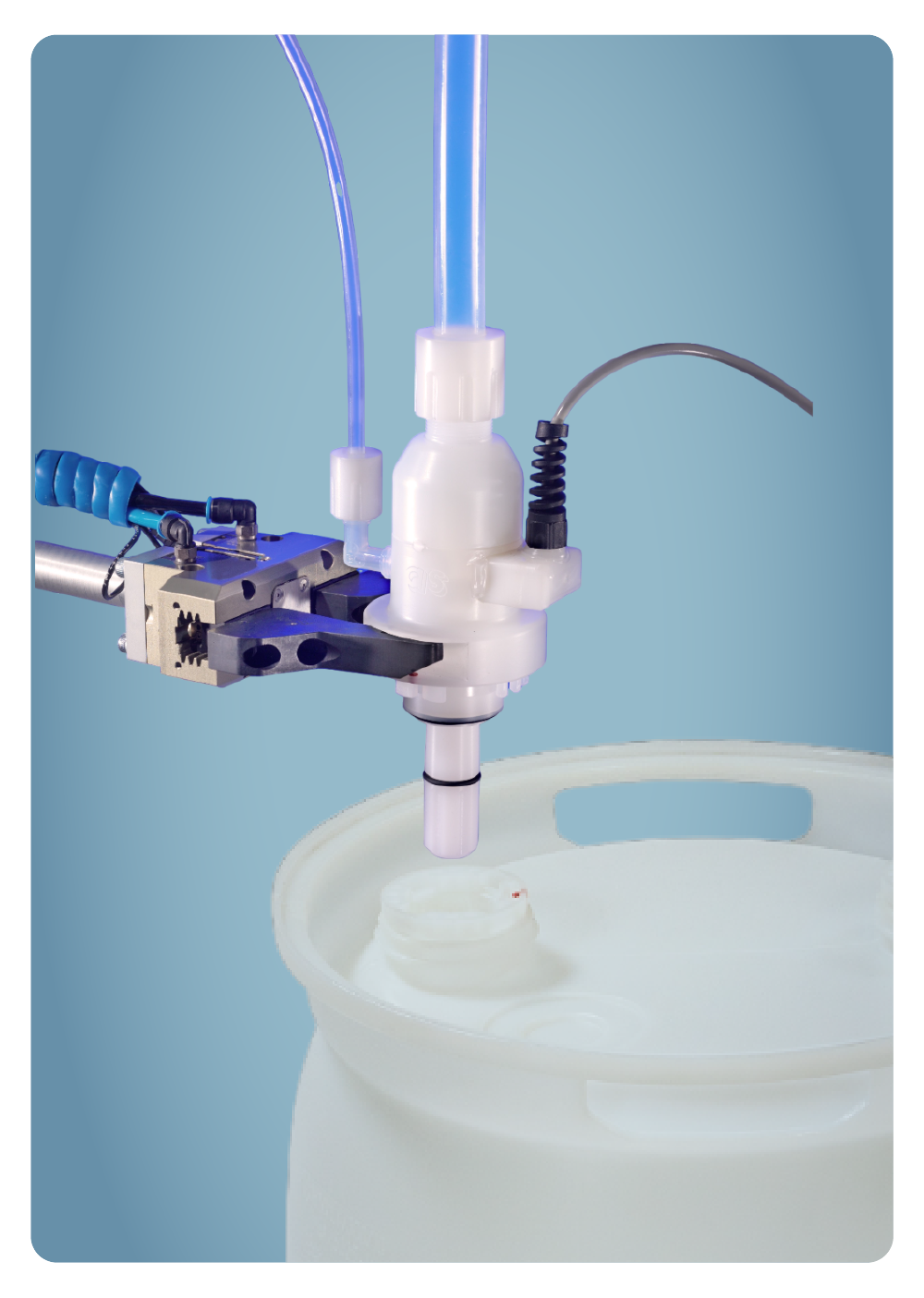

Fill and Dispense Heads with Limit Switch

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube.

Configure it now!

Features:

  • Flexible applications:
    • Signal of secure and tight connection after coupling with the dip tube.
    • Process control using switching
      operation.
  • No wetted metal parts.
  • No complex photo-electric barriers needed.
Available in product linesQC2
G-Series


Flow rate (max)
25-50 l/min
Product line QC2

100-150 l/min

Product line G-Series
Valves
Check Valve
self-closing made from fluoropolymer

Turncock (QC2)
manual

Ball Valve (G-Series)
manuell
Available Materials
High purity
HDPE
PVDF

Elec. conductive

PP
PVDF
GasketsStandard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM
Liquid-Connection
Vertical oder horizontal
Flare 3/8", 1/2", 3/4", 1"
Tri-Clamp
FNPT / MNPT
BSP
Hose connector
Camlock
Vent-Connection
Vertical
FNPT3/8"
Flare 1/4", 3/8", 1/2"
Technical Information
Datasheet Limit Switch

Please visit our download center for further downloads and other languages. Resources > Downloads.
