Options Dispense and Fill Heads

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications:

Configure it now!

  • Higher flow rates
  • No flow losses due to check valve
  • Can be used in both flow directions
  • Particularly suitable for:
    • very viscous or abrasive media (e.g. slurries)
    • chemicals with low boiling points.
      For example, ammonia solution can start to boil at higher temperatures and when powerful pumps are used (bubbles form). The turncock reduces the pressure loss in the suction pipe compared to Dispense Heads with a self-closing check valve.

Available in product lines

Turncock

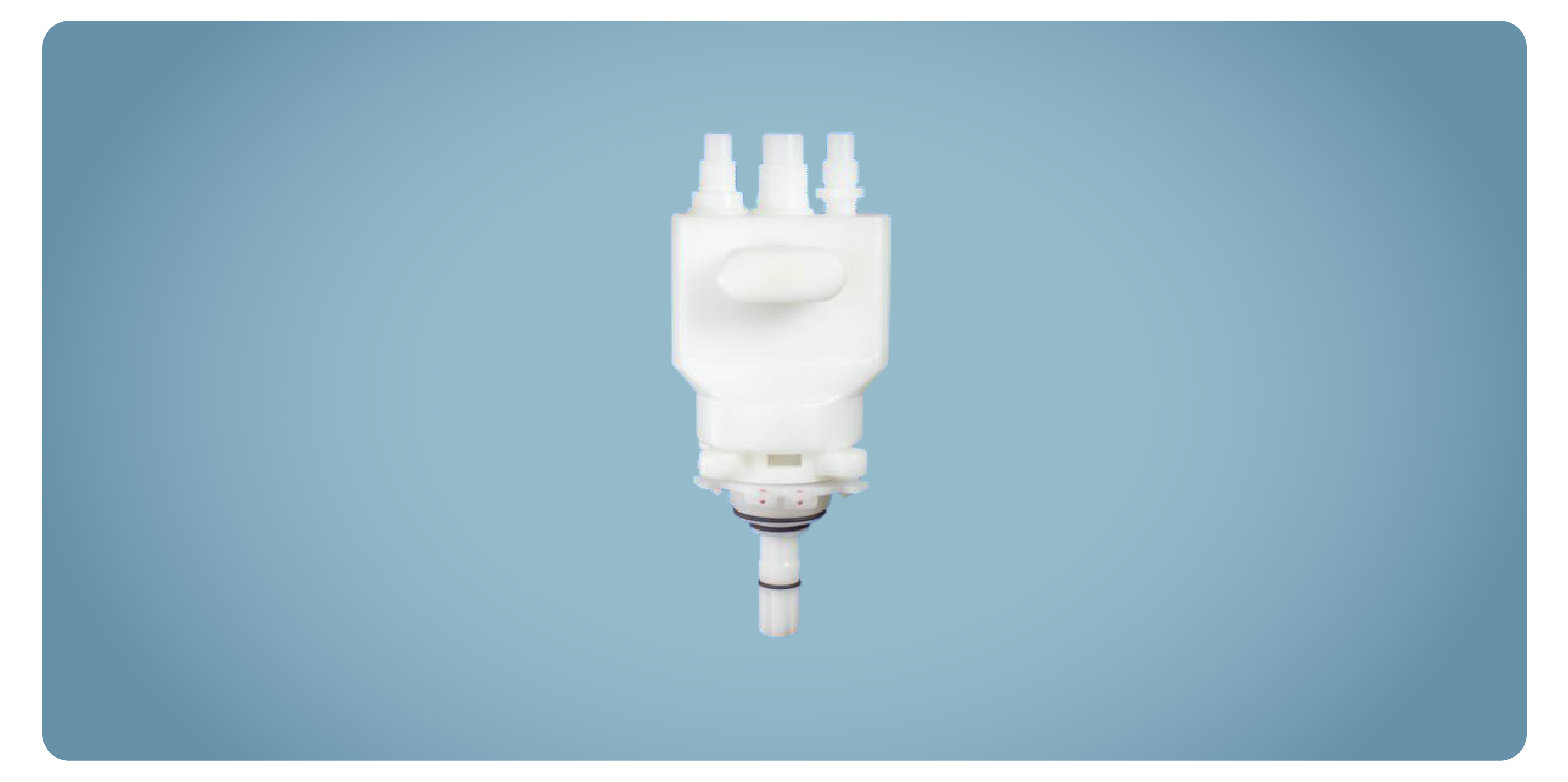

QC2

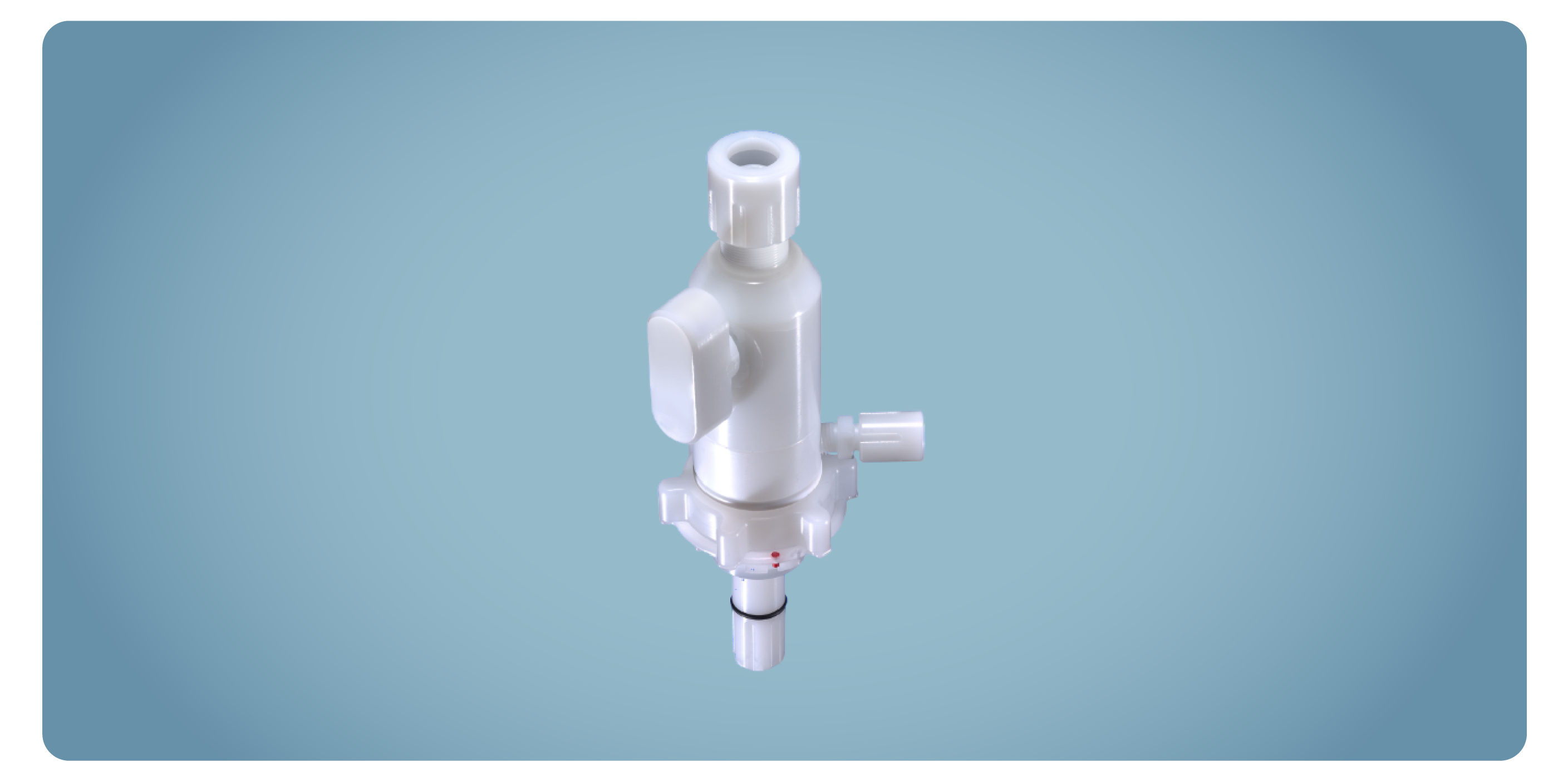

QC3

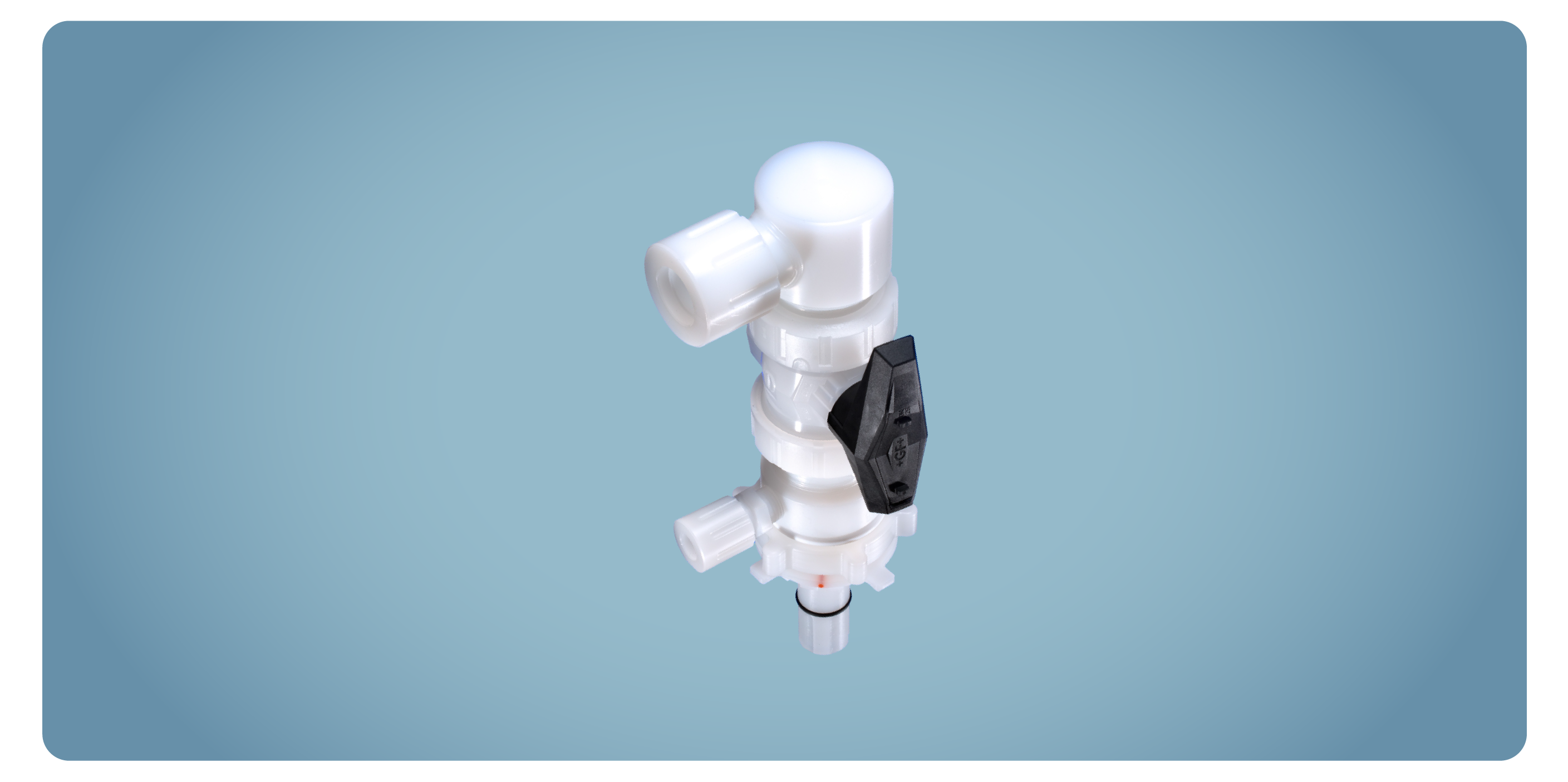

Ball valve

G-Series

Flow rate (max)

50 l/min
Product line QC2

50 l/min

Product line QC3

150 l/min

Product line G-Series

Available Materials
Turncock

Same as Dispense Head body

Available Materials
Ball valve

PP
PVDF

Seals
Turncock

No additional seals needed

Seals
Ball valve

Standard
FKM

Alternative
FFKM (Kalrez®)
EPDM

Datasheet QC2 Turncock
Datasheet QC3 Turncock
Datasheet G-Series
Technical Information

Please visit our download center for further downloads and other languages. Resources > Downloads.
