Options Dispense and Fill Heads

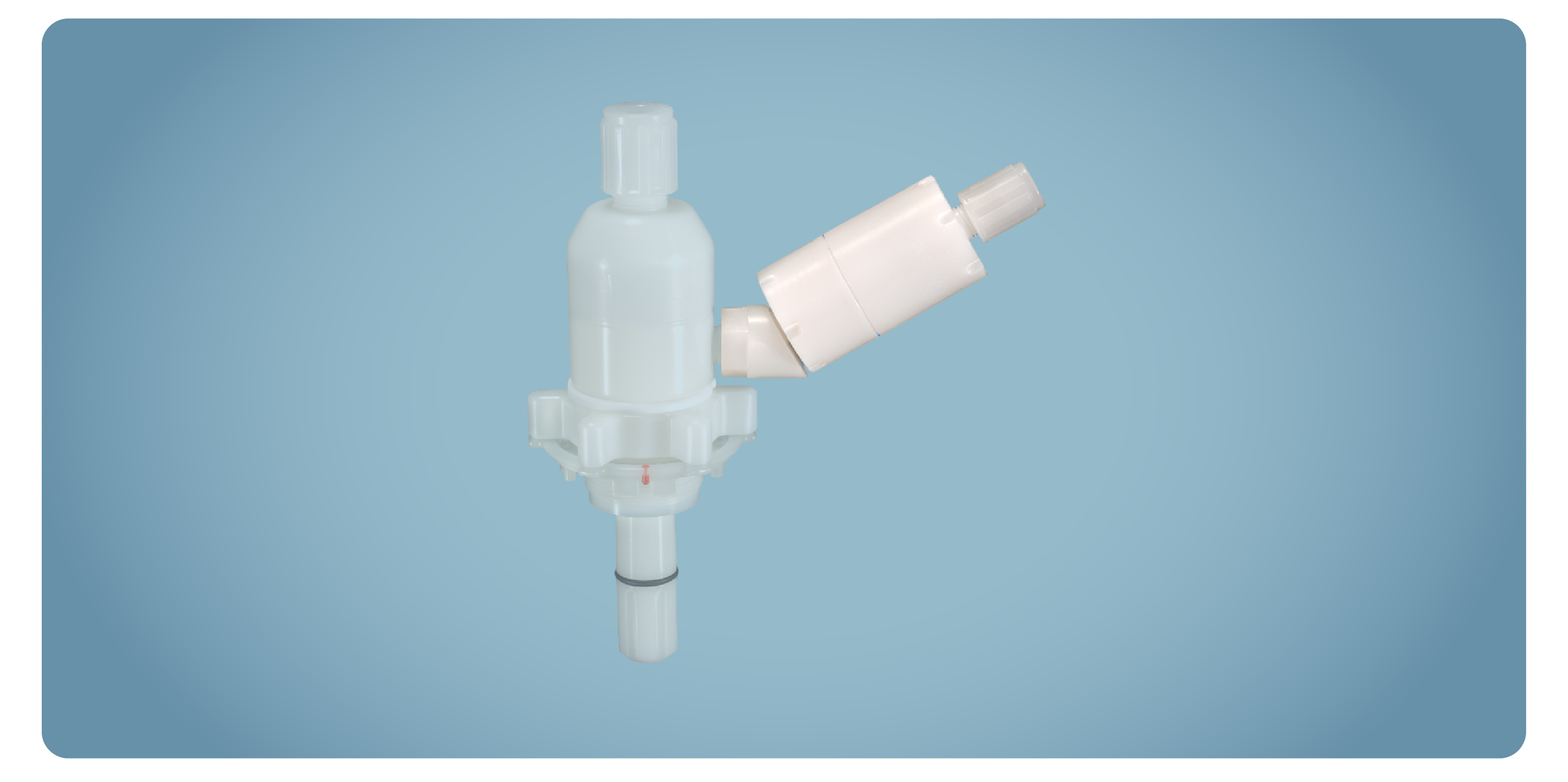

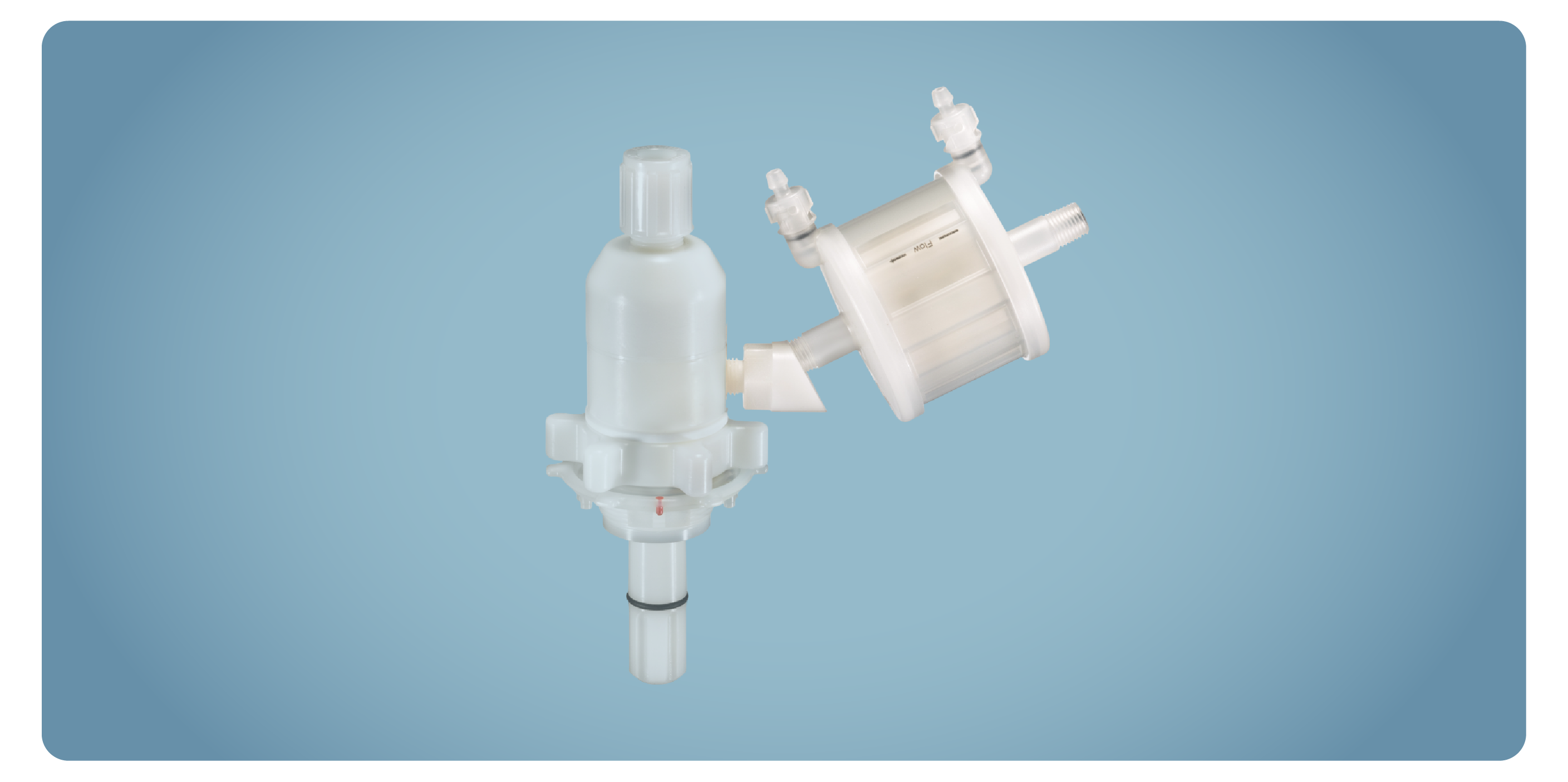

Dispense Head with Integrated Bubble Sensor

Signals when containers are empty.

Dispense heads with integrated bubble sensor enable automated operation.

Depending on the setting, the sensor can stop the pump before air enters the suction line, or suction can continue for several seconds to achieve the best possible residual emptying.

Incorporation in the dispense head ensures trouble-free operation as the sensor cannot slip, as is often the case when attached to tubing.

Features:

Signaling when the container is completely emptied

Signal can enable:
- Actuation of the pump
- Switching between two containers
- Control of lights or signal horns
Sensor does not come in contact with the chemical

Configure it now!

Available in product lines	QC2 G-Series	Sensor*	PNP Normally open (NO) Media-dependent programmable
Flow rate (max)	25 l/min Product line QC2 100 l/min Product line G-Series	Valves	Check Valve self-closing made from fluoropolymer
Available Materials	High purity HDPE PVDF	Gaskets	Standard FFKM (Kalrez®) Alternative FKM (Viton®) EPDM
Liquid-Connection	Vertical Flare 1/2", 3/4" MNPT / FNPT BSP Hose Connector	Vent-Connection	Vertical FNPT3/8" Flare 1/4", 3/8", 1/2"

* For detailed information please contact our technical sales department.

Technical Information
Data Sheet Bubble Sensor

Please visit our download center for further downloads and other languages. Resources > Downloads.

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

check resistance

This might also interest you

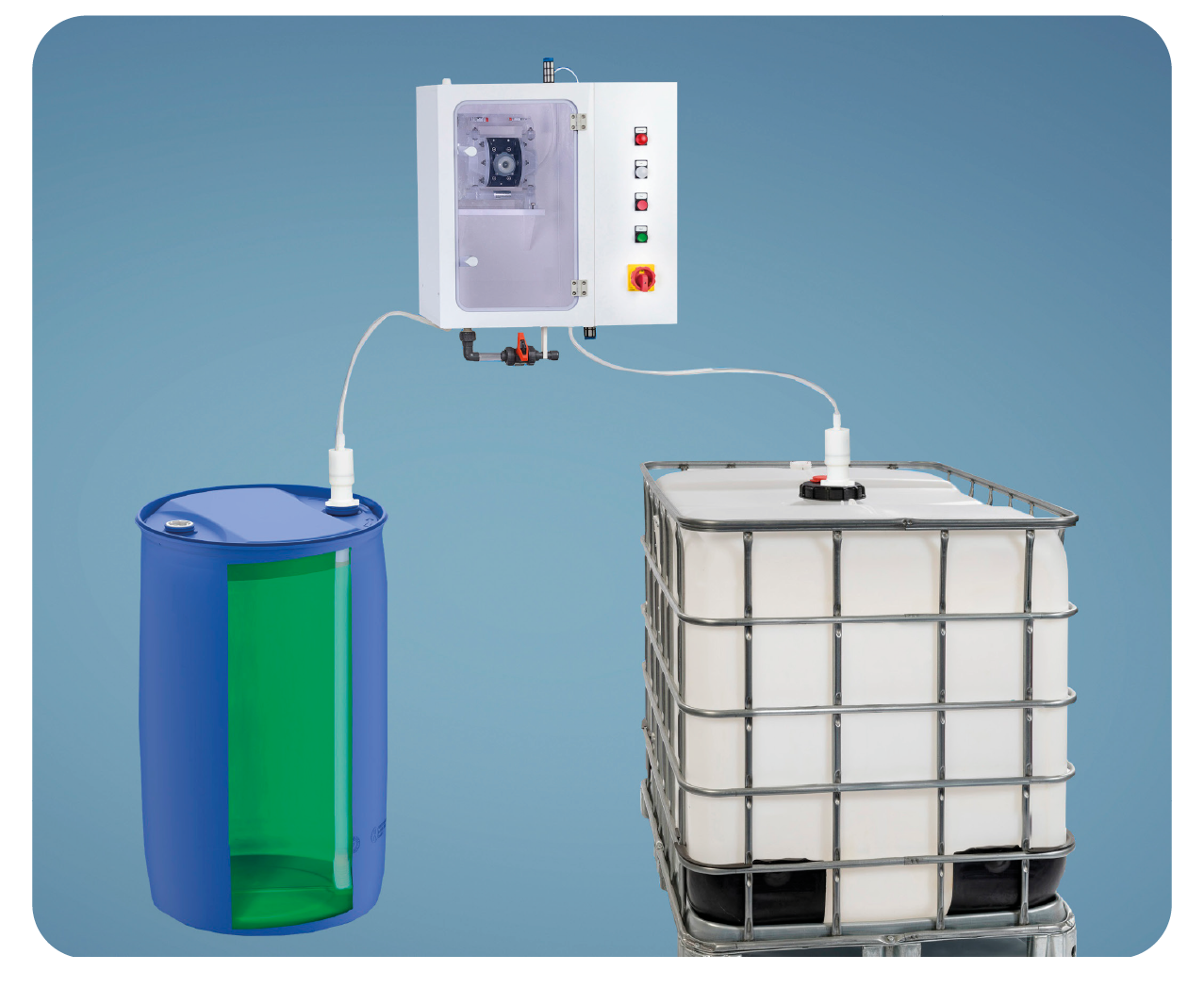

Ready-to-use complete systems
