Level measurement and overfill protection

Level measurement

Capacitive and simple level measurement from outside - without contacting chemicals.

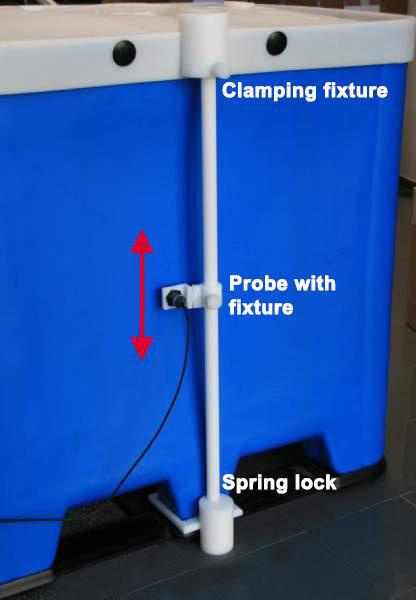

Our supports for level measurement consist of a pedestal, which is fitted to the container, as well as a 3-axis sensor bracket.

Suitable for Schütz 1000-litre IBCs, plastic 200-litre barrels, Rikutec IBCs, and Promens Varibox.

  • Pedestal and support completely made of plastic; no metal parts - no corrosion
  • Capacitive sensors for level measurement
  • Measurement is done without contacting liquid
  • No problems with contamination
  • Sensor is infinitely height adjustable
  • Up to 5 sensors can be used on one support
  • Fast assembly without tools
  • Sensor with 2-metre cable length

Level sensors for recording the levels of liquid media

  • Penetrates plastic walls
  • Detects watery to highly conductive media
  • Adjustment-free installation
Container PedestalSensor incl.
3-axis sensor bracket

Accessory
adhesive pad
for sensor

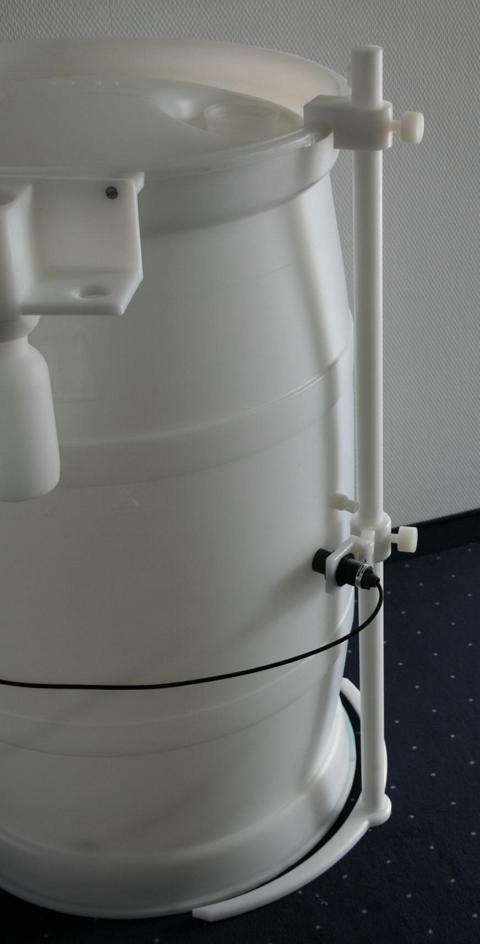

Plastic-drum
200 liter
E22000E22002E22007
Plastic-drum
60 liter SVR
E22000-SVRE22002
E22007

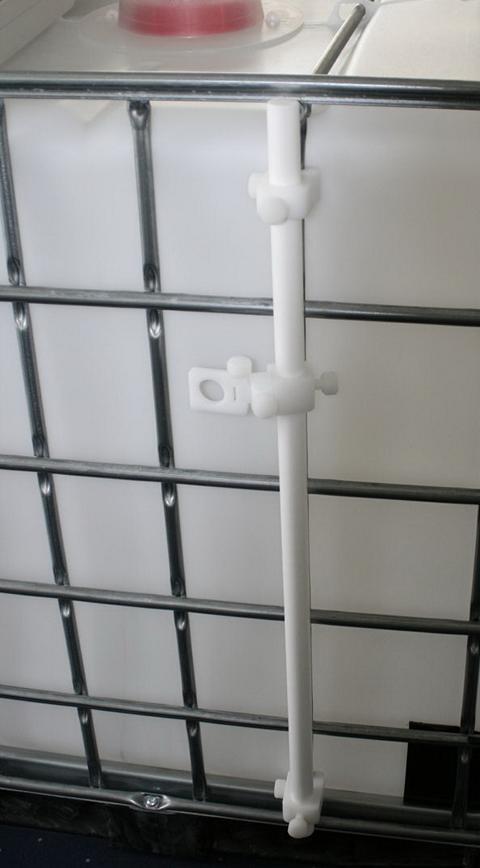

IBC
Schütz
MX1000
E22003
E22002E22007
IBC
Rikutec UC
E22001E22002E22007
IBC
Rikutec GR
E220012
E22002
E22007

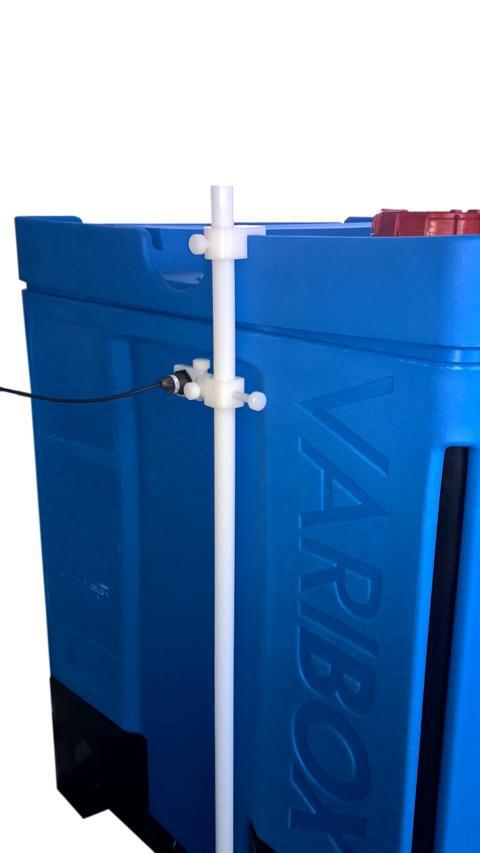

IBC
Promens Varibox FC
E22006
E22002E22007
IBC
Werit 1000 l
E220011
E22002
E22007
check resistance
