Options Dispense and Fill Heads

Dispense Heads Stainless Steel


Specially developed for the pharmaceutical industry, our stainless steel Dispense now also meet the regulations concerning FDA approved materials in explosion proof areas. Made from 316L / 316Ti and equipped with FDA approved Kalrez® gaskets.

Configure it now!

Properties Dispense Heads:

Valves:
  • Check valve, self-closing made from 316L and fluoropolymer
  • Optional: w/o check valve and with seperately connected ball valve.
Flow rate (max):

QC2:

  • 25 l/min with check valve
  • 50 l/min with ball valve

G-Series:

  • 100 l/min with check valve
  • 150 l/min with ball valve
Materials:316L, fluoropolymer
Dimensions:

QC2:

  • 1,4kg
  • Total height: 18cm
  • height above container: 11cm

G-Series:

  • 2,2kg
  • Total height: 22 cm
  • height above container: 15 cm
Gaskets:
  • FFKM (Kalrez®) with FDA conformity
Liquid-Connection:

QC2:

  • G1/2" female, horizontal

G-Series:

  • G1" female, horizontal

* Suitable Flare and Tri-Clamp connections available on request.

Vent-Connection:

QC2:

  • G1/4" female, horizontal

G-Series:

  • G1/2" female, horizontal
Grounding wire:
  • Included with clamp
Item no:

QC2:

  • DH-DL-VA-XXX-H IG1/2"-G1/4"

G-Series:

  • GH-DL-VA-XXX-H IG1"-G1/2"



In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

check resistance

This might also interest you

QC2 Dispense Head

QC2 Dispense and Fill Heads

Dispense and Fill Heads from the QC2 product line are the all-rounders and feature a wide variety of adaptation possibilities and options. Flow rates of up to 25-50 l/min.

learn more →

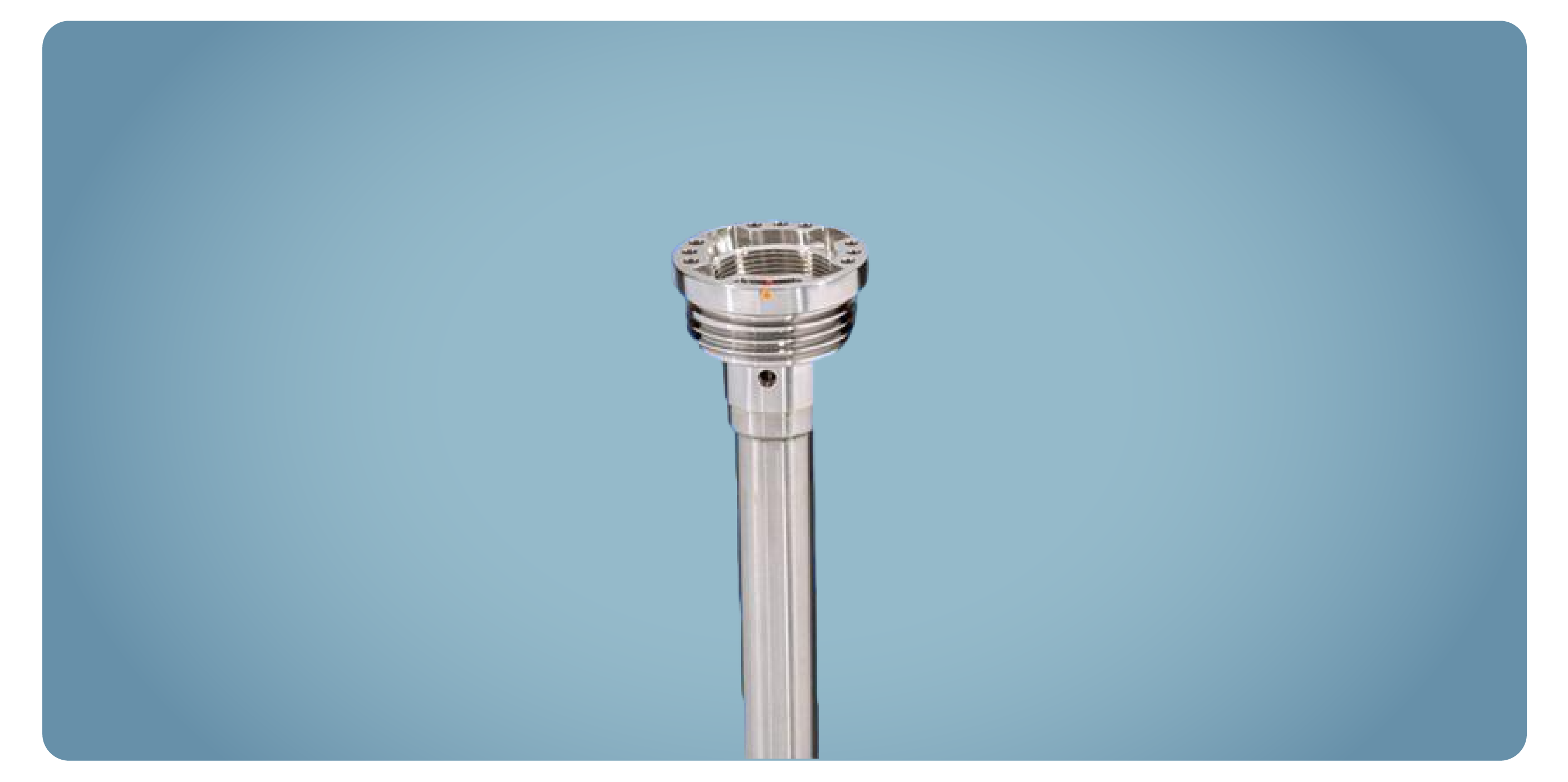

Dip Tubes Stainless Steel
