Product lines Dispense and Fill Heads

QC2 Dispense and Fill Heads

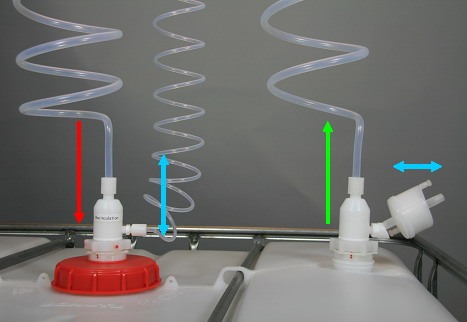

Dispense and Fill Heads from the QC2 product line are the all-rounders and feature a wide variety of adaptation possibilities and options. Flow rates of up to 25-50 l/min.

Configure it now!


Flow rate (max)


25 l/min
with check valve

50 l/min
with turncock


Valves

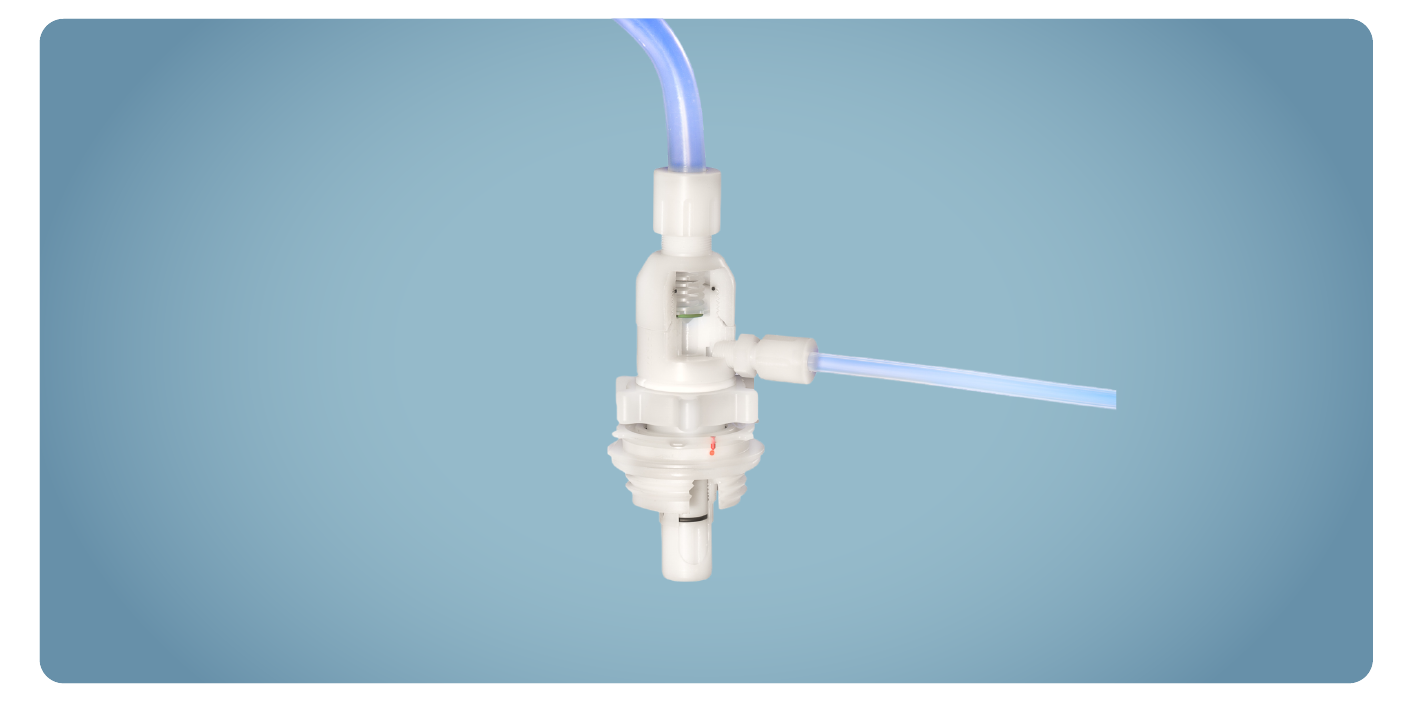

Check valve
self-closing, made from fluoropolymer

Turncock
manual, made from fluoropolymer

Available Materials

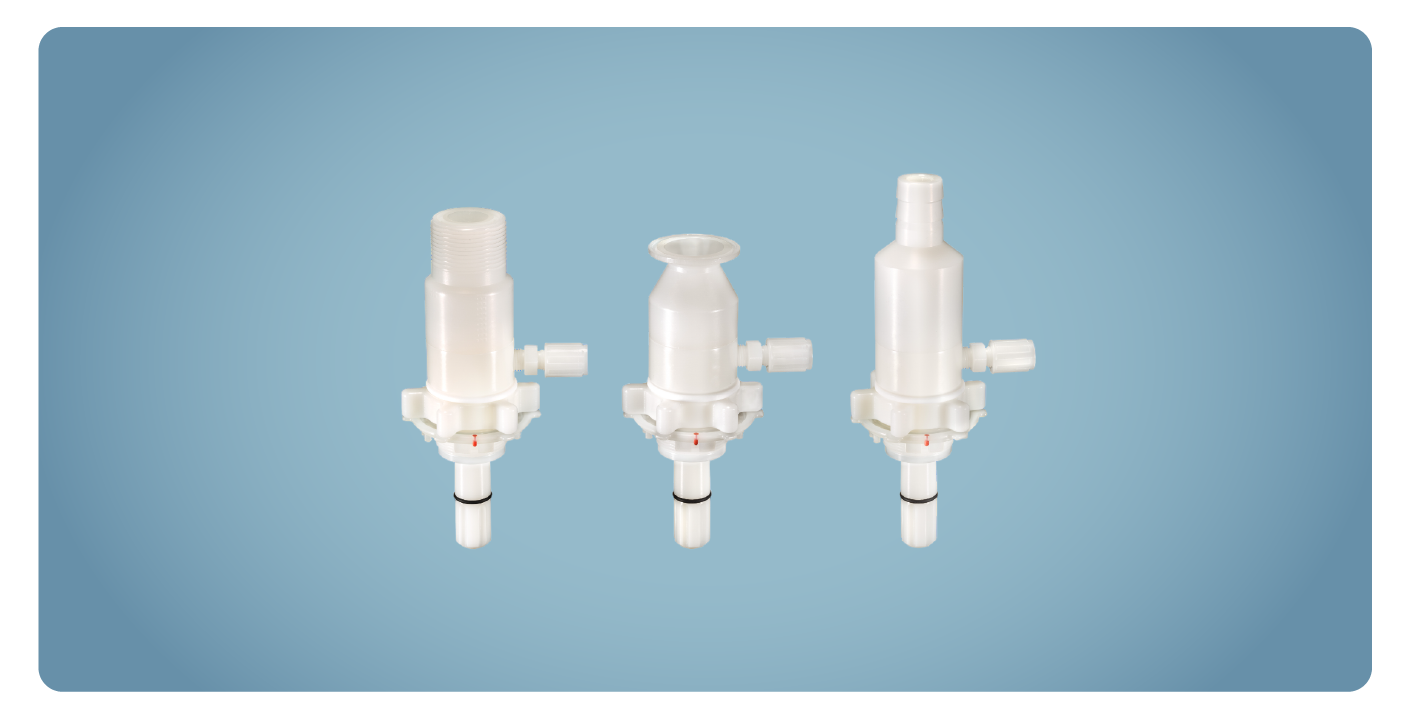

High purity
HDPE
PVDF
PCTFE

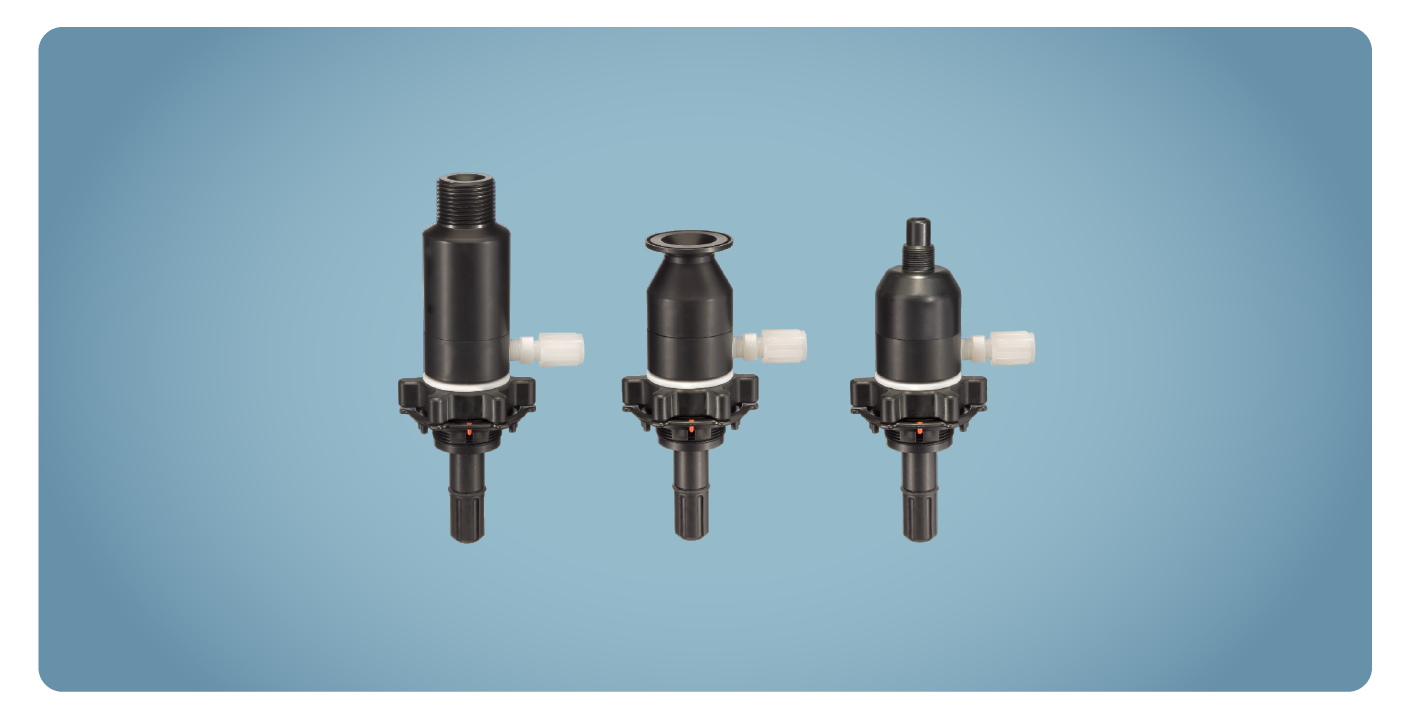

Elec.
conductive
PP
PVDF
PFA

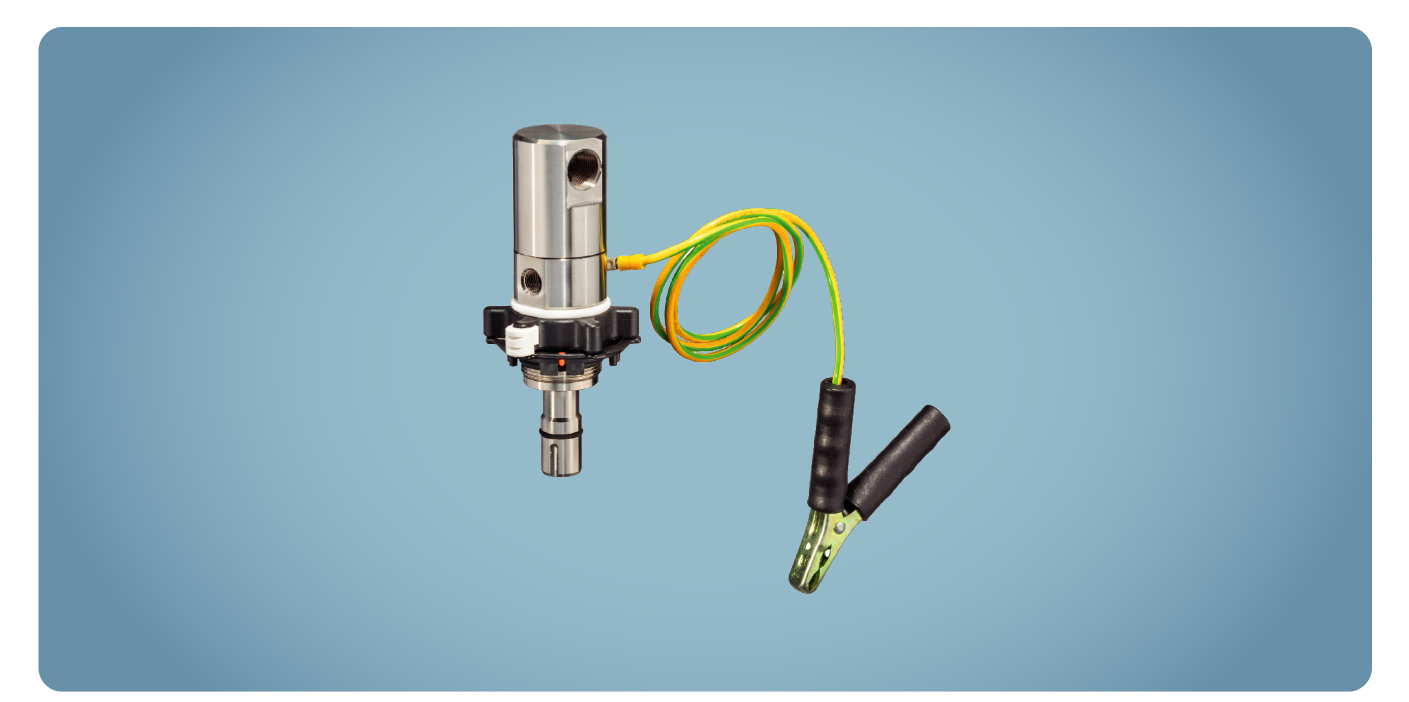

Stainless steel V4A

Seals

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Liquid-Connection

Vertical or horizontal
Flare 3/8", 1/2", 3/4", 1"
Tri-Clamp
NPT (female / male)
BSP (female / male)
Hose Connector
Camlock

Vent-Connection

Vertical
NPT3/8" (female)
Flare 1/4", 3/8", 1/2"

Corresponding dip tubes

"DT-"

Technical Information

Please visit our download center for further downloads and other languages. Resources > Downloads.

Options

Dispense Head with Integrated Bubble Sensor

Dispense Head with Integrated Bubble Sensor

Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation. Configure it now! Features: Signaling when the conta...
learn more →
Fill and Dispense Heads with Limit Switch

Fill and Dispense Heads with Limit Switch

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube. Configure it now! Features: Flexible applications: Signal of secure and tight ...
learn more →
Fill Head with Mixing Nozzle

Fill Head with Mixing Nozzle

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers Configure it now! Features: Optimum mixing results in the shortest t...
learn more →
Fill Heads with integrated N2-blanketing port

Fill Heads with integrated N2-blanketing port

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop. Properties: In addition to the standard vent port, i...
learn more →

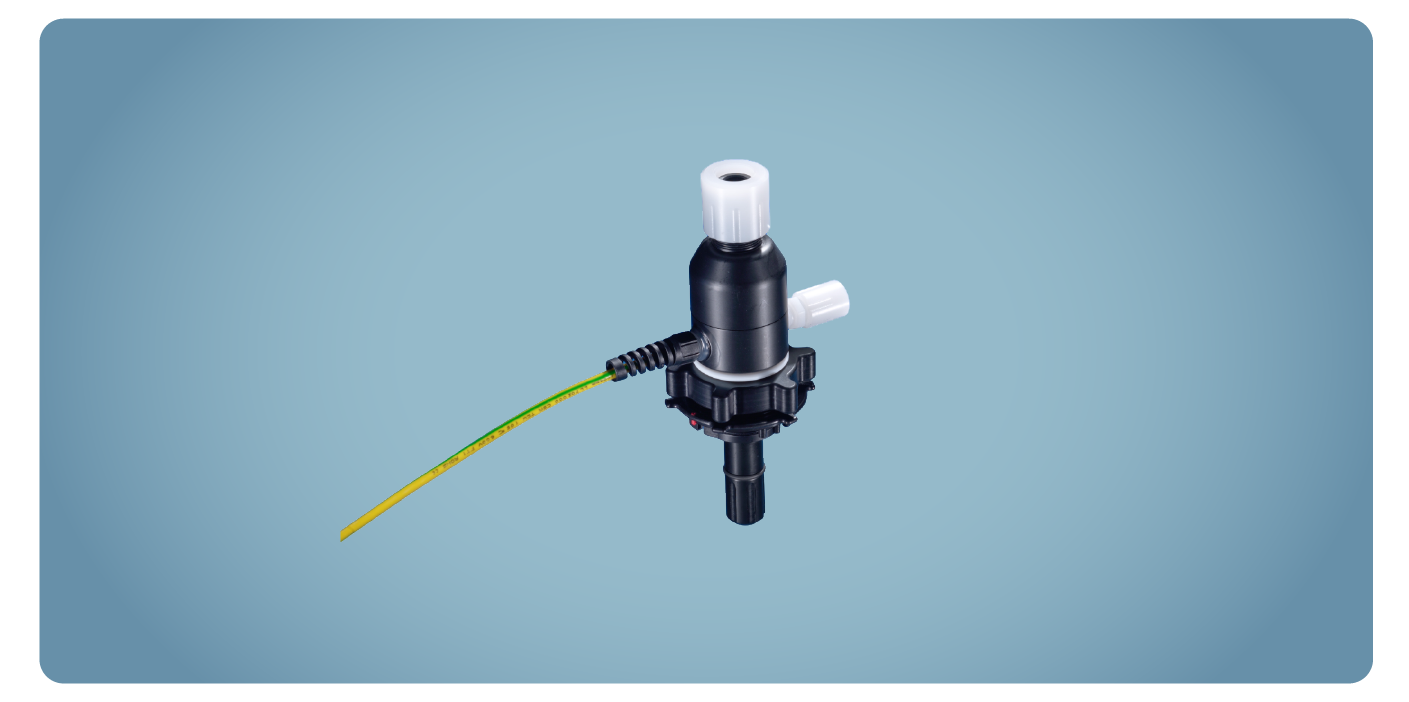

QC2 Dispense Head, electrically conductive

Electrically conductive Dispense and Fill Heads

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments. Configure it now! Manufactured ent...
learn more →
QC-M Dispense Heads with integrated membrane pump

QC-M Dispense Heads with integrated membrane pump

The QC-M Dispense Heads with integrated air driven membrane pump are the perfect solution if it is not possible to install a stationary pump or if you have to dispense at different...
learn more →
Dispense Heads with hand pump

Dispense Heads with hand or foot pump

Dispense Heads with hand or foot pump are particularly suitable for easily and safely dispensing small quantities. Configure it now! Properties: Simple handling Stopcock on disc...
learn more →
Different manual turncocks

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications: Configure it now! Higher flow rates No flow losses due to check valve Can be used in both flow d...
learn more →
Ball valves with limit switch

Ball valves with limit switch

G-Series Dispense and Fill Heads with a ball valve can be optionally equipped with a multifunctional module, which allows signalling when the ball valve is in the correct position....
learn more →
Pneumatic membrane valves

Pneumatic membrane valves

Pneumatic membrane valves in the Dispense and Fill Heads enable an automated activation. Configure it now! Available in product lines QC1 (no vent)QC2 Flow rate (max) 50 l/min ...
learn more →
QC–S sampling unit for ultra-pure sample collection

QC–S sampling unit for ultra-pure sample collection

With the QC-S sampling unit, the sample liquid only comes into contact with the suction hose and the sample bottle (accessories). Cross-contamination is largely prevented. Using th...
learn more →
check resistance
