QC2 Dispense and Fill Heads

Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation.

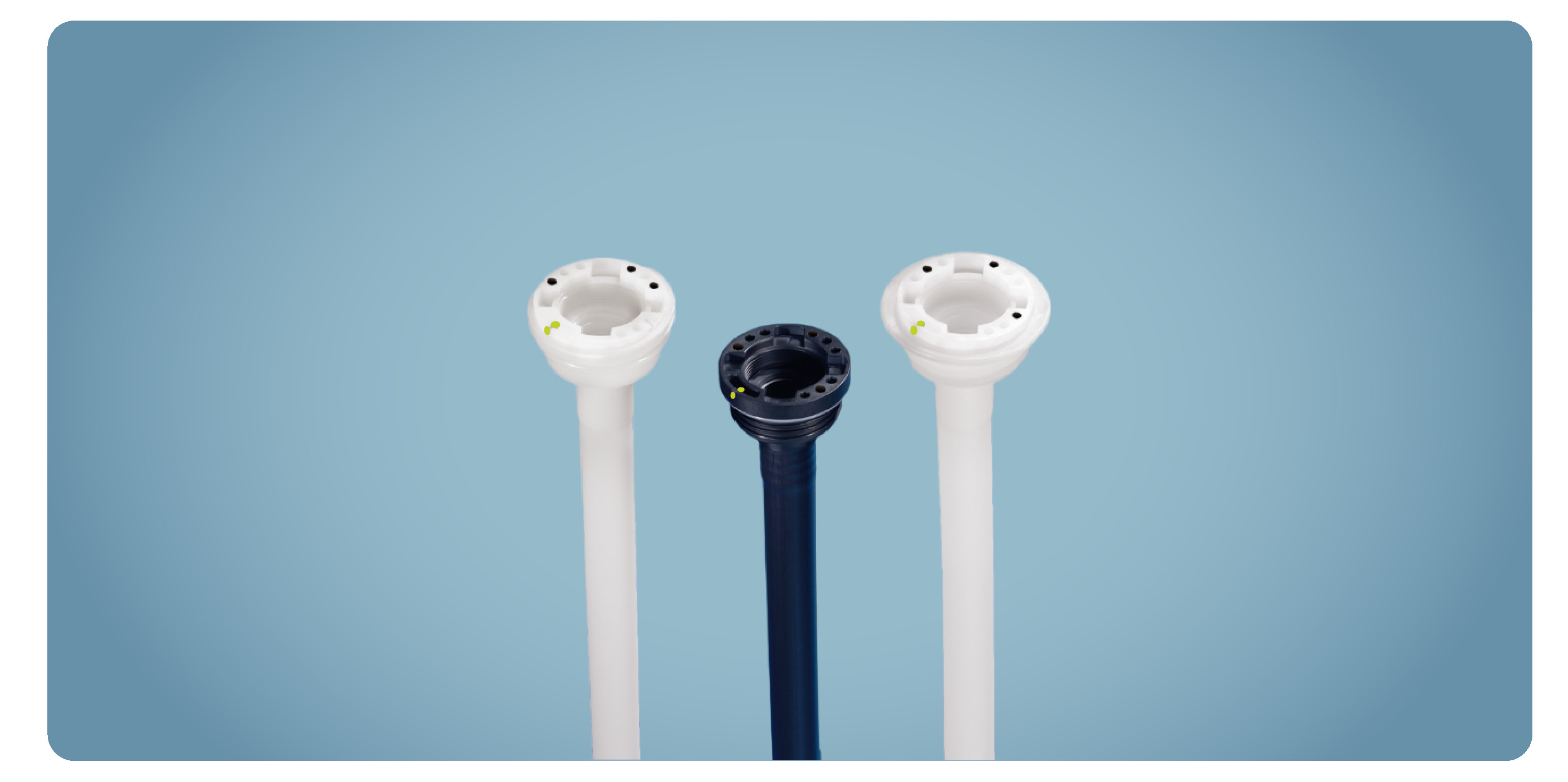

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube.

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers.

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop.

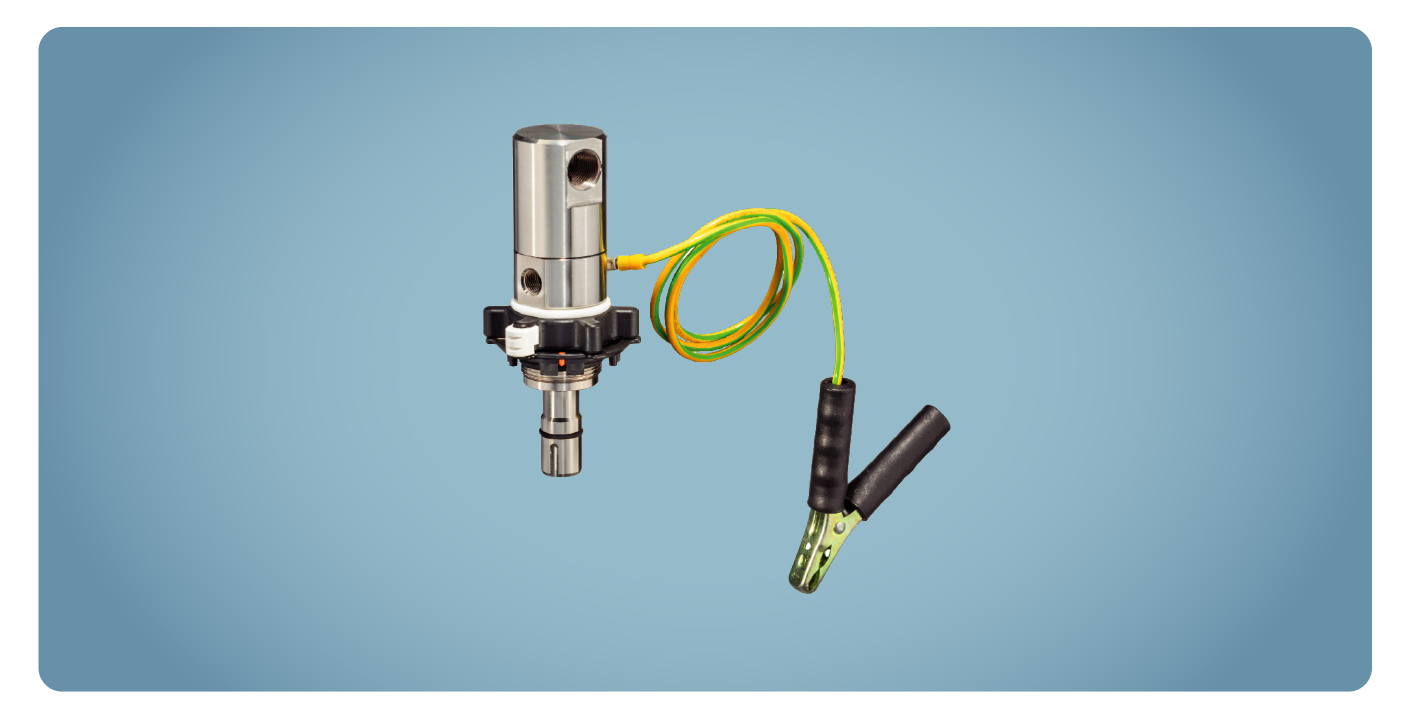

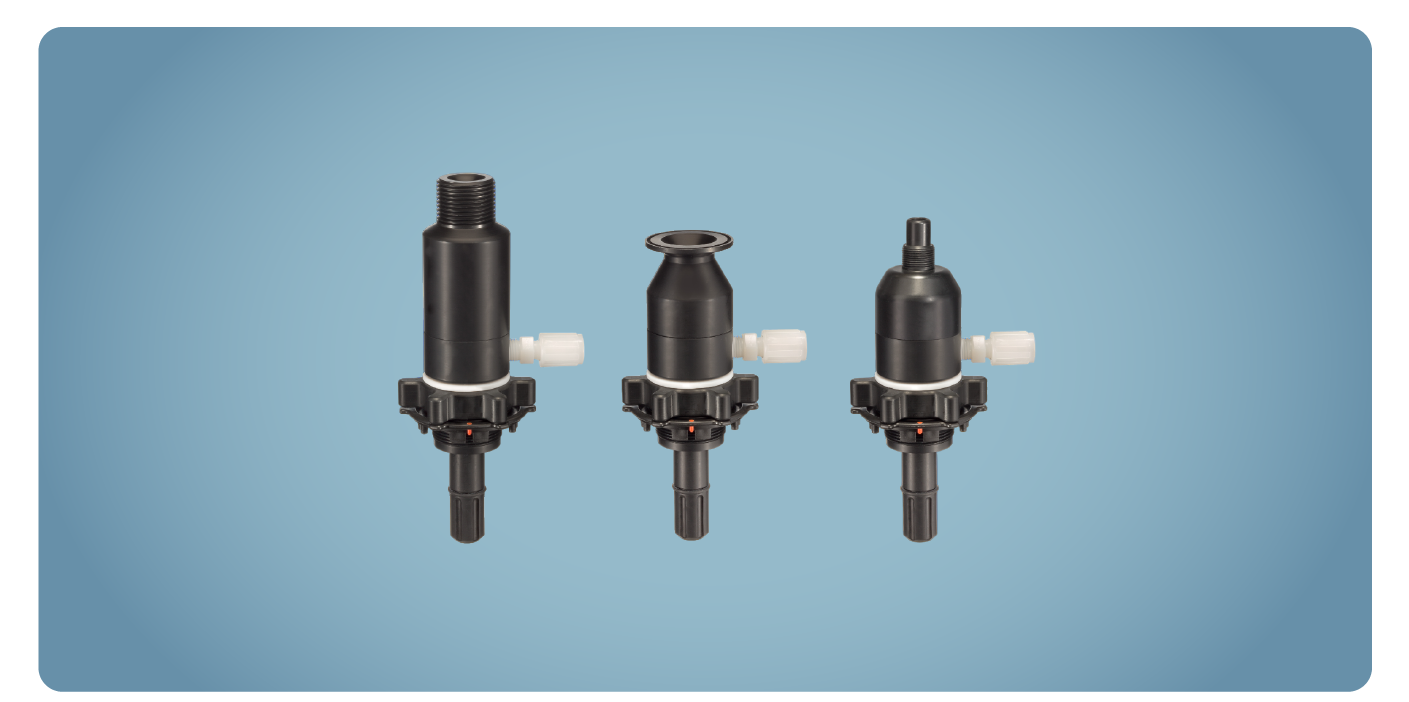

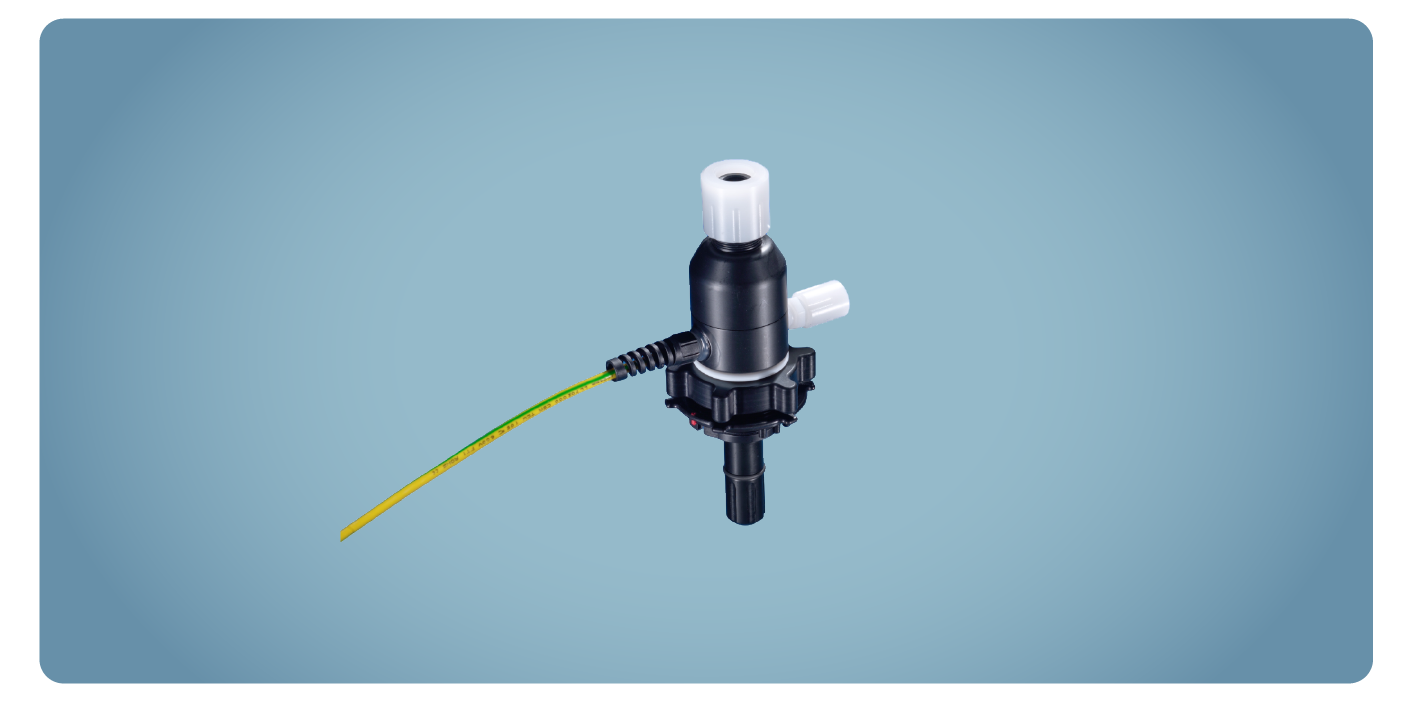

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments.

The QC-M Dispense Heads with integrated air driven membrane pump are the perfect solution if it is not possible to install a stationary pump or if you have to dispense at different stations.

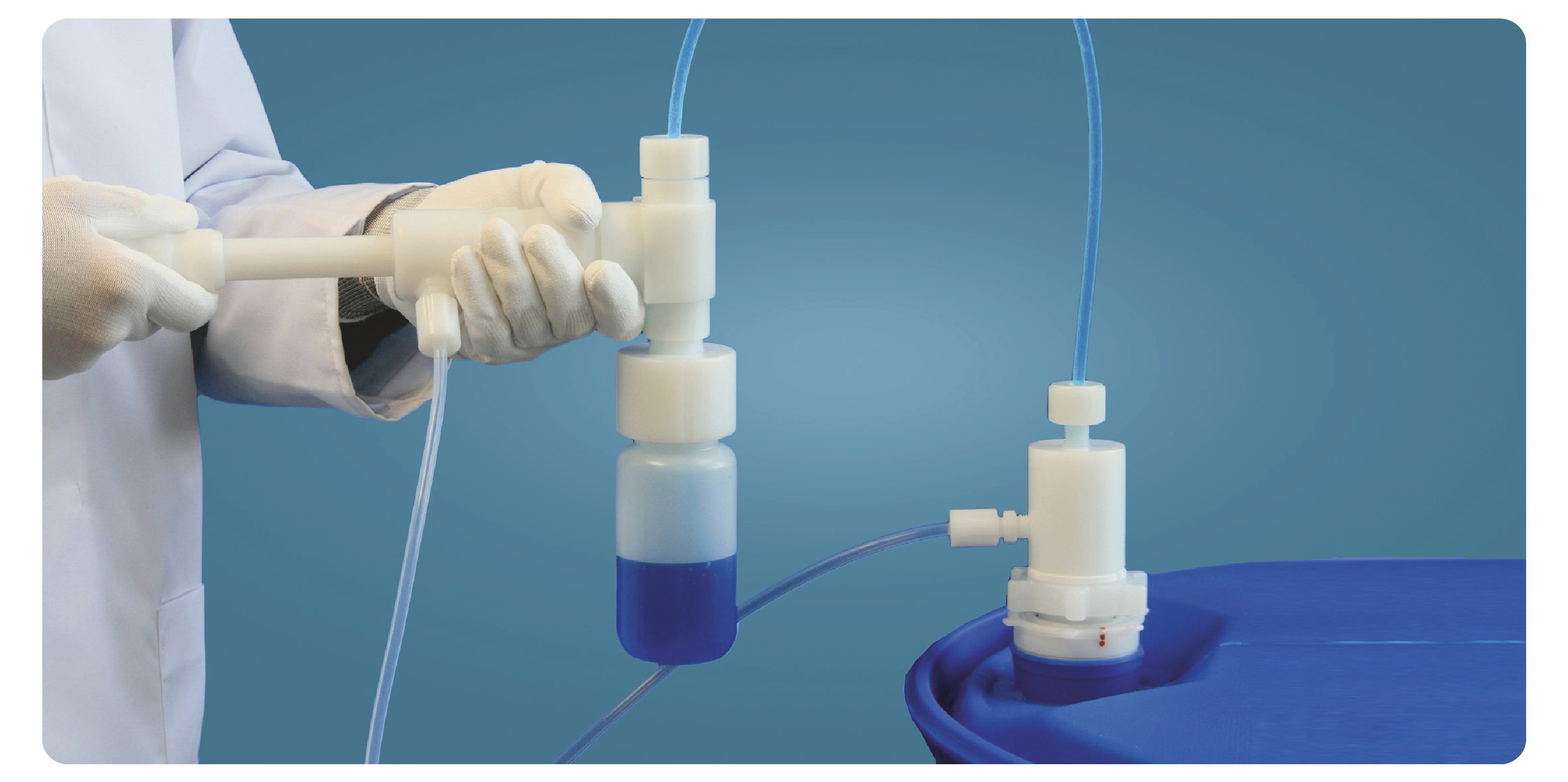

Dispense Heads with hand or foot pump are particularly suitable for easily and safely dispensing small quantities.

Manual turncocks in the Dispense and Fill Heads enable a variety of applications:

• Higher flow rates
• No flow losses due to check valve
• Can be used in both flow directions
• Particularly suitable for:

G-Series Dispense and Fill Heads with a ball valve can be optionally equipped with a multifunctional module, which allows signalling when the ball valve is in the correct position.

Pneumatic membrane valves in the Dispense and Fill Heads enable an automated activation.

With the QC-S sampling unit, the sample liquid only comes into contact with the suction hose and the sample bottle (accessories).

• Very widespread
• Versions for every container
• Largest selection of materials, options and accessories
• Electrically conductive design
• Dispensing and fill/return flow via two dip tubes
• Flow max. 25-50 l/min

The stationary and ready-to-use dispensing station allows maximum safety and flexibility.
Designed for safe and efficient dispensing of chemicals - the perfect addition for the QC-System.

Safe and reliable storage unit for Dispense and Fill Heads whilst changing containers.

Capacitive and simple level measurement from outside - without contacting chemicals.
