Options Dispense and Fill Heads

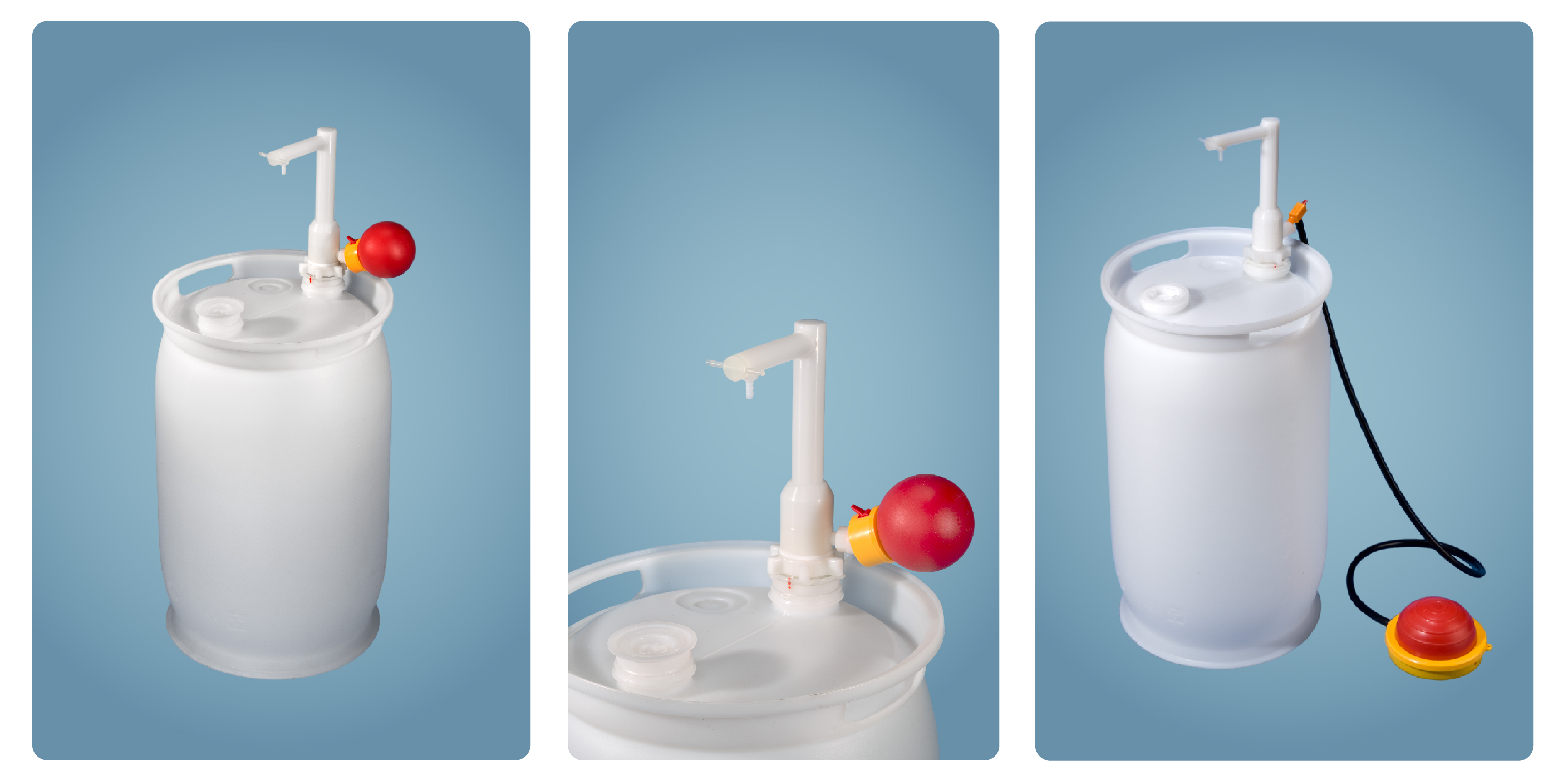

Dispense Heads with hand or foot pump

Dispense Heads with hand or foot pump are particularly suitable for easily and safely dispensing small quantities.

Configure it now!

Properties:

  • Simple handling
  • Stopcock on discharge tube keeps pressure constant
  • Pressure reduced via pressure relief valve
  • In case of degassing media, an optional check valve can be fitted in the ventilation channel

Available in product lines

QC2

Pumps

foot-operated
PVC / PP
incl. 140 cm hose

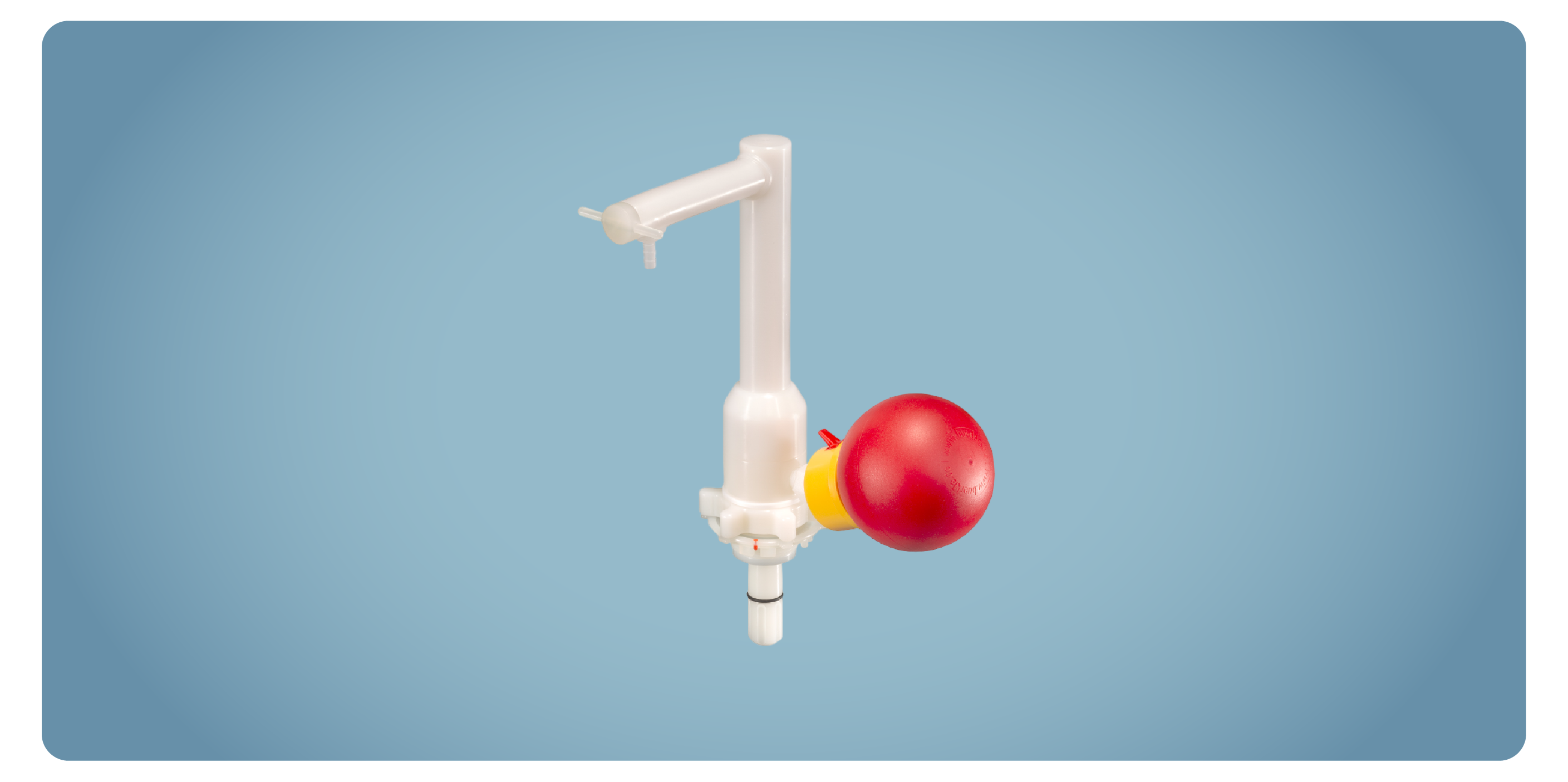

hand-operated
PVC / PP

Valves

Stopcock on discharge tube
manual

Available Materials

High purity
HDPE
PVDF

Seals

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM


Liquid-Connection

Vertical downwards
Hose Connector 1/4" on stopcock

alternative:
QC2 Head

Vent-Connection

Vertical
NPT3/8" (female)

Technical Information
Datasheet QC2 Foot Pump

Please visit our download center for further downloads and other languages. Resources > Downloads.

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

check resistance

This might also interest you

Ready-to-use complete systems

The stationary and ready-to-use dispensing station allows maximum safety and flexibility.
Designed for safe and efficient dispensing of chemicals - the perfect addition for the QC-System.

learn more →

Docking stations

Safe and reliable storage unit for Dispense and Fill Heads whilst changing containers.

learn more →

Universal drum wrench

Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.

learn more →

Particle filter for ventilation

The particle filter only lets purified air into the container to compensate the pressure.

learn more →

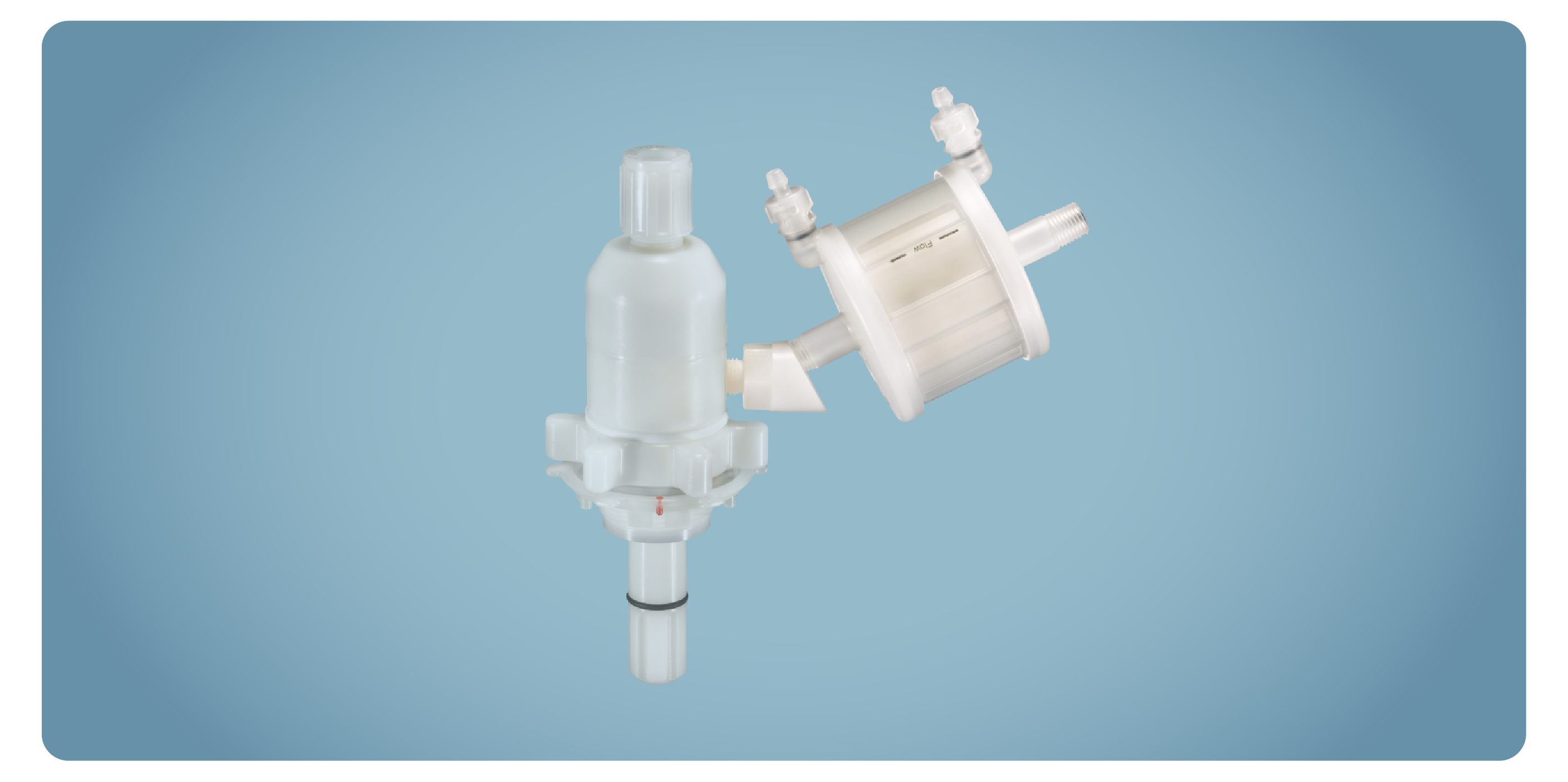

Check valves for ventilation
