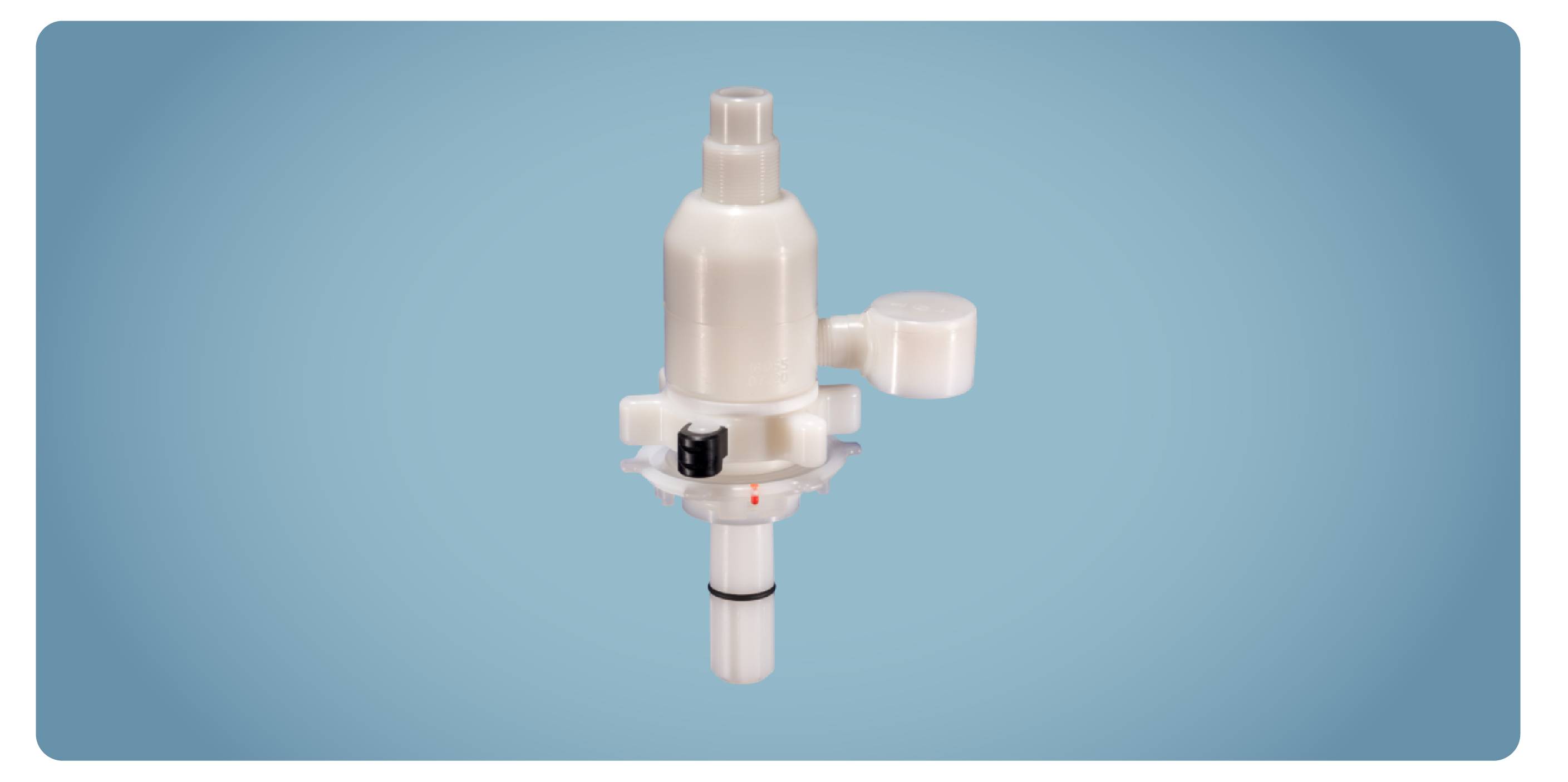

Safe and reliable storage unit for Dispense and Fill Heads whilst changing containers.

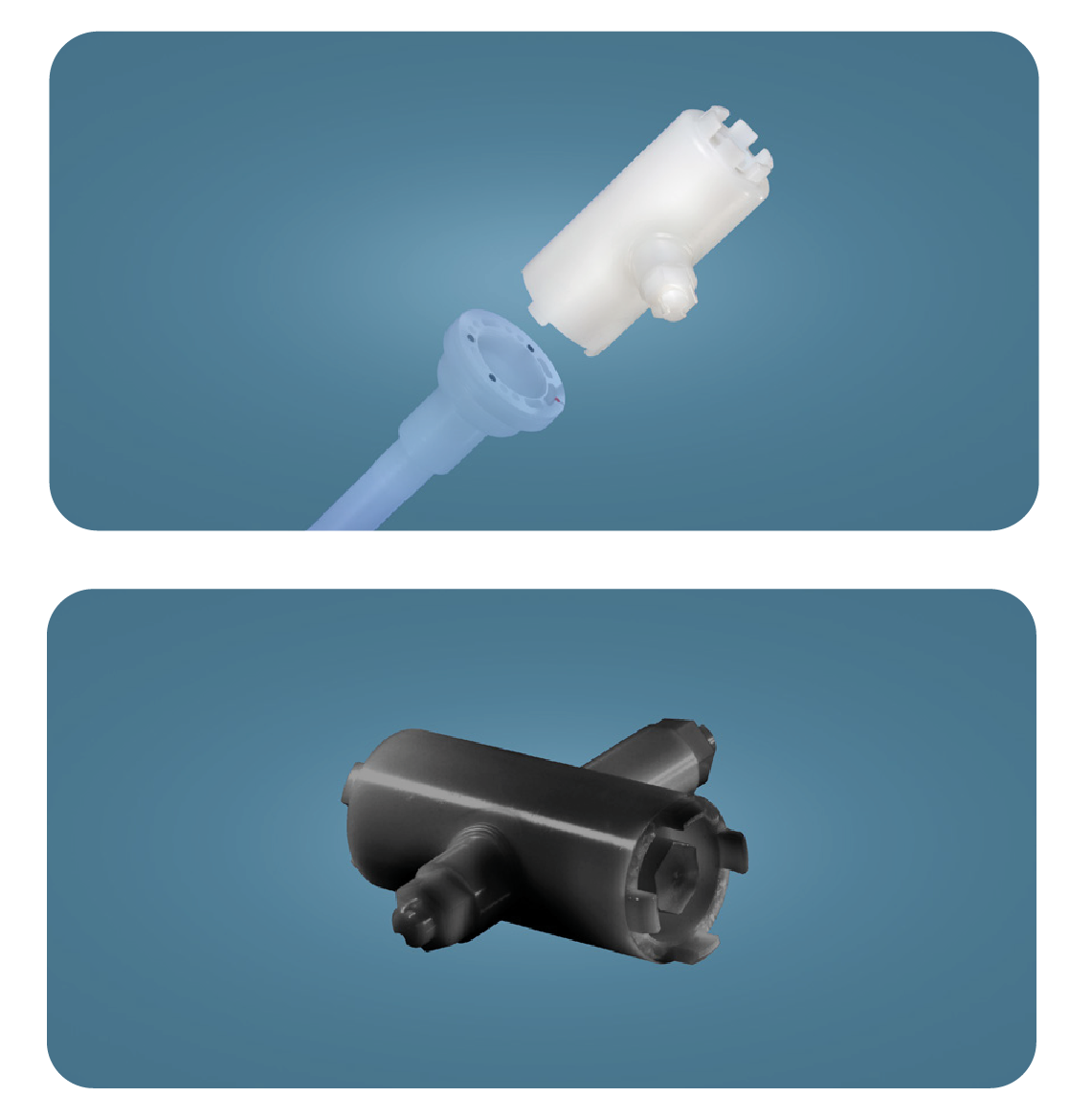

Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.
- Size 24 hexagon to fit a torque wrench
- Adapter for dip tube
- Adapter for dip tube closure
- Adapter for container screw plug
Product line / corresponding dip tubes | Material | Item-no. |
QC2 / DT- M2-Series / MTS | HDPE PVDF highly durable Elec. conductive | RDH-79003 RDH-79005 RDH-79003-CD |
QC3 / DT3- | HDPE PVDF highly durable | RDH-79007-PE RDH-79007-PVDF |
G-Series / GT2- | HDPE PVDF highly durable Elec. conductive | RDH-79009 RDH-79010 RDH-79009-CD |
Tightening torques:
The chemical supplier / manufacturer is responsible for the safety of chemical transportation.
AS Strömungstechnik recommends the following closure torques for closing drums or containers with QC-System dip tubes, closures or adaptors. Binding torques have to be verified with the container manufacturer.
Packaging type | Steel plastic combination | PE-plastic drums | PE-plastic drums | PE-plastic drum | Composite-IBC | Composite-IBC | Composite-IBC |
Packaging code UN | 1A1 / 6HA1 | 1H1 | 1H1 | 1H1 | 31HA1 / 31HH1 | 31HA1 / 31HH1 | 31HA1 / 31HH1 |
Thread (BCS) | 56 x 4 | 56 x 4 | 62 x 5 | 70 x 6 | 56 x 4 | 62 x 5 | 70 x 6 |
Torques [Nm] | 25+5 | 20+5 | 30+5 | 35+5 | 20+5 | 30+5 | 35+5 |
For the 3/4" / 1" (S-Type) dip tube closures: 5-6 Nm
For the M42/M53 (T-Type) dip tube closures: 6-8 Nm
