PFA-Tubing

Corrugated PFA tubing

For a stress-free installation and ultra-flexible handling of the QC-System. Ideal for vertical and horizontal installation of the suction line.

Properties:

  • Flare connections on both ends of the tube
  • Nominal widths: 3/8", 1/2", 3/4"and 1" (more available on request)
  • Lengths:
    • 3/8" up to 2 meter
    • 1/2" up to 4,5 meter
    • 3/4" up to 6 meter
    • 1" up to 6 meter
  • Different ultra pure PFA qualities available on request
  • 10 cm-long straight hose ends on both sides so that the QC Dispense Head can easily be connected with the flare connecting system
  • More stable compared to usual corrugated PFA tubing due to inwards corrugation

Properties of PFA:

The chemical and physical properties of PFA tubes are largely identical to those made of PTFE.
They have an outstanding and almost universal resistance against most chemicals, are ultra-pure and can be used for pharmaceutical applications. The key differences to PTFE are: lowercold flow, improved mechanical properties, lower diffusion, higher purity and better translucency. PFA can be welded.

Technical Data:

Ø Outside straight part (lnch)
Ø
Inner straight part (mm)
Wall thickness straight part (mm)
Working pressure (bar)
Burst pressure (bar)
Ø Outside (mm)
3/8"
6,33
1,60
13,70
34,00
8,00
1/2"
9,50
1,60
11,70
29,40
15,00
3/4"
15,80
1,60
5,80
14,50
20,00
1"
22,20
1,60
3,90
9,70
30,00

Standard Versions:

MaterialSize in Inch
Usability length in mm*
Item-no.
PFA virgin
1/2"
1/2"
3/4"
3/4"
1"
1"
1000
2000
2000
3000
2000
3000
R12S121-CT-1-231-FL
R12S121-CT-2-231-FL
R12S122-CT-2-231-FL
R12S122-CT-3-231-FL
R12S111-CT-2-231-FL
R12S111-CT-3-231-FL

* incl. 100 mm straight ends on both sides incl. Flare nuts

Further lengths, nominal widths and different PFA qualities on request.

check resistance

This might also interest you

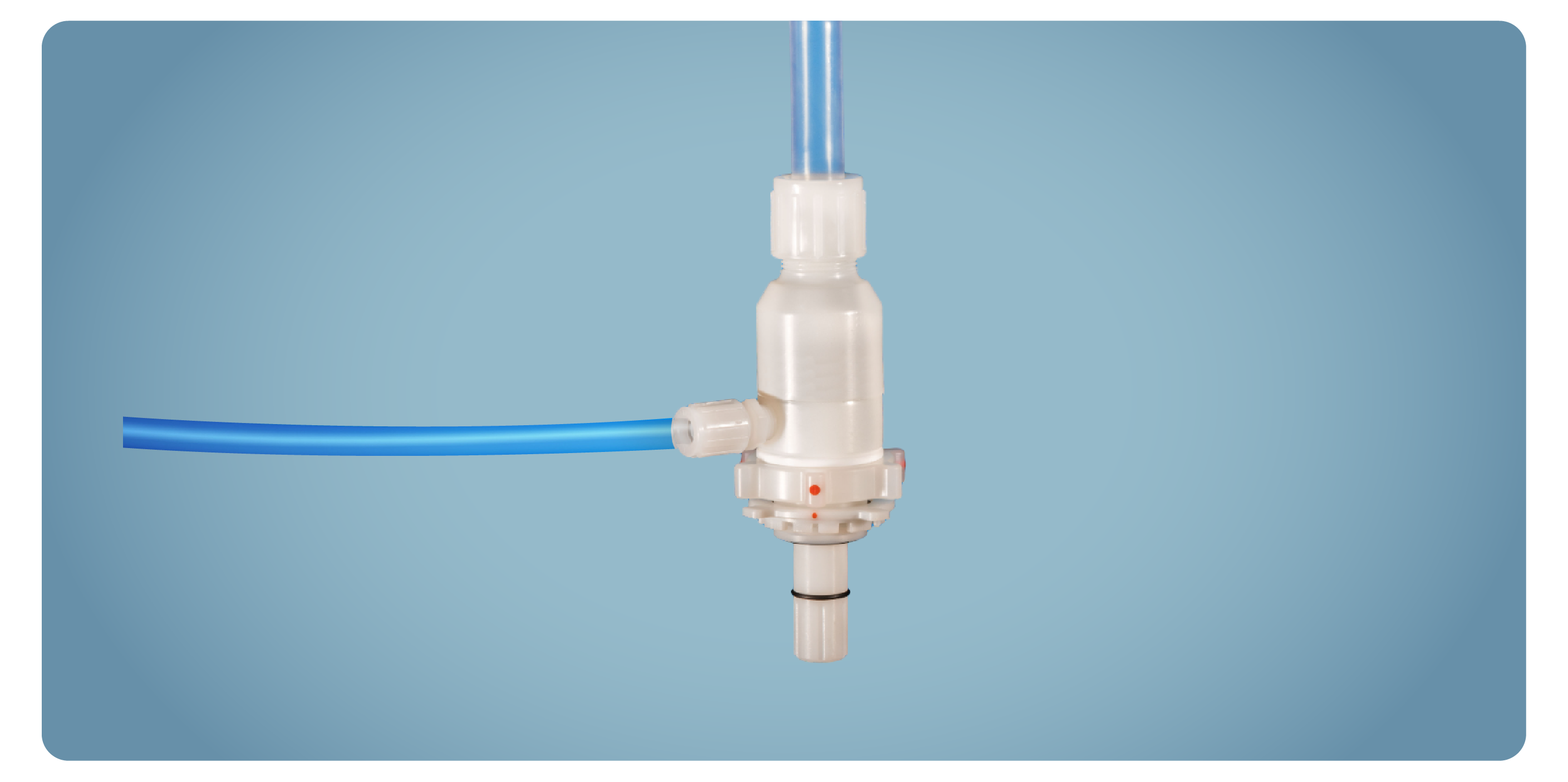

Dispense Head with Integrated Bubble Sensor
