- Ultra-flexible handling
- Ideal for vertical and horizontal installation of the suction line
- More stable compared to usual corrugated PFA tubing due to inwards corrugation
- Straight ends for easy installation

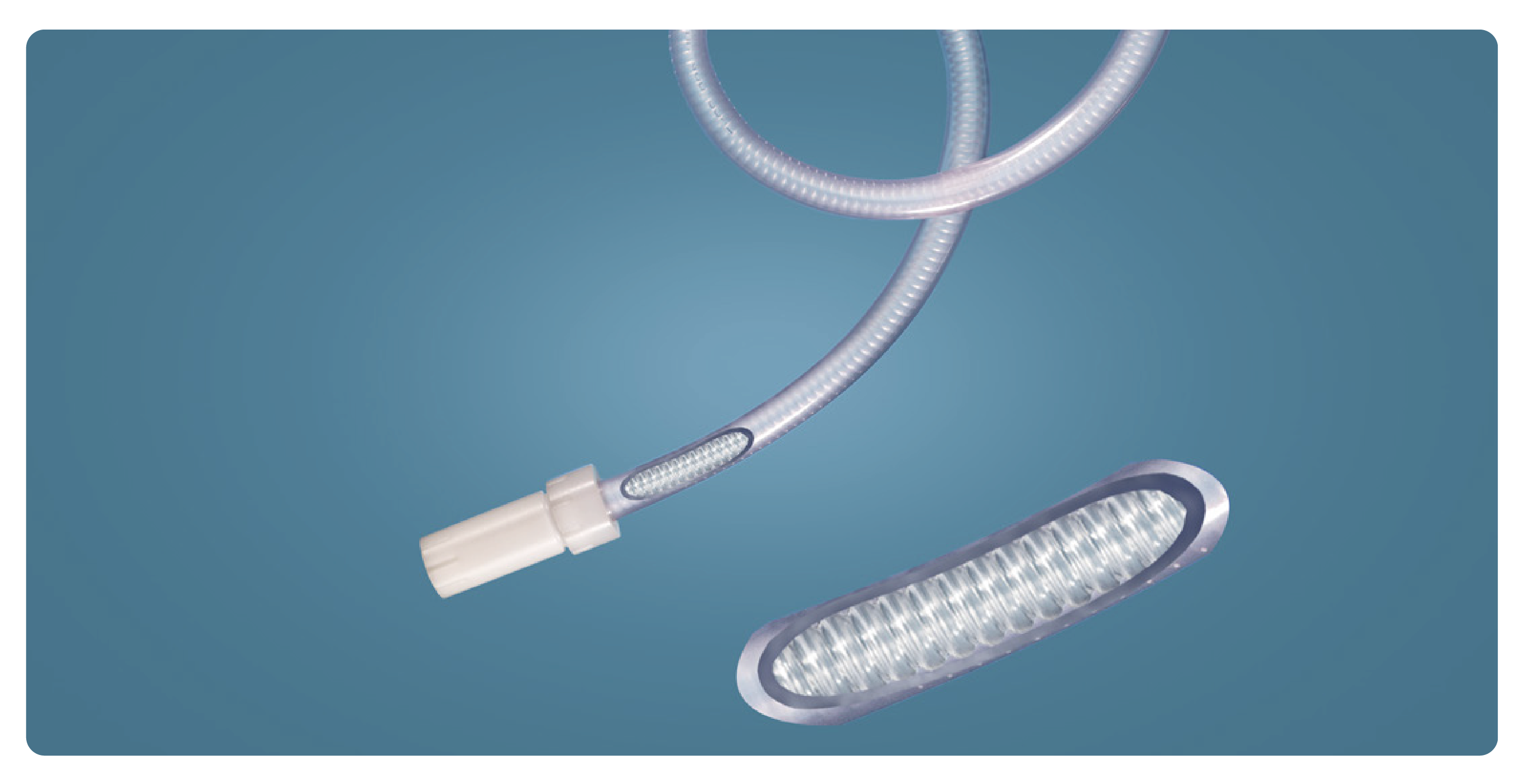

The perfect combination of ultra-flexible PFA corrugated tubing and protective PVC hose for double containment.
Properties:
- Minimum bending radius
- High flexibility can replace rigid piping
- More stable compared to usual corrugated PFA tubing due to inwards corrugation
- Different ultra pure PFA qualities available on request
- Reliable sealing from Flare and anti-kink nut and outside hose; thus provides safety even in case of a leak on the PFA core hose
- Possible to fit sensors, e.g. capacitive sensors, temperature sensor or conductivity sensor
- Perfect in combination with the QC-System
Core hose made of PFA:
The chemical and physical properties of PFA tubes are largely identical to those made of PTFE.
They have an outstanding and almost universal resistance against most chemicals, are ultra-pure and can be used for pharmaceutical applications. The key differences to PTFE are: lowercold flow, improved mechanical properties, lower diffusion, higher purity and better translucency. PFA can be welded.
Technical Data:
| Material core hose | PFA | Material outside hose | PVC |
| Material Connectors | PVDF | Connections | Flare (others available on request) |
| O-Rings (non-wetted) | FKM (Viton®) | Length | 1/2", 3/4"- 1": Standard 1m / 2 m and 3 m; up to 6 m on request |
| Working temperatur | max 60°C |
Available sizes and dimensions:
| PFA | ||||
| Ø Outside | Ø Inner | Wall Thickness** | Working Pressure* | Brust Pressure* |
| Inch | mm | mm | bar | bar |
| 1/2" | 9,50 | 1,60 | 10,70 | 27,40 |
| 3/4" | 15,80 | 1,60 | 4,80 | 12,50 |
| 1" | 22,20 | 1,60 | 2,90 | 7,70 |
| PVC | Ø Outside (mm) | 20,00 | 29,00 | 35,00 |
| Dual hose system | Min. bending radius (mm) | 30 | 40 | 45 |
| Item-no. | R12S134-CT x Length | R12S142-CT x Length | R12S113-CT x Length |
*at 20°C
**at the straight hose ends
