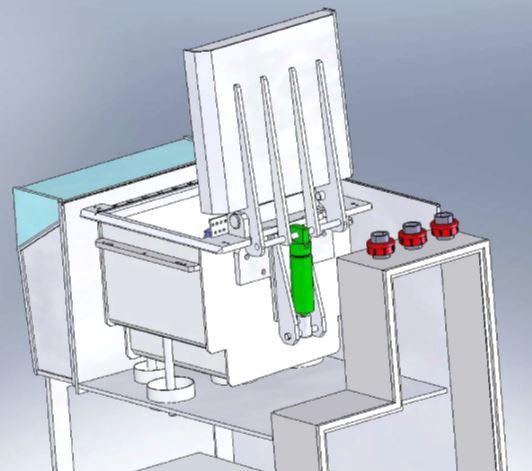

Chemical wet benches, e.g. for etching silicon wafers or glas, get opened pneumatically.
Application:
for chemical plant construction, e.g.
- opening and closing ventilation flaps, electroplating containers, wet benches
- For automated movement processes
Properties:
- Made of chemically resistance plastic (PVC, PP, PVDF etc.)
- Suitable for clean room technology
- Completely free of metals
- Low weight and size
- Stroke length: 25 – 150 mm
- Cylinder diameter: 50 – 60 mm
- Standard compressed air connection: G1/8“
- Also for use with aggressive media
- Gaskets: Kalrez®, Viton®, EPDM etc.
- Custom-made products and special mountings on request.
