Product lines dip tubes

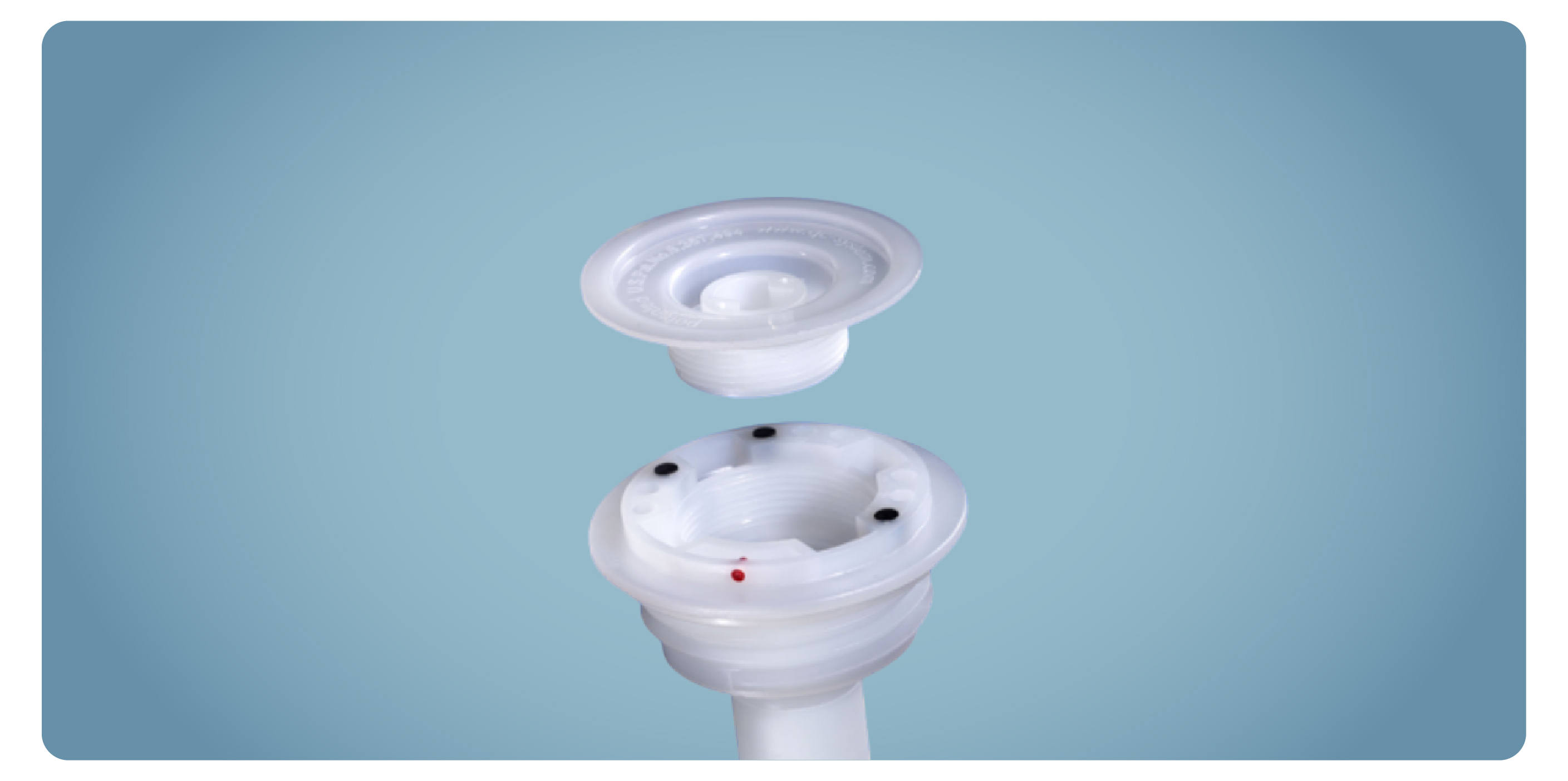

QC3 Dip Tubes

Dispensing, recirculation and ventilation of the container through a single dip tube with the QC3 product line.

Available Materials

High purity
HDPE/PP

Container bung-threads

S62
S64
S70x5
S70x6

Gaskets

LDPE
POE
EPDM

Available lengths

0-1200 mm

Corresponding
Dispense-/Fill Heads

"DH3-"
QC3 product line

In case of questions about transport approvals (UN/DOT) for the different dip tubes and dip tube closures, please contact our technical sales department or the relevant container manufacturer.

Technical Information
Datasheet Dip Tubes general

Please visit our download center for further downloads and other languages. Resources > Downloads.

In this section we would like to show you videos about our products.

To make this possible, we ask you to agree to "targeting", which allows us to show you YouTube videos directly on our site.

Options

Bellows

The flexible bellows at the end of the dip tube can sit on the bottom of the container and thus enables the container to be completely emptied.

learn more →

Manual insertion

If the container is not transported with the dip tube, the dip tube can also be inserted manually by hand.

  • Optional wings at the dip tube stopper
learn more →

Coding pins

Our QC dip tubes can also be purchased uncoded and coded to the appropriate chemical as needed.

learn more →

Type “T” - closed

The alternative to type “S” if a tamper proof closure needs to be attached.

Versions for QC2, QC3, M2-Series.

learn more →
check resistance

This might also interest you

Universal drum wrench

Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.

learn more →

Key-code checker

Our QC dip tubes can also be purchased uncoded and easily be coded to the appropriate chemical as needed.
That reduces warehousing and improves flexibility. The use of key-code checkers helps in this respect and enables error-free operations.

learn more →

Tamper proof closures

To make sure that the container is not opened or otherwise manipulated during transportation, dip tubes can be equipped with tamper proof closures.
learn more →

Docking station for dip tubes

In case the dip tube has to be changed on site, the docking station for dip tubes provides a convenient storage option.

learn more →
