Pump Station PS40

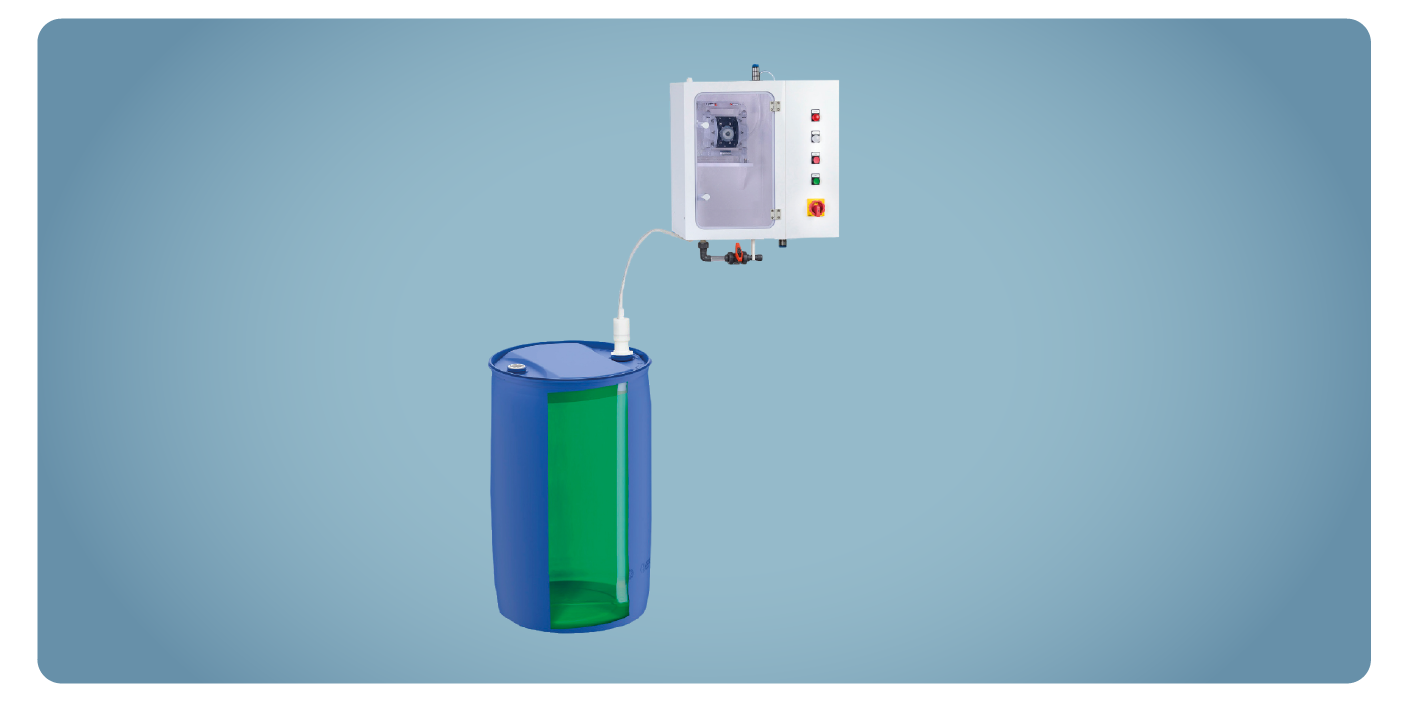

The stationary and ready-to-use dispensing station allows maximum safety and flexibility.
Designed for safe and efficient dispensing of chemicals - the perfect addition for the QC-System.

Pump Cabinet for double containment

  • Made of PP, also available in elec. conductive for hazardous areas
  • Integrated air-pressured diaphragm pump, valves and piping
  • Frontal window (only in non-conductive version)
  • Easy wall mounting
  • All connections for hoses Flare 1/2" or Flare 3/4"
  • Compressed air connection at the bottom
  • Noise reduction

Pump ASDM40

  • Air-pressured diaphragm pump
  • Housing material options: PP, PVDF, Acetal
  • Membrane: PTFE
  • Max. flow rate: 40 l/min
  • Pressure max: 7 bar
  • More information on the ASDM40 data sheet

Switch Box

  • Housing material: PP white
  • Siemens Logo PLC
  • Different Logics available (see function table)
  • Integrated signal lights

Dispense Heads

  • Product lines: QC2 or QC3
  • With or without bubble sensor for automatic shut-off or switch over
  • Material options: HDPE, PVDF, Elec. conductive PP
  • With integrated self-closing check valve, key-code system and vent port

Dip Tubes

  • Get pre-installed by chemical supplier or have to be to be specified according to used container and dispense head product line. Not included with the pump station.

Available Functions

  • Automatic shut-off when leak is detected inside the pump box and visual indication
  • Automatic shut-off when container is empty and visual indication
  • Automatic switch over to second container when other container in empty and visual indication

Version Overview

VersionPS40-0001PS40-0003PS40-0004PS40-0001-CD
Pump cabinet
PPPPPPPP elec.
Pump
PP or PVDF
PP or PVDF
PP or PVDF
Acetal
Switch Box -
-
Leakage Alarm
-
-
Shut-off when
empty

-
-
-
Switch over to 2nd container
-
-
-
Included Accessory
1x Dispense Head QC2 with
1x Convoluted T ubing PFA
1/2" 1100 mm
1x Universal drum wrench
QC2 PE
1x Docking Station QC2 PE
1x Dispense Head QC2 with
integrated bubble sensor
1x Convoluted T ubing PFA
1/2" 1100 mm
1x Universal drum wrench
QC2 PE
1x Docking Station QC2 PE
2x Dispense Head QC2 with
integrated bubble sensor
2x Convoluted T ubing PFA
1/2" 1100 mm
1x Universal drum wrench
QC2 PE
2x Docking Station QC2 PE
1x Dispense Head QC2 CD
1x Convoluted T ubing PFA
1/2" 1100 mm elec. co nductive
1x Universal drum wrench
QC2 CD
1x Docking Station QC2 CD
check resistance
