Options Dip Tubes

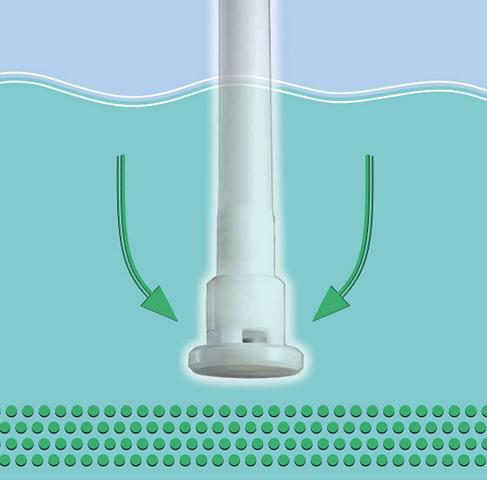

Dip tubes with bottom-plate enable suction above the settled, too large particle aggregates in slurries.
| Available in product lines | QC2 G-Series |
In the 7nm manufacturing technology, many different polishing processes are required. Therefore, various CMP mixtures have been developed to achieve high selectivity. The extremely fine structures need to be protected from scratches and damage by aggregated, larger
particles.
Dip tubes made of electrically conductive plastic, for dispensing flammable liquids and for use in explosive atmospheres.
If the container is not transported with the dip tube, the dip tube can also be inserted manually by hand.
Dip tubes with an integrated check valve seal the container up to the connection of the Dispense Head.
A film made of PP inserted in the dip tube acts as an emission protection when connecting the Dispense Head.
Our QC dip tubes can also be purchased uncoded and coded to the appropriate chemical as needed.
The most widespread dip tube closure in the form of a 3/4” or 1” stopper.
The ventilated version of type “S” with integrated PTFE non-woven fabric. Suitable for the transportation of hydrogen peroxide.
Versions for QC2, G-Series, M2-Series
The alternative to type “S” if a tamper proof closure needs to be attached.
Versions for QC2, QC3, M2-Series.
The ventilated version of type “T” with integrated PTFE non-woven fabric. Suitable for the transportation of hydrogen peroxide.
Versions for QC2, QC3, M2-Series.
The “SU” type offers double protection during transportation. The closure is screwed into the dip tube in addition to the “S” closure.
Manual pressure relief valves allow a controlled compensation of the pressure inside the container.
Universal drum wrench for safely opening, closing and fitting dip tubes and screw plugs.
Our QC dip tubes can also be purchased uncoded and easily be coded to the appropriate chemical as needed.
That reduces warehousing and improves flexibility. The use of key-code checkers helps in this respect and enables error-free operations.
In case the dip tube has to be changed on site, the docking station for dip tubes provides a convenient storage option.
