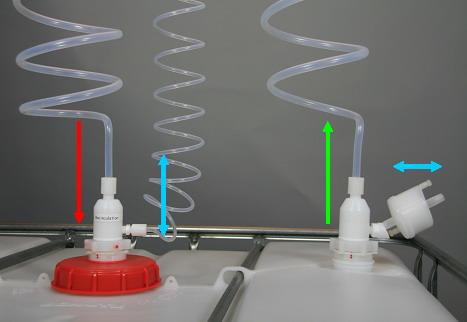

For a stress-free installation and flexible handling of the QC system. Ideal for vertical installation of the suction line.
Properties:
- Flare connections on both ends of the tube
- Nominal widths: 1/4", 3/8“, 1/2" and 3/4"
- Easily goes back into the spiralled starting position after use
- Ultra-pure resin
- Also suitable for applications with dosing pumps
- At least 4 cm-long straight hose ends on both sides so that the QC Dispense Head can easily be connected with the flare connecting system.
- PFA version antistatic: Outer layer conductive for applications in EX areas - inner layer virgin PFA
Properties of PFA:
The chemical and physical properties of PFA tubes are largely identical to those made of PTFE.
They have an outstanding and almost universal resistance against most chemicals, are ultra-pure and can be used for pharmaceutical applications. The key differences to PTFE are: lowercold flow, improved mechanical properties, lower diffusion, higher purity and better translucency. PFA can be welded.
Versions:

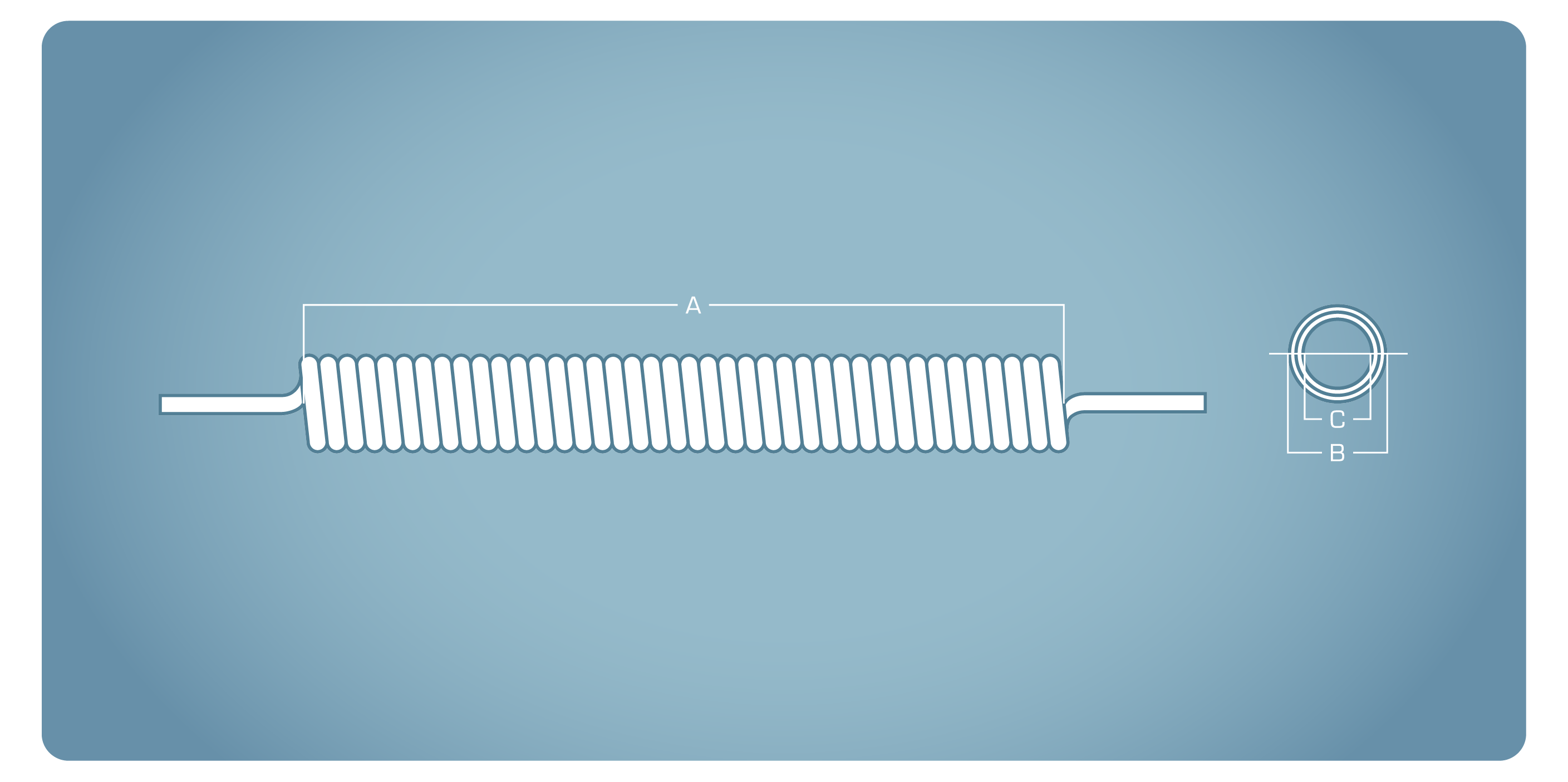

| Material | Size in Inch | Usable length in meters | Turning dimensions in mm/inch A B C | Dimensions tubing in mm/inch ID OD | Item-no. |
| PFA virgin* | 1/4" 3/8" 1/2" 3/4" | 1.5 2.4 2.2 3 | 115/4.53 - 80/3.15 - 65/2.56 165/6.50 - 130/5.12 - 110/4.33 210/8.27 - 160/6.30 - 135/5.31 290/11.42 - 210/8.27 - 165/6.50 | 4.5/ 3/2" - 6.4/ 1/4" 6.4 /1/4" - 9.5 /3/8" 9.4 /3/8" - 12.6 /1/2" 15.7/5/8" - 19.1 /3/4" | PFAW-06 PFAW-09 PFAW-12 PFAW-19 |
| PFA antistatic (outside) PFA virgin (inside) | 1/2" 1/2" 3/4" 3/4" | 1.1 | 105/ 4.13 - 165/6.50 - 135 /5.31 210/8.27 - 165/6.50 - 135/5.31 145/5.71- 215/8.46 - 180/7.09 290/11.42 - 215/8.46 - 180/7.09 | 9.4 /3/8" - 12.6 /1/2" 9.4 /3/8" - 12.6 /1/2" 15.7/5/8" - 19.1/3/4" 15.7/5/8" - 19.1 /3/4" | PFAW-12CD PFAW-1222CD PFAW-19CD PFAW-1930CD |
*also available in half length
