Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation.

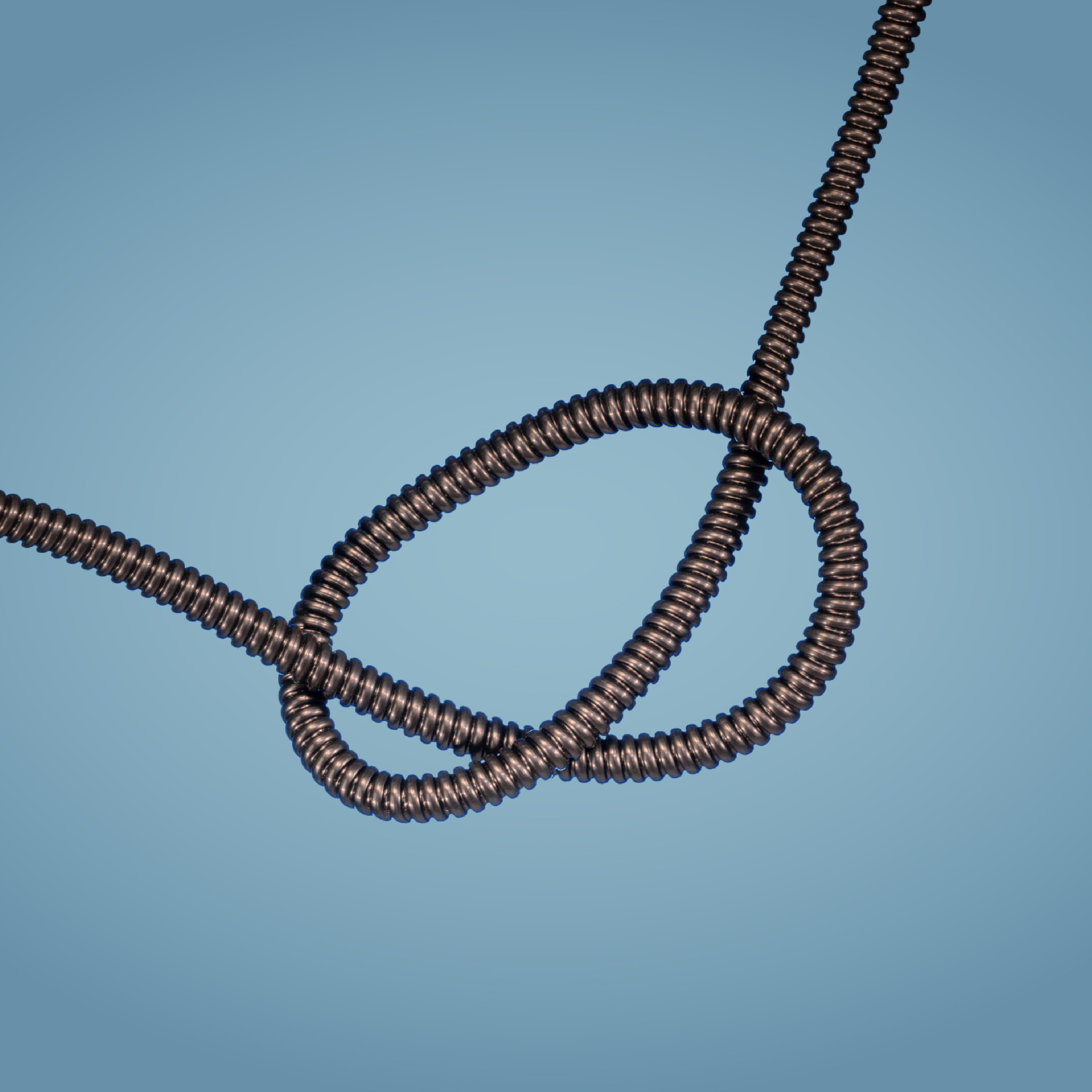

Co-extruded Corrugated tubing with antistatic outer layer enable ultra-flexible handling of the QC-System. Ideal for vertical and horizontal installation of the suction line.
- Conductive Flare connections on both ends.
- Norminal widths: 1/2", 3/4"
- Max Length:
- 1/2" up to 3 meters
- 3/4" up to 6 meters
- More stable compared to common corrugated PFA tubing due to inwards corrugation.
- 10cm-long straight hose ends on both sides so that the QC Dispense Head can easily be connected with the flare connecting system.
Properties of PFA:
The chemical and physical properties of PFA tubes are largely identical to those made of PTFE.
They have an outstanding and almost universal resistance against most chemicals, are ultra-pure and can be used for pharmaceutical applications.
The key differences to PTFE are: lower cold flow, improved mechanical properties, lower diffusion, higher purity and better translucency. PFA can be welded.
|Ø Outside||Ø Inner||Wall Thickness**||Working Pressure*||Brust Pressure*||Bending radius |
**at the straight hose ends
|Material||Size in Inch||Usability length in mm*||Item-no.|
|inside PFA virgin|
outside antistatic PFA
*incl. Flare nuts made of CD/PVDF on both ends.
Further lengths and nominal widths on request.
