PFA-Tubing

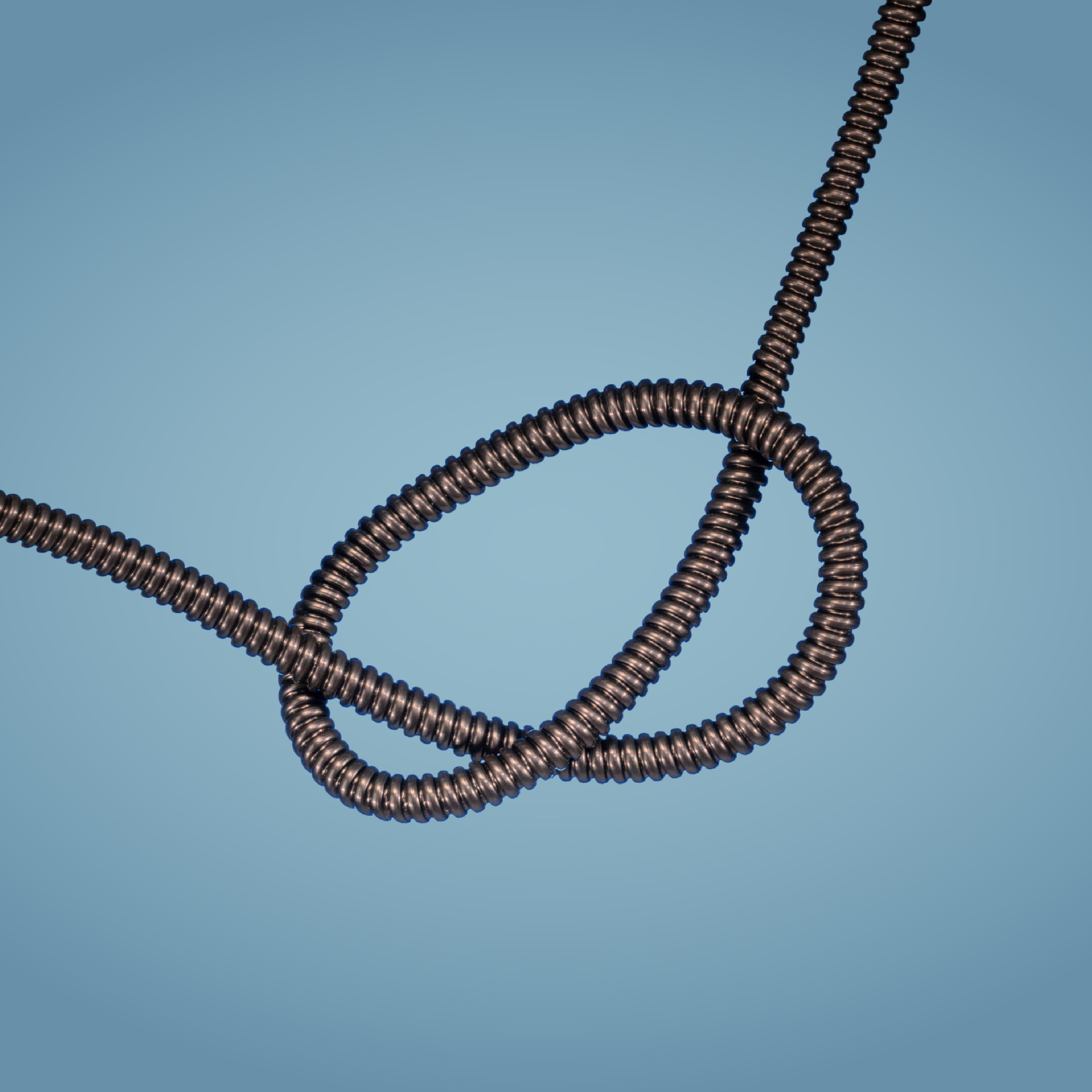

Corrugated PFA Tubing with Antistatic Outer Layer

Co-extruded Corrugated tubing with antistatic outer layer enable ultra-flexible handling of the QC-System. Ideal for vertical and horizontal installation of the suction line.

Features:

  • Inner layer made of high purity PFA
  • Almost universal chemical resistance
  • Conductive flare connections on both ends of tube
  • More stable compared to usual corrugated PFA tubing due to inwards corrugation
  • 10 cm-long straight hose ends on both sides so that the QC® Dispense Head can easily be connected with the flare connecting system

Properties of PFA:

The chemical and physical properties of PFA tubes are largely identical to those made of PTFE.
They have an outstanding and almost universal resistance against most chemicals, are ultra-pure and can be used for pharmaceutical applications.
The key differences to PTFE are: lower cold flow, improved mechanical properties, lower diffusion, higher purity and better translucency. PFA can be welded.

Technical Specifications:

Material
  • Inside PFA natural
  • Outside made of antistatic PFA
Maximum Length
  • 3/8″ up to 1.5 m
  • 1/2″ up to 3 m
  • 3/4″ up to 6 m
Working Temperature
  • Up to 60° C
Connection ends
  • 10 cm straight ends on both sides


*Incl flare nuts made of CD/PVDF pre-assembled on both sides.
*Tubes without expansion on request.



Technical Data:

PFA
Ø Outside Ø InnerWall Thickness**Working Pressure*
Brust Pressure*Bending radius
Inchmm/inchmm/inchbar/PSIbar/PSImm/inch
3/8"6.3 / 1/4"1.6 / 1/16"8.5 / 12328 / 4068 / 0.31
1/2"9.5 / 3/8"1.6 / 1/16"7 / 10125 / 36215 / 0.59
3/4"15.8 / 5/8"1.6 / 1/16"4.5 / 6510 / 14520 / 0.79

*at 20°C

**at the straight hose ends

Standard Versions:

MaterialSize in InchUsability length in meters
Item-no.
inside PFA virgin
outside antistatic PFA

  • 3/8"
  • 3/8"
  • 1/2"
  • 1/2"
  • 1/2"
  • 1/2"
  • 3/4"
  • 3/4"
  • 3/4"
  • 3/4"
  • 1
  • 1.5
  • 1
  • 1.5
  • 2
  • 3
  • 1
  • 1.5
  • 2
  • 3




  • R12S123-CD-CT-1-230-FL
  • R12S123-CD-CT-1.5-230-FL
  • R12S121-CD-CT-1-230-FL
  • R12S121-CD-CT-1,5-230-FL
  • R12S121-CD-CT-2-230-FL
  • R12S121-CD-CT-3-230-FL
  • R12S122-CD-CT-1-230-FL
  • R12S122-CD-CT-1,5-230-FL
  • R12S122-CD-CT-2-230-FL
  • R12S122-CD-CT-3-230-FL

*incl. Flare nuts made of CD/PVDF on both ends.

Further lengths and nominal widths on request.
