Dispense and Fill Heads seal in the docking station which has an additional port at the bottom.
This port can be used to connect a rinsing line and rinse the whole system including dispense head, hose and pump.
Safe and reliable storage unit for dispense and fill heads during container change

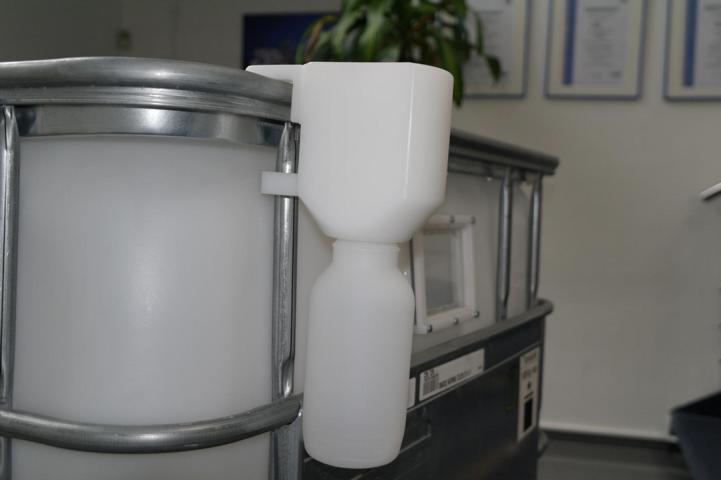

- Versions for wall mounting or for hanging on the container.
- Enables flushing of the dispense/fill head and the system line (flare connection on the underside).
- Collection bottle included.
- Storage for drum wrench and dip tube closures.
Versions:
| Product line | Qty. of storable dispense heads | Mountig | Material | Space to store universal wrench | Incl. bottle | Item-no. |
| QC2 | 1 | Wall | HDPE | Yes | Yes | RDC-89740 |
| QC2 | 1 | Wall | Elec. conductive | No | No | RDC-89740-CD |
| QC2 | 1 | Container | HDPE | No | Yes | Standard IBC: RDC-89740-S Rikutec IBC: RDC-89740-R |
| QC2 | 2 | Wall | HDPE | No | Yes | RDC-89741 |
| QC2 with limit switch | 1 | Wall | HDPE | Yes | Yes | RDC-89755 |
| QC3 | 1 | Wall | HDPE | No | Yes | RDC-89743 |
| G-Series | 1 | Wall | HDPE | Yes | Yes | RDC-89750 |
| G-Series | 1 | Wall | Elec. conductive | No | No | RDC-89754 |
| G-Series | 1 | Container | HDPE | No | Yes | Standard 200 l Drum: RDC-89752 |
| G-Series | 2 | Wall | HDPE | No | No | RDC-89753 |
| G-Series with limit switch | 1 | Wall | HDPE | Yes | Yes | RDC-89756 |
