Options Dispense and Fill Heads

Fill Heads with integrated N2-blanketing port

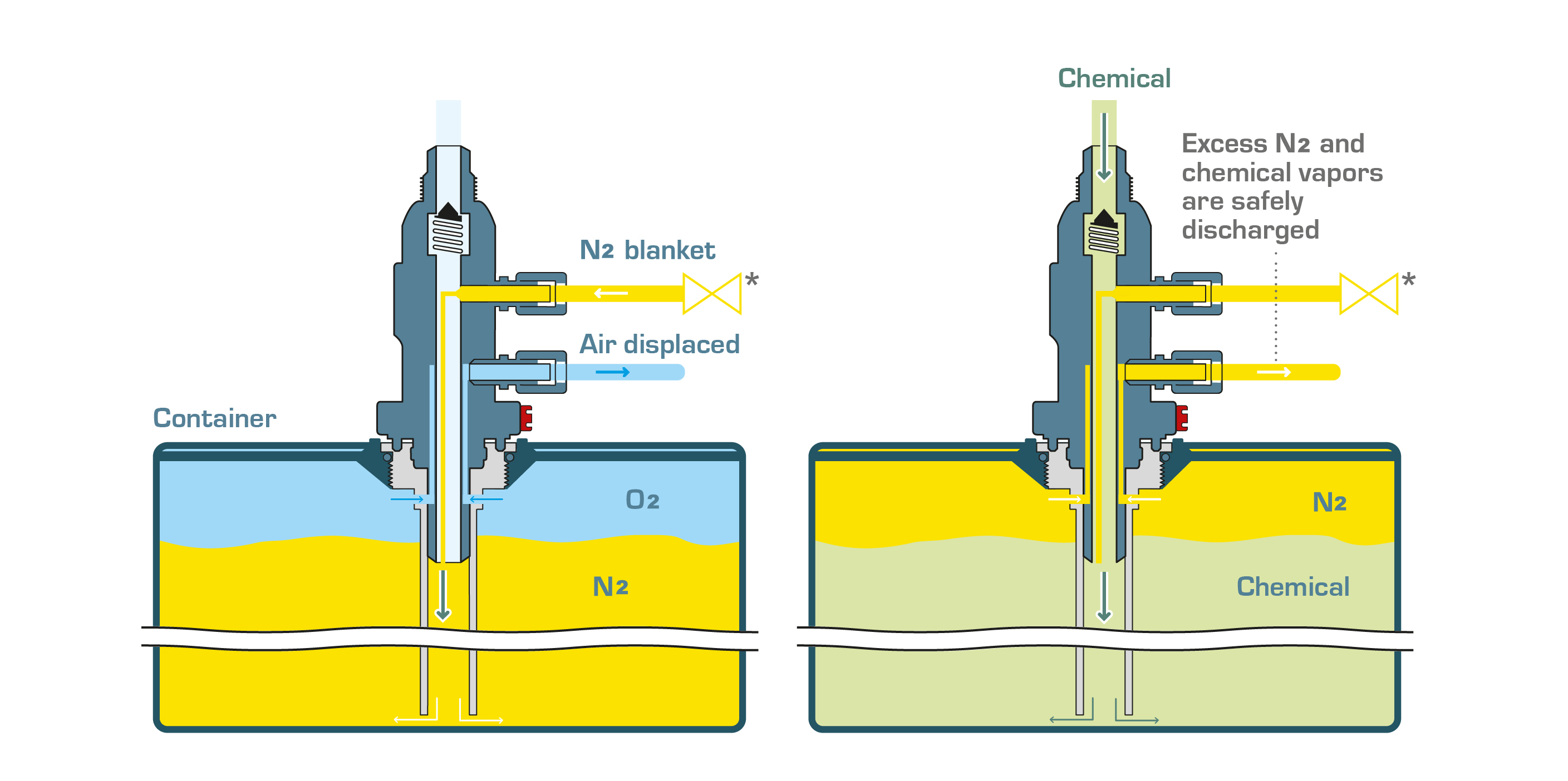

Fill Heads with an additional N2 connection allow you to efficiently blanket your containers with nitrogen and then fill them with chemicals without any additional handling. Completely without outgassing in a closed system.

Properties:

  • Allows efficient blanketing with nitrogen before the filling process.
  • Has an additional vent connection.
  • The system does not have to be opened inbetween the nitrogen blanketing and filling with chemicals.
  • No uncontrolled nitrogen loss as with open systems.

Available in product lines

QC2
G-Series


Flow rate (max)

25 l/min
Product line QC2

100 l/min

Product line G-Series

Valves

Check Valve
self-closing made from fluoropolymer

Available Material

High purity
HDPE
PVDF
PCTFE

Elec. conductive

PP
PVDF
PFA

Gaskets

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Liquid-Connection

Vertical or horizontal
Flare 3/8", 1/2", 3/4", 1"
Tri-Clamp
FNPT / MNPT
BSP
Hose connector
Camlock

Vent-Connection

Vertical
FNPT3/8"
Flare 1/4", 3/8", 1/2"

Item Numbers ExamplesQC2
DH-RK-CD-020-HF1/2"-F1/4"-N2
G-Series
GH-RK-PE-020-F3/4"-F3/8"-N2
*ending "-N2" at the end of the article number
Technical Information
Integrated N2 Blanketing Port Data Sheet

Please visit our download center for further downloads and other languages. Resources > Downloads.
