Options Dispense and Fill Heads

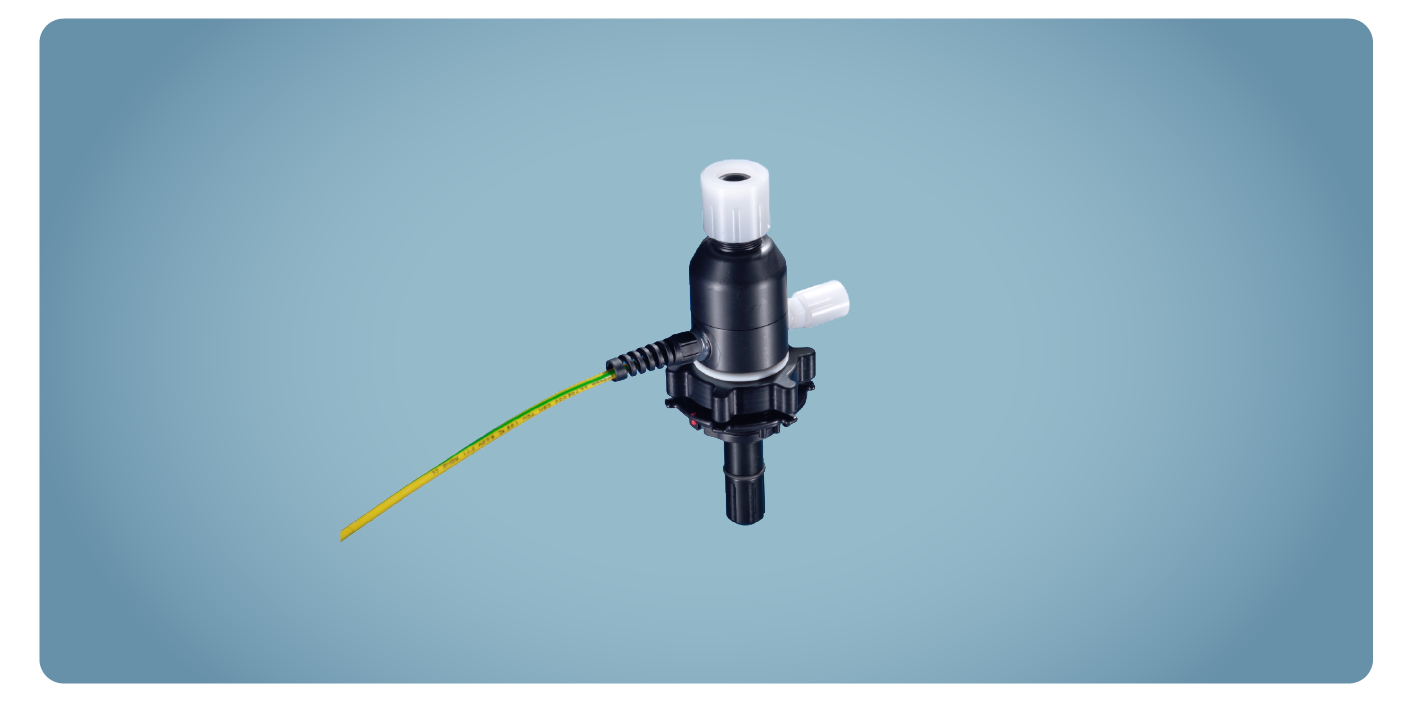

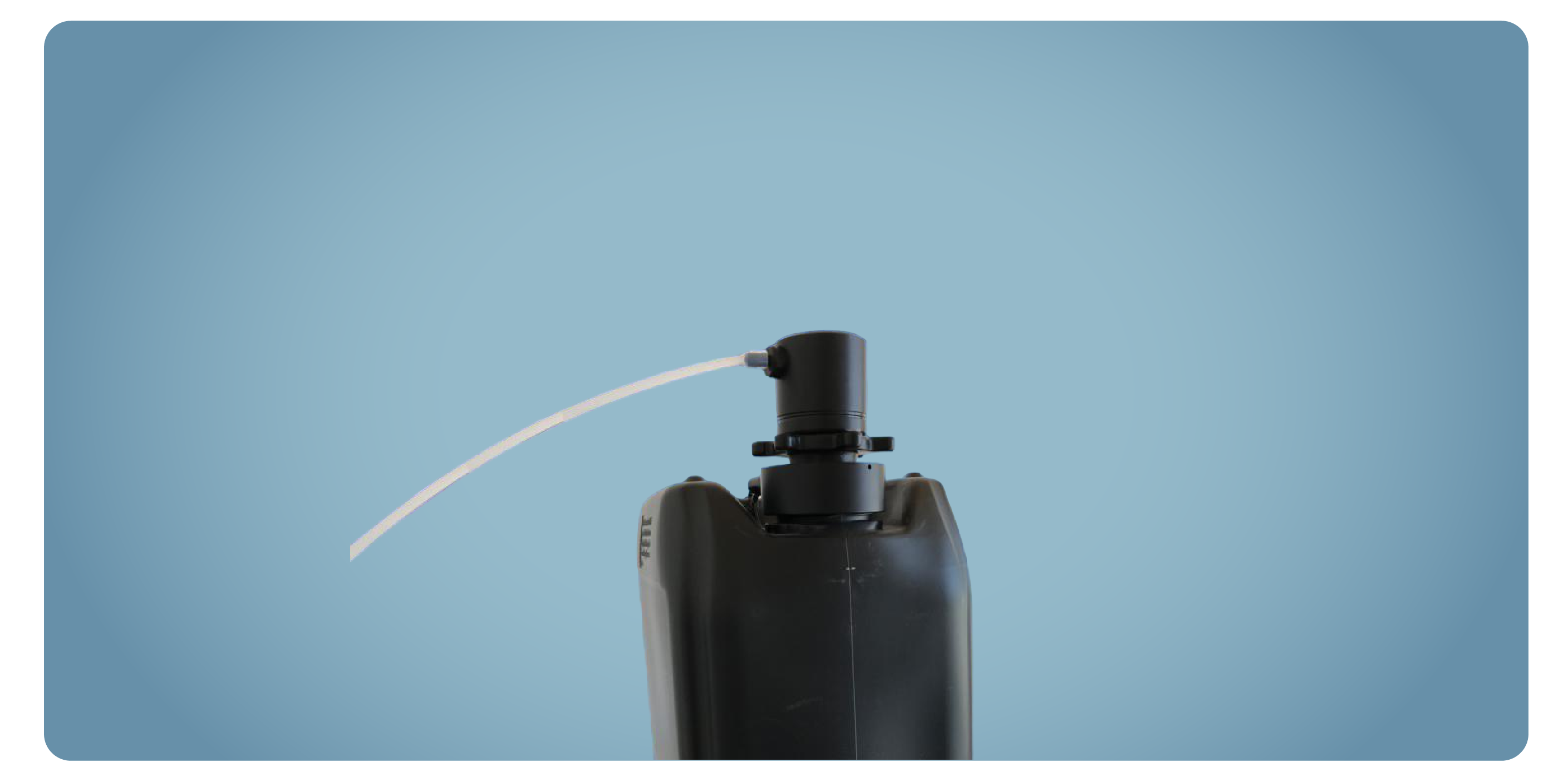

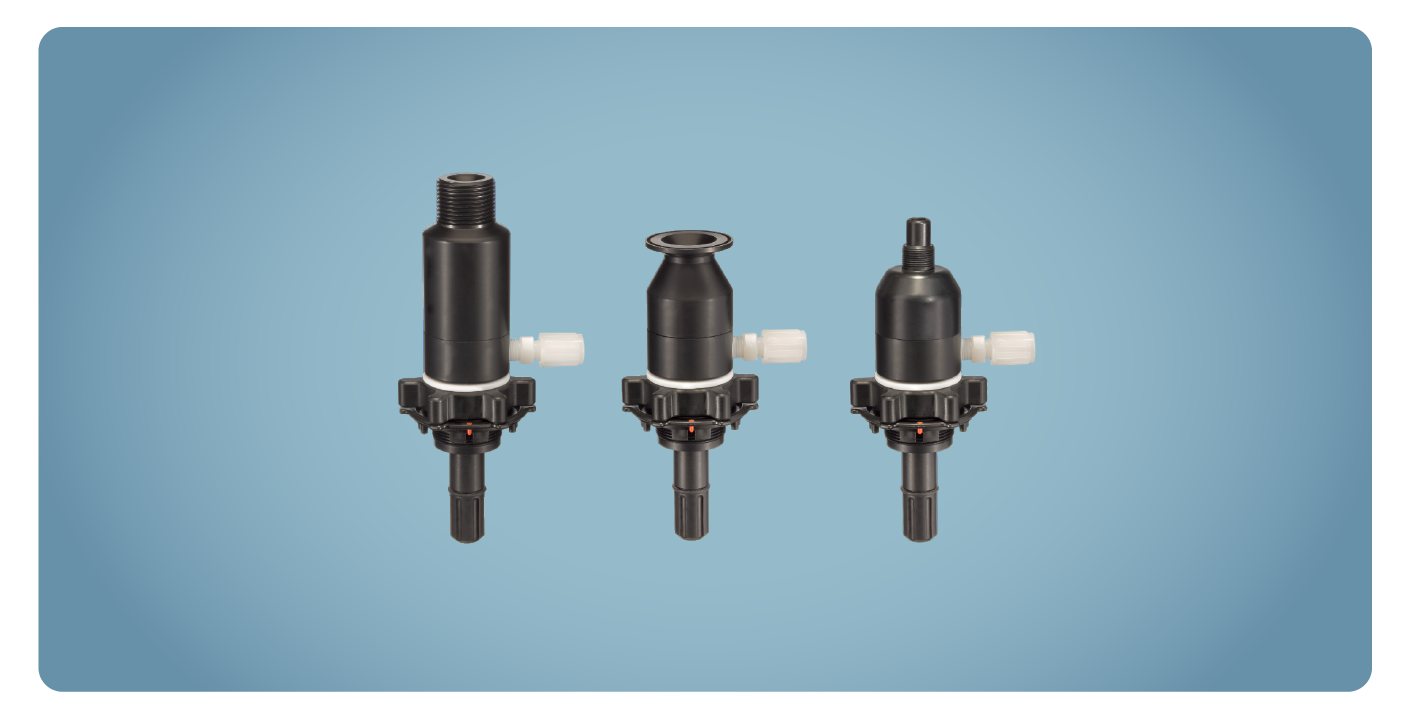

Electrically conductive Dispense and Fill Heads

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments.

Configure it now!

  • Manufactured entirely from plastic, no metal parts
  • Safe in hazardous areas
  • The conductive version is electrostatically safe in accordance with Cenelec Technical Report TR 50404:2003.

Available in product lines

QC2
G-Series
M2-Series

Flow Rate (max)

< 2 l/min
Product line
M2-Series

25-50 l/min

Product line QC2

100 l/min

Product line G-Series

Valves

Check Valve
self-closing made from fluoropolymer

Turncock (QC2)
manual

Available materials

Electrically conductive
PP
PVDF
PFA
Stainless Steel

Gaskets

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Grounding

Prior to commissioning the Dispense / Fill Heads and Dip Tubes have to be grounded appropriately.

Dispense- / Fill Heads:
Grounding with incorporated grounding wire.

Dip Tubes:

Grounding with optional grounding wire, contact ring or grounding clamp.

Related Dip Tubes

Electrically conductiv version CD

Technical Information

Please visit our download center for further downloads and other languages. Resources > Downloads.
