Product lines

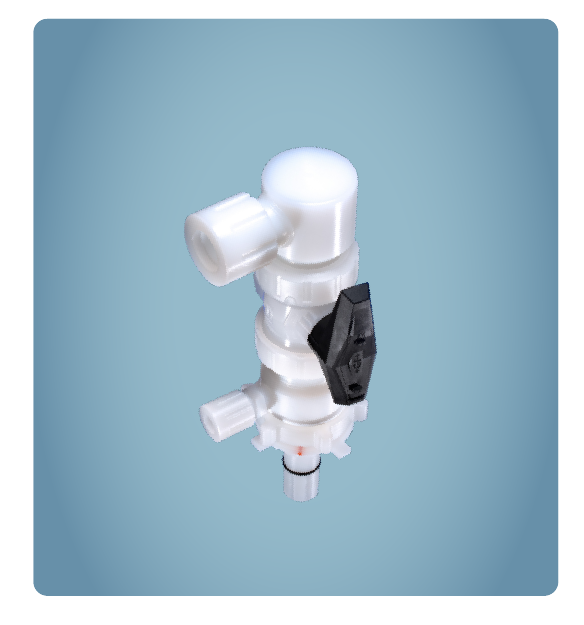

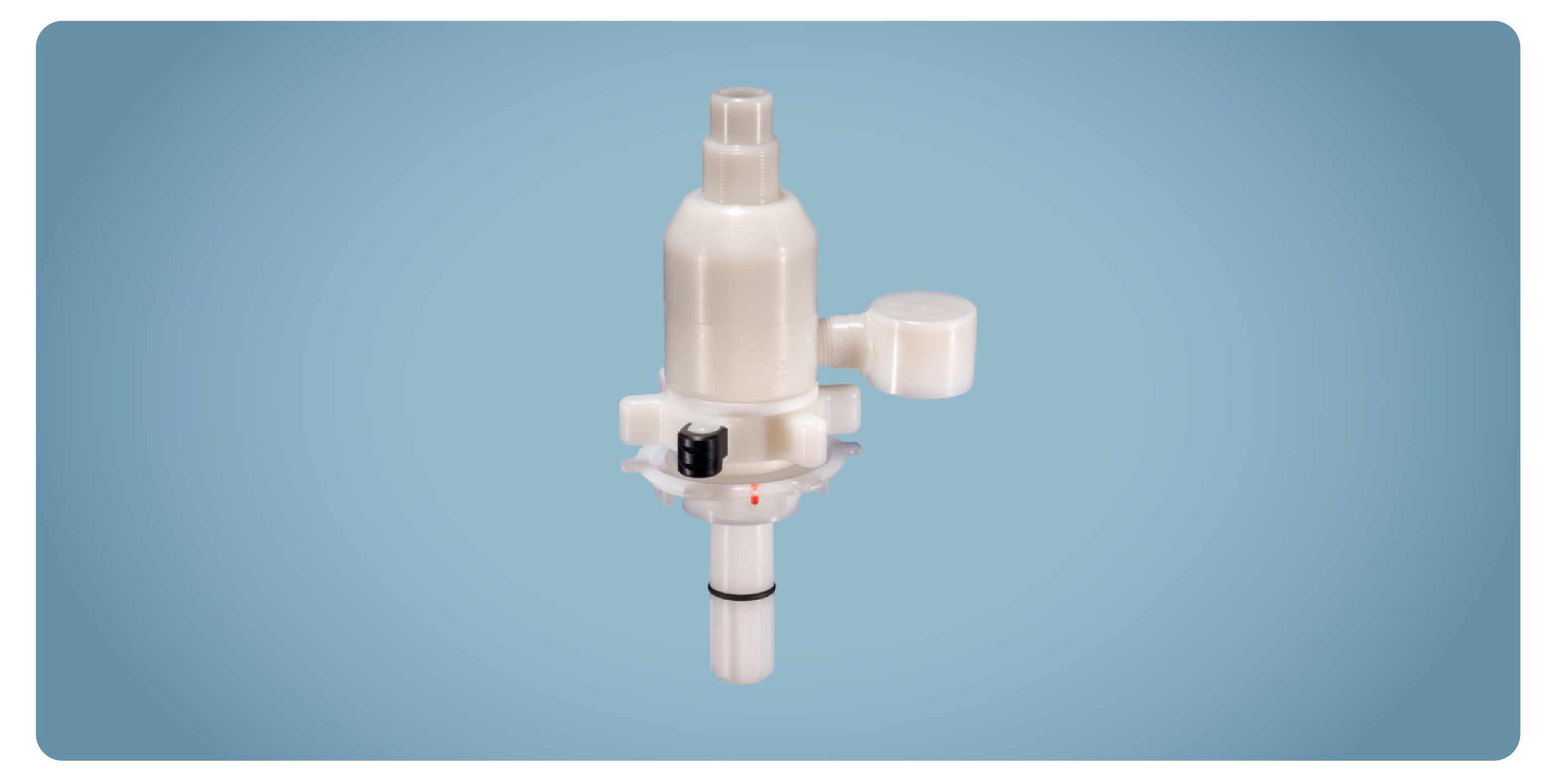

G-Series

With a construction based on the QC2 product line, the larger design of the G-Series Dispense and Fill Heads enables even higher flow rates of up to 150 l/min.

Flow rate (max)

100 l/min
with check valve
150 l/min

mit Ball valve

Valves

Check valve
self-closing, made from fluoropolymer

Ball valve
manual, made from PP or PVDF
with FKM seals (alternatively FFKM or EPDM)

Available Materials

High-purity
HDPE
PVDF
PCTFE

Elec. conductive

PP
PVDF
PFA

Seals

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Liquid-Connection

Vertical oder horizontal
Flare 1/2", 3/4", 1"
Tri-Clamp
NPT (Female / male)
BSP (Female / male)
Hose Connector
Camlock

Vent-Connection

Vertical
NPT1/2" (IG)
Flare 3/8", 1/2", 3/4"

Corresponding dip tubes

"GT2"

Datasheet G-Series
Technical Information
Instruction Dispense Heads QC2 and G-Series

Please visit our download center for further downloads and other languages. Resources > Downloads.

Options

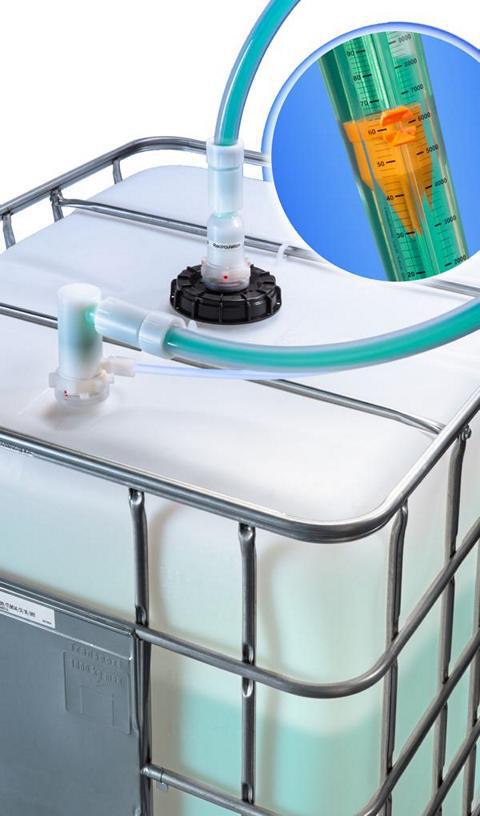

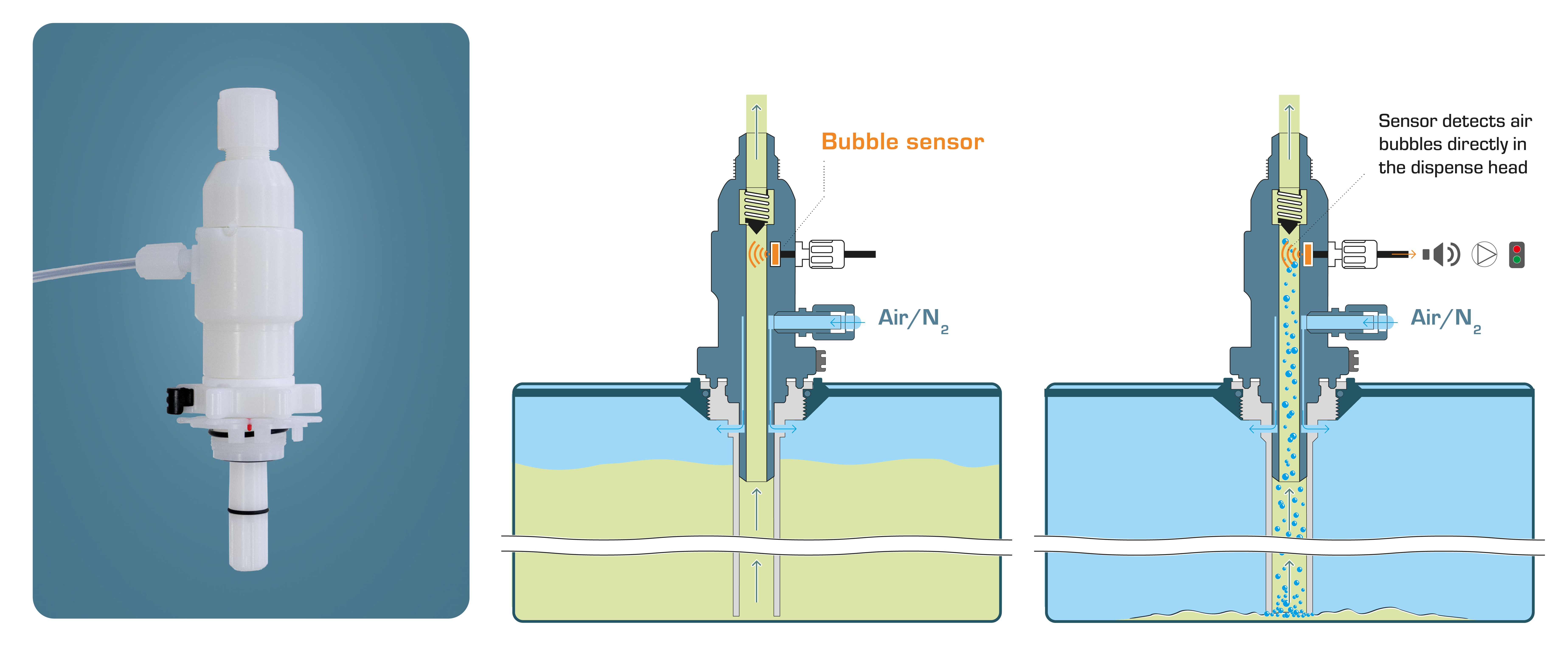

Dispense Head with Integrated Bubble Sensor

Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation. Features: Signaling when the container is completely ...
learn more →

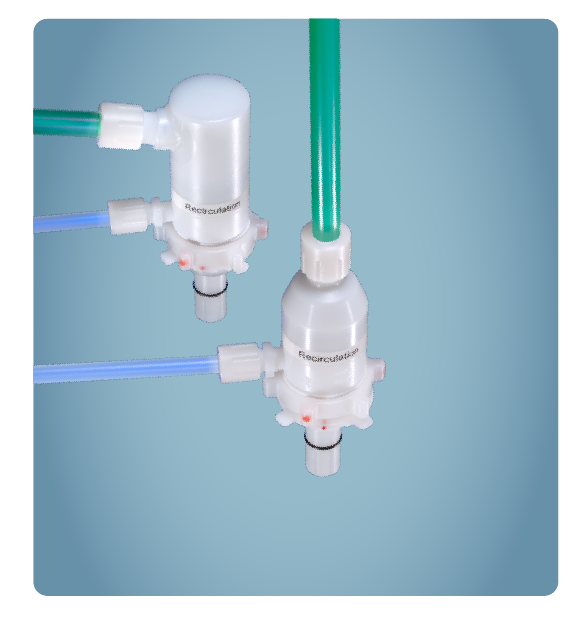

Fill and Dispense Heads with Limit Switch

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube.Features: Flexible applications: Signal of secure and tight connection after co...
learn more →

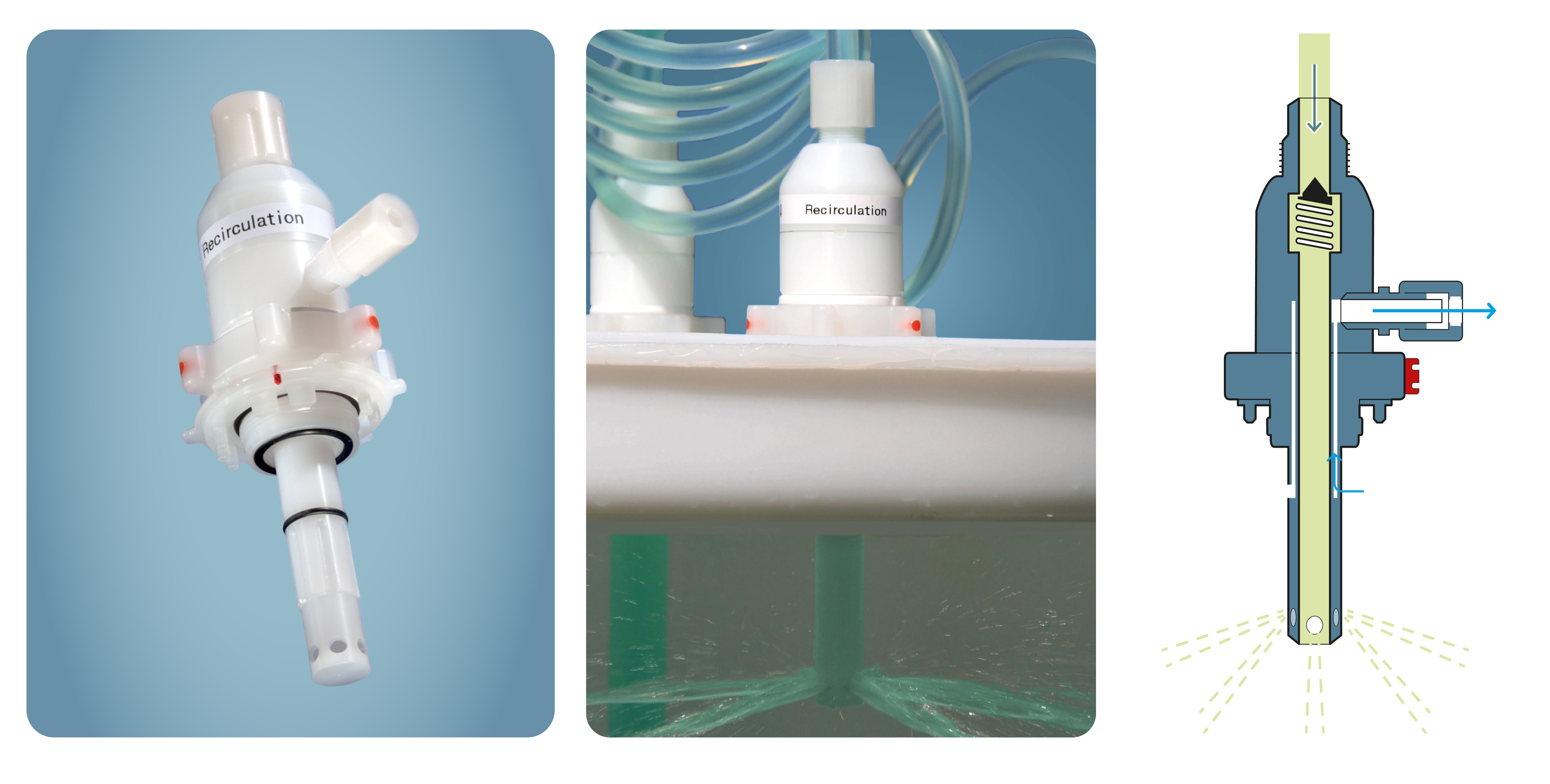

Fill Head with Mixing Nozzle

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers. Features: Optimum mixing results in the shortest time possible due t...
learn more →

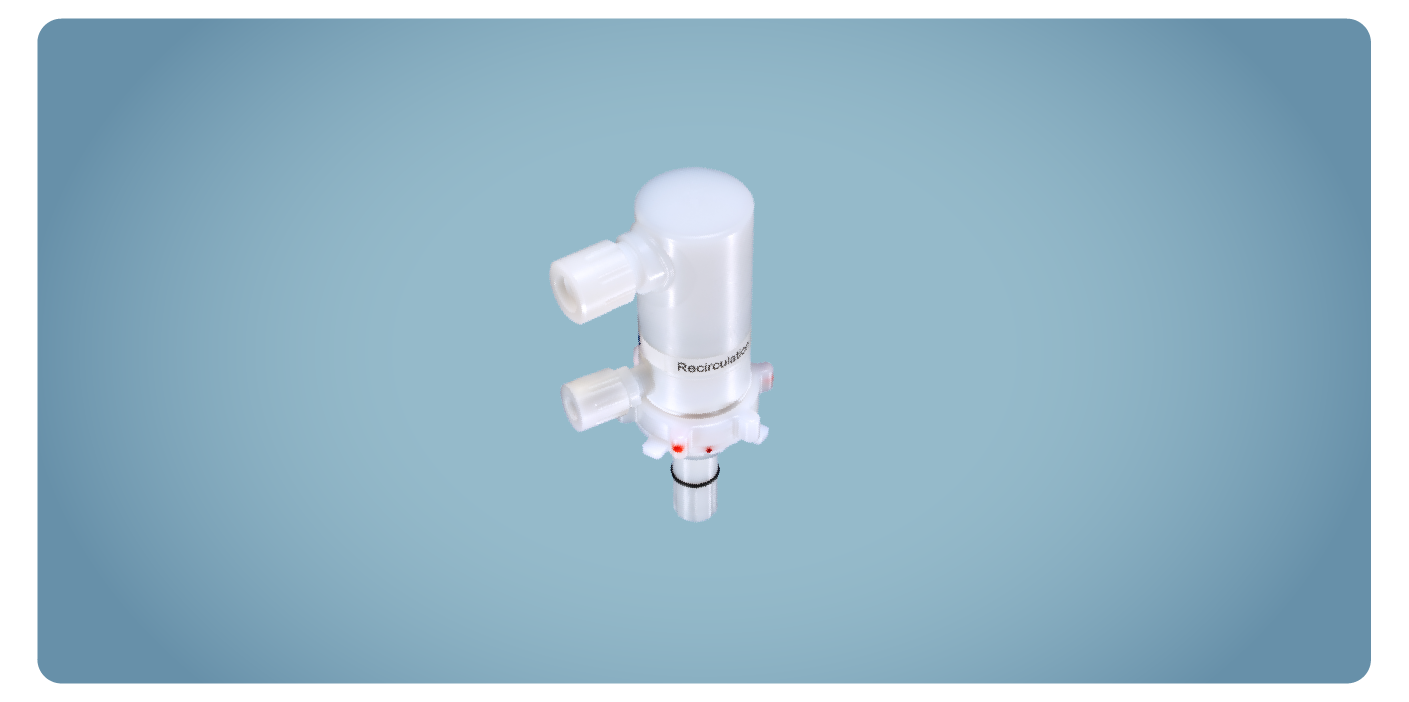

Fill Heads with integrated N2-blanketing port

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop. Available in product lines QC2 G-Series ...
learn more →

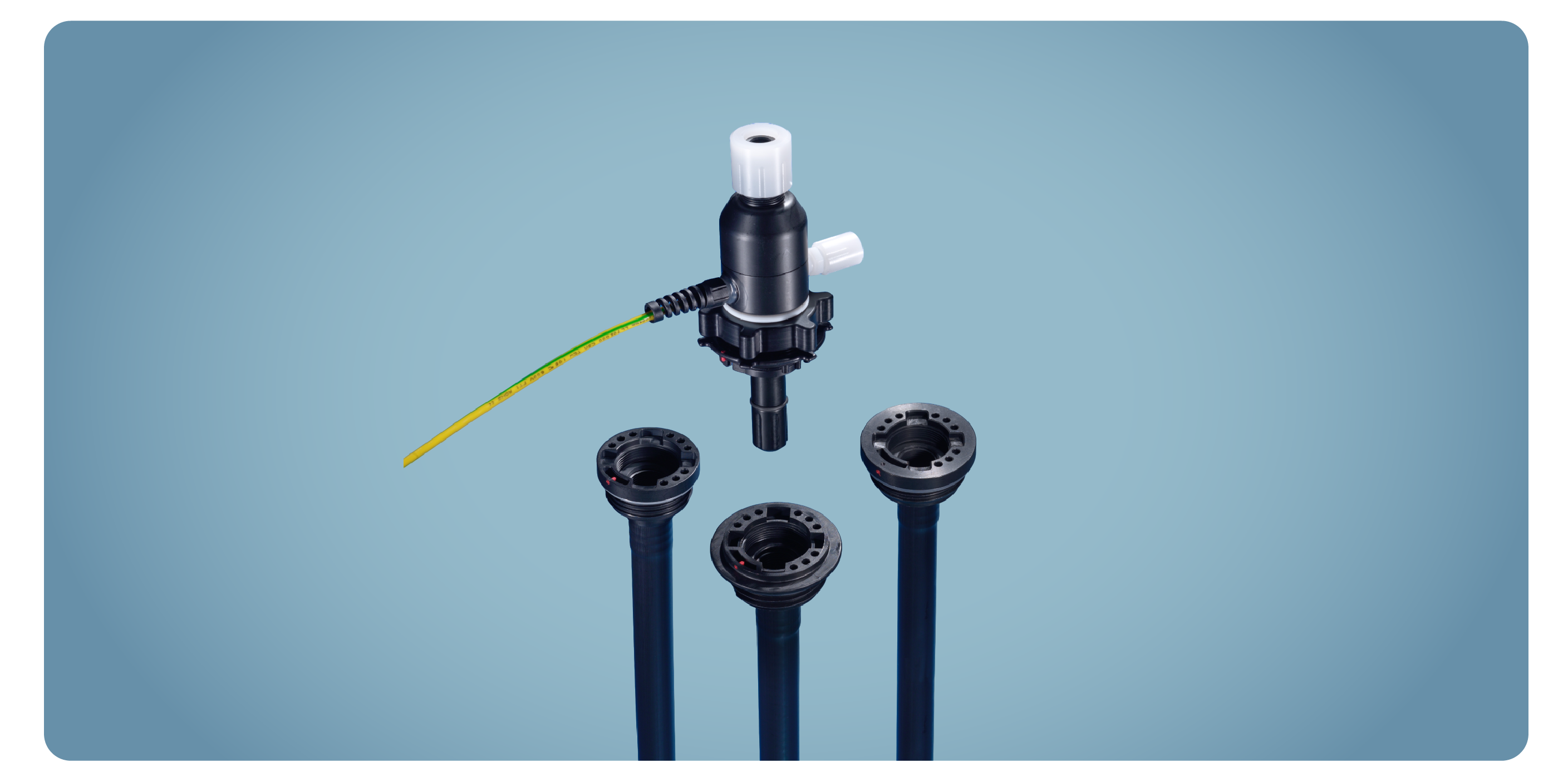

Electrically conductive

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments. Manufactured entirely from plastic,...
learn more →

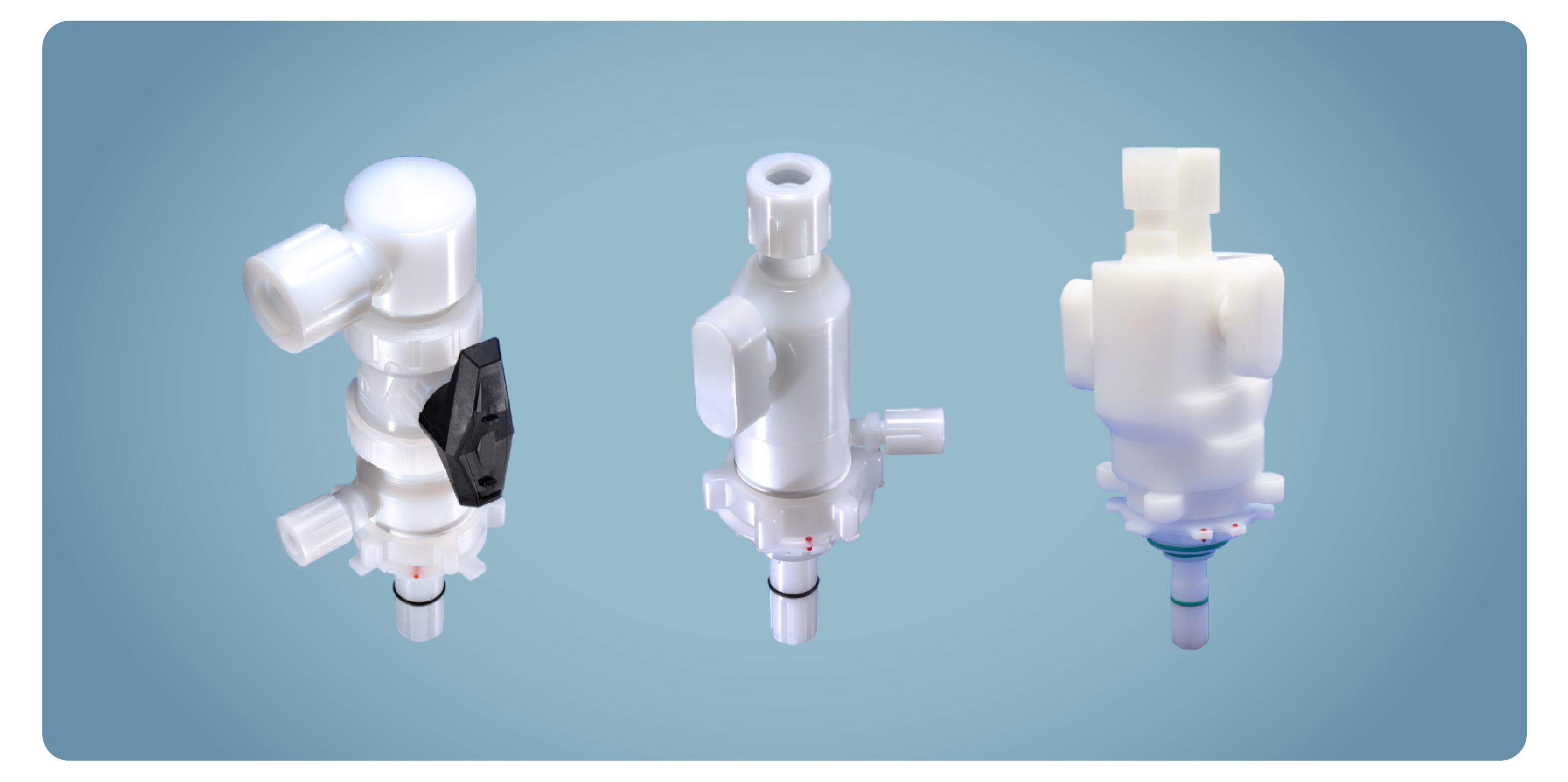

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications: Higher flow rates No flow losses due to check valve Can be used in both flow directions Particul...
learn more →

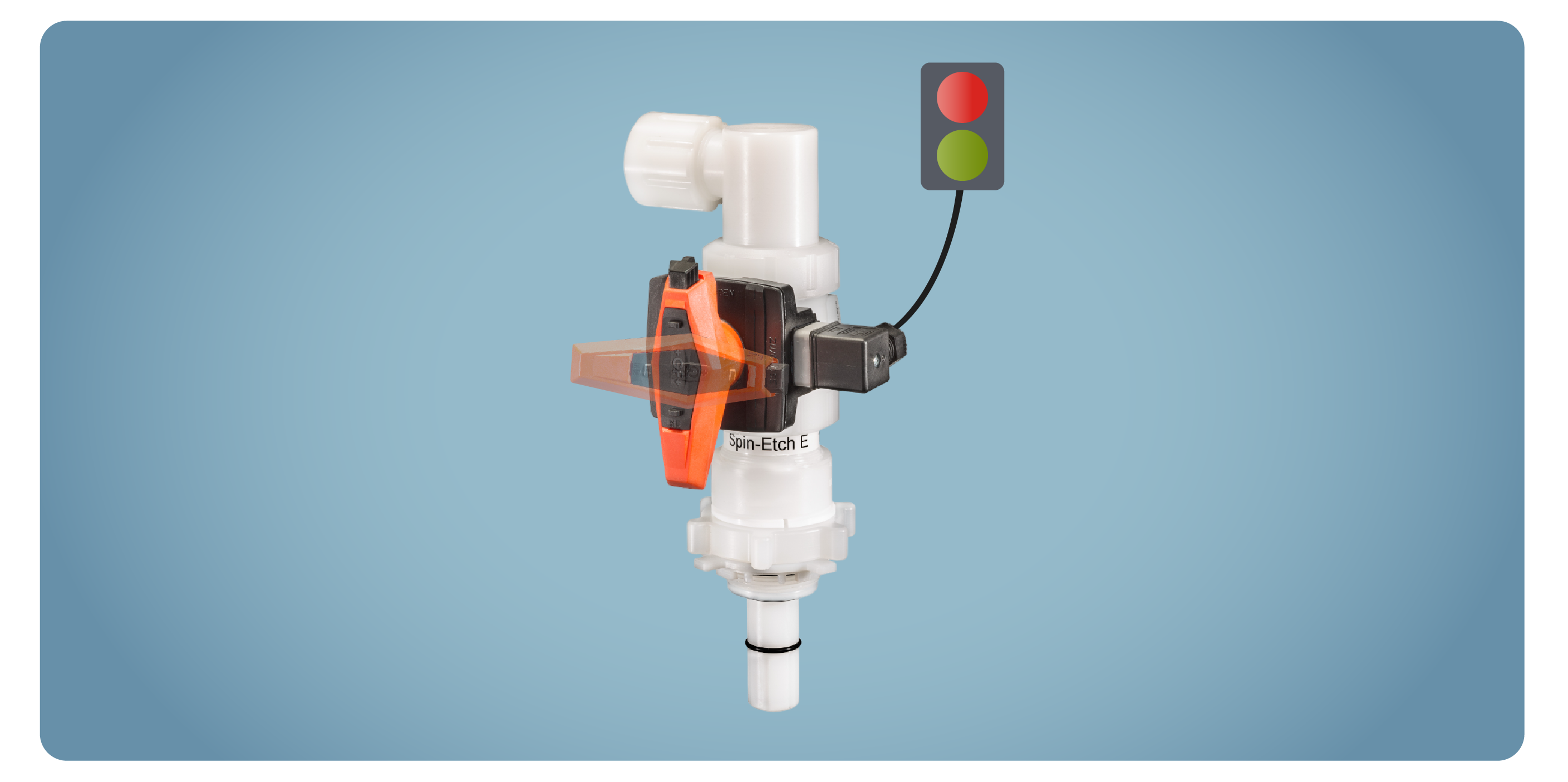

Ball valves with limit switch

G-Series Dispense and Fill Heads with a ball valve can be optionally equipped with a multifunctional module, which allows signalling when the ball valve is in the correct position....
learn more →
check resistance

This might also interest you

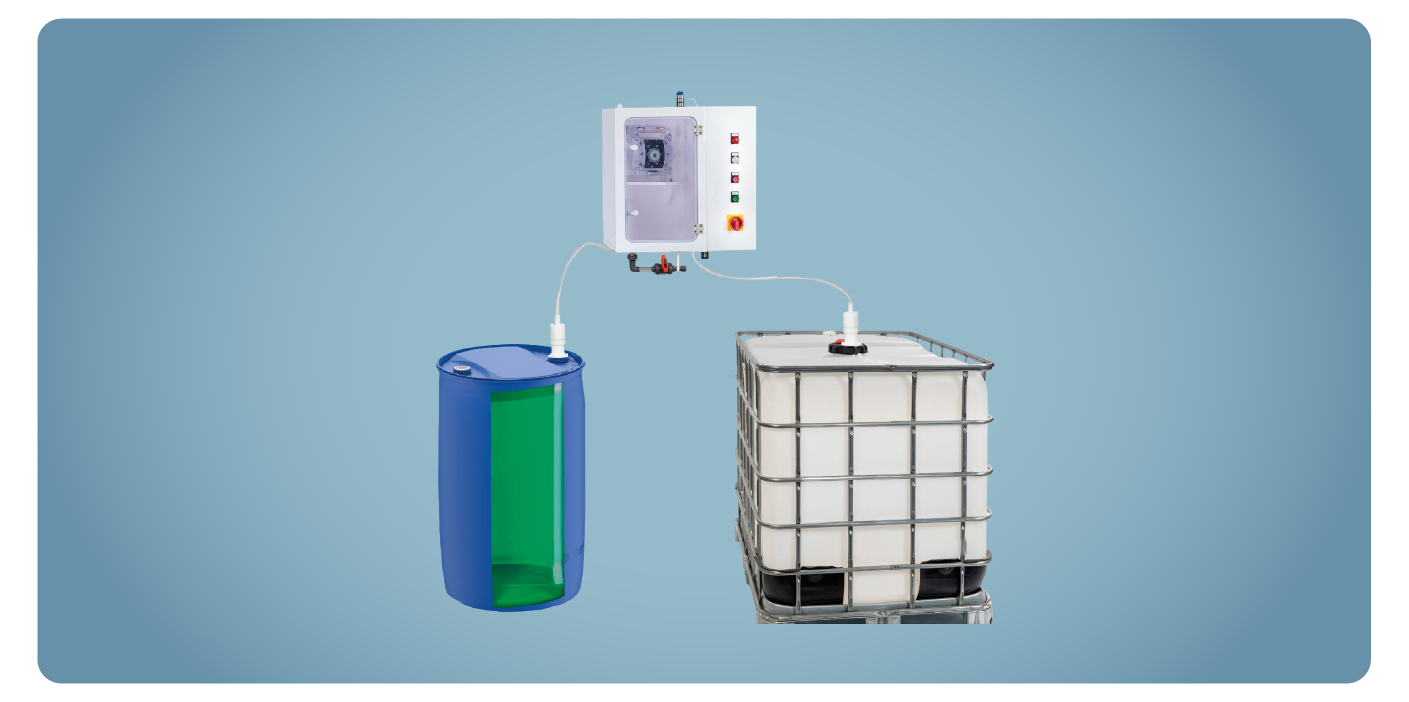

Ready-to-use complete systems
