Product lines Dispense and Fill Heads

G-Series

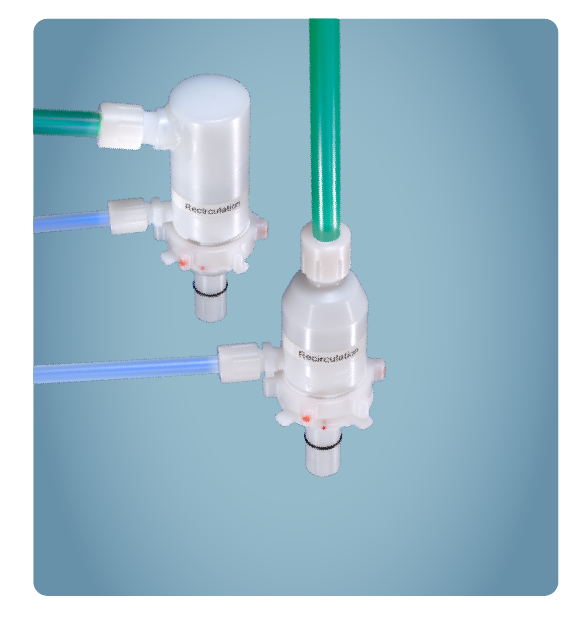

With a construction based on the QC2 product line, the larger design of the G-Series Dispense and Fill Heads enables even higher flow rates of up to 150 l/min.

Configurate it now!

Flow rate (max)

100 l/min
with check valve
150 l/min

mit Ball valve

Valves

Check valve
self-closing, made from fluoropolymer

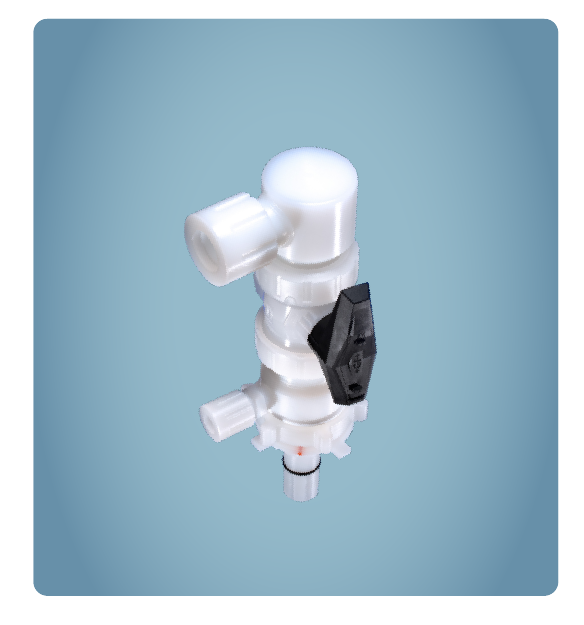

Ball valve
manual, made from PP or PVDF
with FKM seals (alternatively FFKM or EPDM)

Available Materials

High-purity
HDPE
PVDF
PCTFE

Elec. conductive

PP
PVDF
PFA

Seals

Standard
FFKM (Kalrez®)

Alternative

FKM (Viton®)
EPDM

Liquid-Connection

Vertical or horizontal
Flare 1/2", 3/4", 1"
Tri-Clamp
NPT (Female / male)
BSP (Female / male)
Hose Connector
Camlock

Vent-Connection

Vertical
NPT1/2" (IG)
Flare 3/8", 1/2", 3/4"

Corresponding dip tubes

"GT2"

Datasheet G-Series
Technical Information

Please visit our download center for further downloads and other languages. Resources > Downloads.

Options

Dispense Head with Integrated Bubble Sensor

Dispense Head with Integrated Bubble Sensor

Report empty status easily and fully automatically. Dispense heads with integrated bubble sensor enable automatic operation. Configure it now! Features: Signaling when the conta...
learn more →
Fill and Dispense Heads with Limit Switch

Fill and Dispense Heads with Limit Switch

Dispense and Fill Heads with built-in limit switch to signal the correct coupling with the dip tube. Configure it now! Features: Flexible applications: Signal of secure and tight ...
learn more →
Fill Head with Mixing Nozzle

Fill Head with Mixing Nozzle

Fill Heads with mixing nozzles allow an homogeneous mixing of chemicals without additional mechanical stirrers Configure it now! Features: Optimum mixing results in the shortest t...
learn more →
Fill Heads with integrated N2-blanketing port

Fill Heads with integrated N2-blanketing port

Fill Heads with additional second vent port allow nitrogen blanketing and filling of the container afterwards in a closed loop. Properties: In addition to the standard vent port, i...
learn more →
QC2 Dispense Head, electrically conductive

Electrically conductive Dispense and Fill Heads

Dispense and Fill Heads made from elec. conductive plastics, allow a safe handling of flammable chemicals in potentially explosive environments. Configure it now! Manufactured ent...
learn more →
Different manual turncocks

Manual turncocks

Manual turncocks in the Dispense and Fill Heads enable a variety of applications: Configure it now! Higher flow rates No flow losses due to check valve Can be used in both flow d...
learn more →
Ball valves with limit switch

Ball valves with limit switch

G-Series Dispense and Fill Heads with a ball valve can be optionally equipped with a multifunctional module, which allows signalling when the ball valve is in the correct position....
learn more →
